Circuit Board Continuous Skin Vacuum Packaging Machine of PCB Visual Packing Fully Automatic Six Stations Shrink PVC Film Sealer

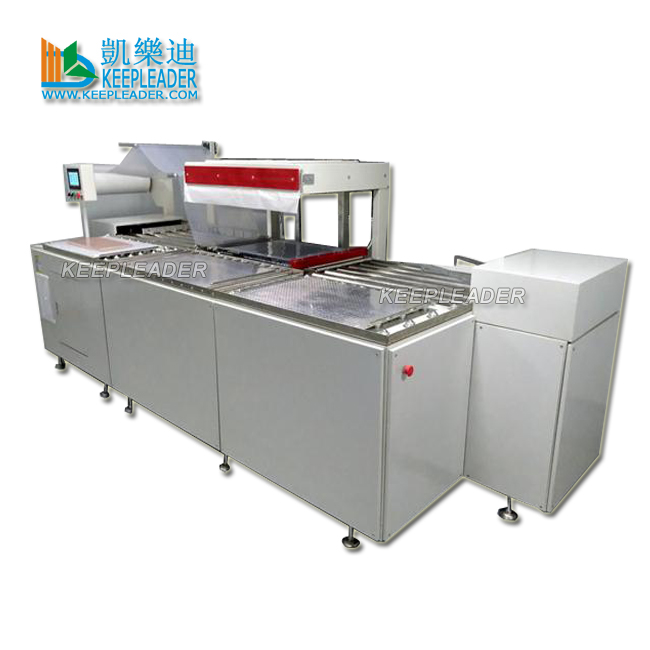

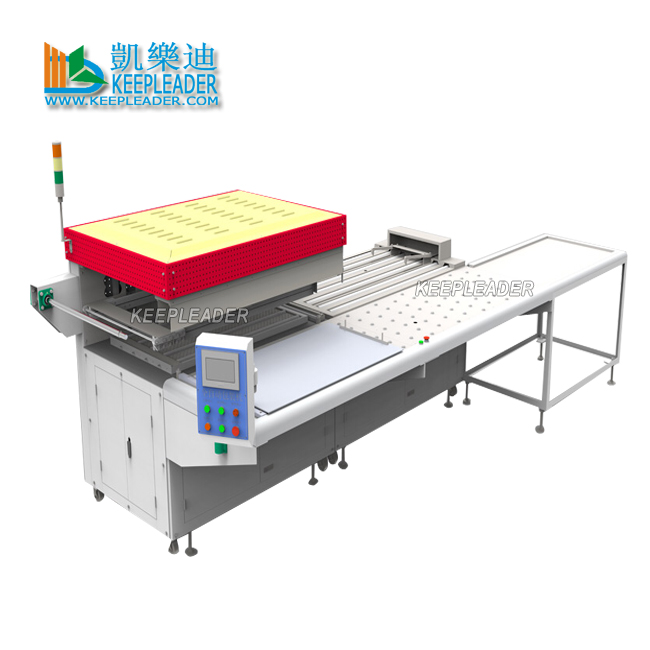

Circuit Board Continuous Skin Vacuum Packaging Machine

Circuit Board Continuous Skin Vacuum Packaging Machine is designed for high-volume production environments with dedicated items, this automatic skin packaging machine can automatically transmit the products through the packaging cycle and can be integrated with inline die cutting for maximum throughput, while highly efficiency, it require experienced setup and operation to maintain optimal performance as well as dedicated tooling for all items

Machine Description

Circuit Board Continuous Skin Vacuum Packaging Machine

01: Application

Circuit Board Continuous Skin Vacuum Packaging Machine is designed for high volume protective packaging application, this vacuum skin packaging machine incorporate an radiant panel heating system, controlled by digital temperature controllers for precise heat distribution, a porous conveyor belt, multiple turbine vacuum system for continuous vacuum as the board with parts travel over the vacuum area and a film pinch china for automatic film unwind, this Circuit Board Continuous Skin Vacuum Packaging Machine is a sturdy welded steel construction with removable panels for servicing, its maximum sealing width and length is customized on demanded productive capability, available options are inline roll die cutting machine, Circuit Board Continuous Skin Vacuum Packaging Machine is popular in vacuum packaging irregular products in industrial fields, such as hardware and tools: screw, bolts, drill bits, and small hand tools are prefect candidates for skin packaging, the packaging keeps the items organized and prevents them from shifting or falling out; electronics: consumer electronic likely earphone, and accessories are often packaged using skin packaging to ensure visibility and protection;automotive parts: from gasket to small replacements parts, the automotive industry replies on skin packaging for both retail and OEM distribution; retail and consumer goods: toys, beauty products, stationary, and other consumer goods benefit from the cost effective and protective nature of skin packaging

02: Parameter

03: Salient Characters

The whole machine adopts material steel, which is parched lacquer coated

Automatic feeding system achieve auto loading by exceptional porous roller chain

Film distance and conveyor belt of PCB are synchronously conveyed

Top foil automatic feeding, cutting, frame opening and outputting

Built-in Visual recognition system for monitoring, detection and recognition

Low-noise, and almost maintenance-free high performance turbine vacuum pump

Energy-saving heating with short warm-up time

Electronic control of heating distributor for consistent and effective heating process

Continuous and 1/10 second setting of the time parameter for reproducible results

Automatic function sequence after start-up

Automatic withdrawal of goods after each skin process

Automatic separation of pack from the skin film reel after each cycle

Functional sequence with programmable logic controller

Machine control by means of a comfortable touch panel

Mobile systems on lockable swivel castors

Loading table with integrated skin-board repository

Attached impact shears for trimming the finished packages

Automatic roller conveyor feeder is intelligent control without human intervene

Exceptional instantaneous glass electric heating tubes to improve heating performance

Reliable vacuum pump is strong, quiet and noiseless, suitable for long-term production

Can cooperate with assembly line operation to improve efficiency

With high-quality spare parts, stable and reliable performance

Flexible combine with other inline processing machine is PCBs packaging auto production

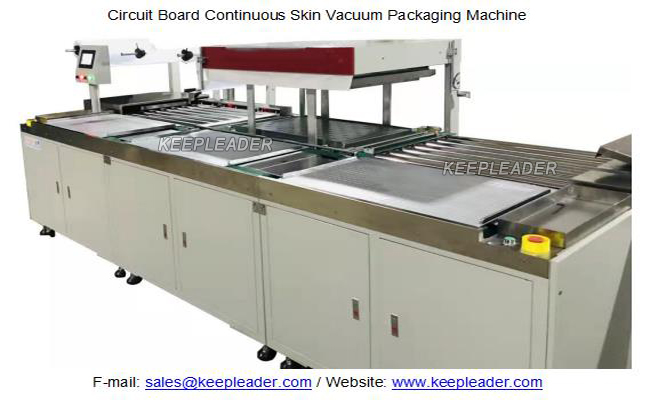

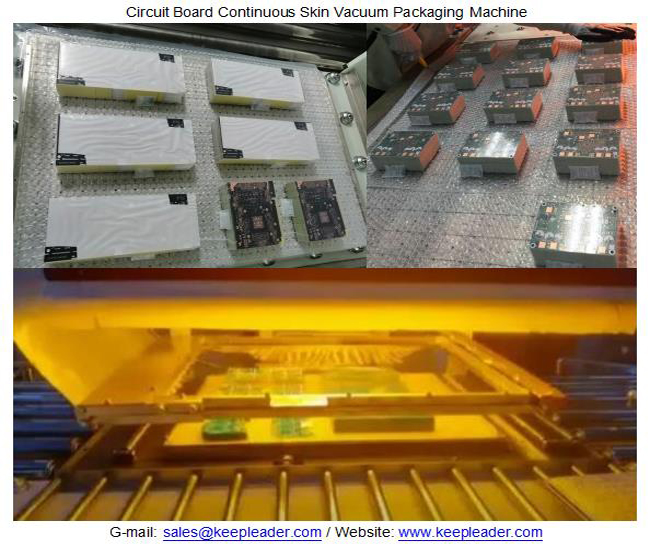

Detailed Image

Skin Vacuum Packaging Machine is specialized equipment used to secure a product onto a backing board by covering it with a clear, heat-shrinkable plastic film, this film tighly confirms to the contours of the product and seals to the backing material, usually a coated paperboard or cardboard, creating a skin-line enclosure, Circuit Board Continuous Skin Vacuum Packaging Machine is reliable solution in large-scale manufacturing environments of PCB packaging process, full automatic machine streamline the entire process from loading to sealing and cutting, this system supports high production speeds, reduced labor costs and superior repeatability

Machine Uses

Circuit Board Continuous Skin Vacuum Packaging Machine is a specialized industrial system designed to protect printed circuit boards from moisture, dust and physical damage during storage and transport, using a continuous porous stainless steel rolls, it automatically applies a vacuum-sealed plastic film over the PCBs, ensuring complete coverage and long-term preservation, this automatic skin packaging machine is ideal for high-volume electronics manufacturing environments, offering efficiency, reliability and consistent packaging quality, keepleader, we exemplify this technology with robust design and seamless integration into production line

Contact Us

Circuit Board Continuous Skin Vacuum Packaging Machine is a process used to pack and seal PCBs or other delicate, electronic components for shipping and storage, in this process, manufacturers of circuit boards, silicon waters, and other small electronic components will this kind of skin packaging machine to these products into durable, airtight pouches that will protect them from damaging elements when being shipped and handled by retailers and consumers, if you are looking for cutting-edge, commercial, vacuum packaging equipment, keepleader, we can design a reliable solution at affordable price, consult with our receptionist to gain authentication in every concerned factors
