Hot Foil Stamp Wire Marking Machine of Plastic Hose_Sleeve_Electric Cable Labeling_Coding_Marking_Printing Heat Pressure Printer

Hot Foil Stamp Wire Marking Machine

Hot Foil Stamp Wire Marking Machine adopts heat and pressure to achieve durable, indelible, imperishable high quality pigment foil markings onto wire, cables and plastic hose, shrinkable sleeves, this hot foil stamping machine offer precision, abrasion resistance and compatibility with various materials likely PE,PP, Nylon and etc, Hot Foil Stamp Wire Marking Machine utilize a heated printing wheel for consistent, long-lasting labels for industrial,medical, or branding application in wiring assemble, adjustable temperature and pressure settings ensure versatility across different wire types and marking needs marking/imprinting/coding

Machine Description

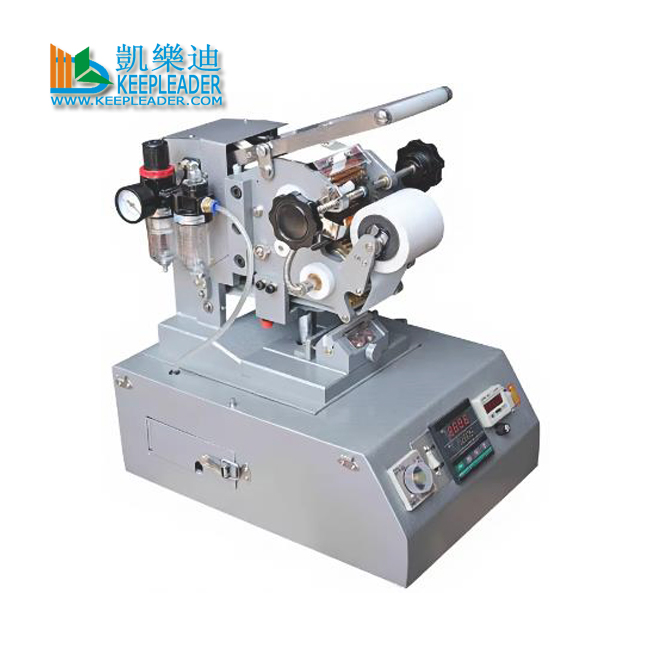

Hot Foil Stamp Wire Marking Machine
01: Application
Hot Foil Stamp Wire Marking Machine is designed for precise marking of wires, cable, tubing and a variety of
thermoplastic materials with diameter of 1.5~24mm, our Hot Foil Stamp Wire Marking Machine, the combination
of characters and character size can be selected freely within the specified range, during the printing process,
the preheated character wheel imprint the precision-engraved characters by pressing the pigment marking foil
into the insulation surface of wires/cables, the concave/curved form of the characters’ facet is exactly
matched to the diameter of the processed wires/cables, the precise adjusting options for the stamping pressure,
time and marking temperature allow for repeatability and accurate results, without changing the character wheels,
it is possible to achieve up to 40 characters long markings in alphanumeric string
02: Parameter
Title
Hot Foil Stamp Wire Marking Machine
Model
KLS-2040
Power Connection
220v,50hz Single Phase
Power Rating
80w
Compressed Air Supply
0.7MPa
Heating Control
Sensor Controlled Temperature: 90~180 Celsius Degree
Cable Minimum
1.5mm
Cable Maximum
24mm
Production Rate
0.5 Seconds per Marking (Depend on Time and Stroke)
Number of Printing Wheel
20 or specified within 44
Character Height
Horizontal: 1.5mm~3.5mm (vertical 1.5 and 1.6mm)
Signs per Printing Wheel
40
Available Signs
Letters: A~Z;Numbers:0~9; - / . (with one blank space)
Foil Diameter:
29/58/116mm*120m
Foil Consumption
Steplessly variable (adjustment to letter height)
Dimension
580 *380*400
Noise Level
<70 dB (A)
Net Weight
30kgs
Gross Weight
40kgs
CE Compliance
LVC and EMC Directive
KEEPLEADER recommends samples are submitted in cases where this is doubt as to the processing capabilities
of a particular Hot Foil Stamp Wire Marking Machine
03: Character
This hot foil stamping machine is less complicated and easy to maintain
Ability to label decorate both i both pedal valve and meters
Versatility in useless of wire,cable, shrinking sleeve, flexible hose,tube and sheath
Stroke adjustment to ensure maximum production rate basing on wire size
Large selection of character sizes and foils
Standard V-block wire guide allow marking on cable up to 24mm
Closed loop integral temperature controller
Rugged, heavy duty construction for the production environment
Less operation fatigue than a lever operated machine
Solid state dwell timer for better repeatability
Can be easily interfaced with wire processing machine, such as stripping and cutting
Capability of using engraving logo dies for customizing sleeve
04: Precaution
Product updates: Images and videos displayed may differ from current products due to ongoing design
improvements and updated
Optional accessories: some accessories and components shown in product photos/videos are optional
configurations and not included in the standard package, please order these items separately if required
Technical parameters: specification are for reference only/Equipment suitability depends on actual working
 condition, not just parameter comparison, please consult us to confirm compatibility for your specific application

Company Profile

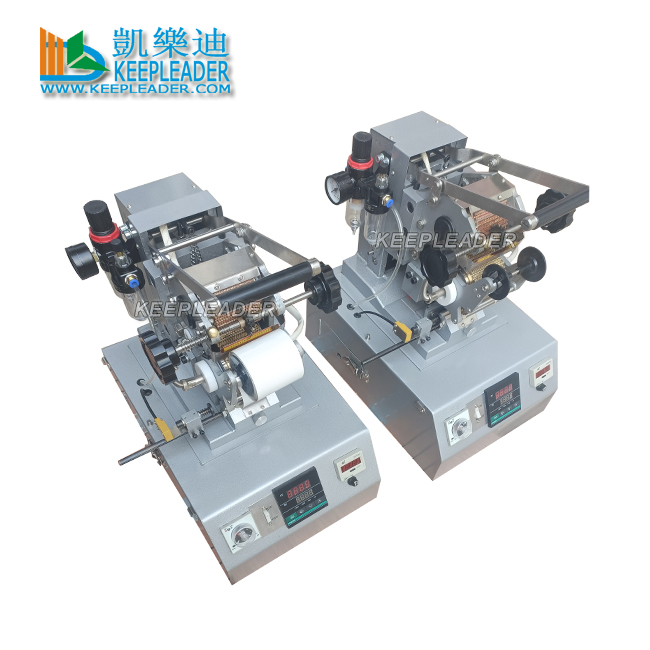

KEEPLEADER, our Hot Foil Stamp Wire Marking Machine is available in three optional configurations, manual lever,
pneumatic actuator and motor driving system to meet both your application requirements as well as your purchasing
budget, pneumatic and motor version both can be easily interfaced with wire processing machines and their small
footprint make them easily integrated into in-line auto production, the user has the ability to mark a wide range
 of materials including cable and wire, heat-shrink sleeve, and plastic tubing, another nice feature
of our Hot Foil Stamp Wire Marking Machine is the automatic foil feed which advances the foil after each
impression is stamped, our printers are capable of making wires/cables of diameter:1.5-24mm up
to large battery cables and multi-conductor cords, we can also custom engraved logos for when you are printing
blocks of text that don’t change

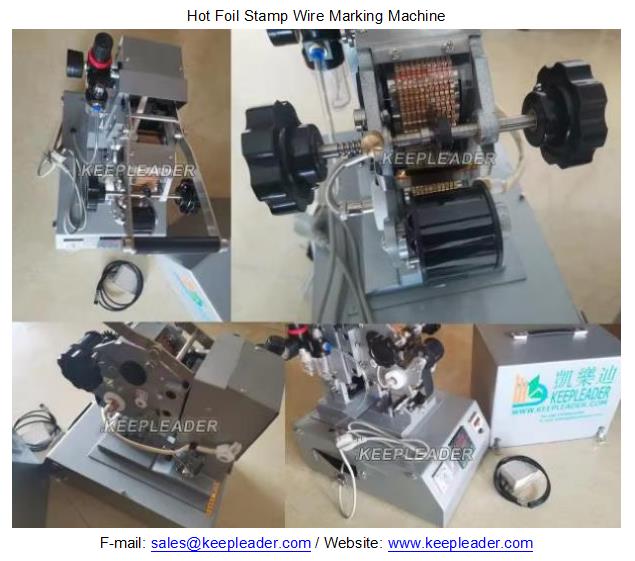

Detailed Images

KEEPLEADER delivers cable, wire, shrinking sleeve, hose, tube marking products that are sophisticated, innovative,
durable and user-friendly, this rugged, custom-built Hot Foil Stamp Wire Marking Machine delivers years of
problem-free service, require minimal maintenance and are virtually guaranteed to provide a lifetime of use,
our wide range of reliable custom-manufactured Hot Foil Stamp Wire Marking Machine can be operated
in conjunction with wire stripping, wire feeding and spooling device made by other companies.
Our Hot Foil Stamp Wire Marking Machine can be constructed to suit a customer’s specific application,
every machine can be personalized to the need of any business, any equipment and any application

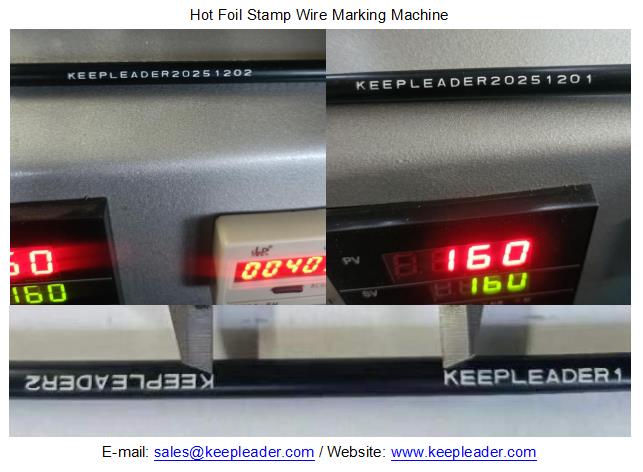

Machine Uses

Using wear-resistant pigment foils in in a variety of colors and qualities, keepleader’s machine will work with both
standard and custom character hot stamping printing wheels, the marks of our Hot Foil Stamp Wire Marking Machine
is easily legible, long-lasting, oil resistant, oil resistant, no-protruding, and they will never dislodge because
of pigment is dented into insulation surface of wire/cable

Contact Us

KEEPLAEDER perceives the wire and cable marking industry and the maintenance and production challenges you
face on day-to-day basis, the quality of our Hot Foil Stamp Wire Marking Machine allows us to stand behind
 them with confidence, the simplicity of our hot stamping machines make installation very quick and painless,
allowing you to focus on fulfilling your customer orders, our robustly designed Hot Foil Stamp Wire Marking Machine
will withstand the rigors of the production environment, giving you ten year of continuous service, if you should happen
 to have a problem with your Hot Foil Stamp Wire Marking Machine, please email us, let us deal promptly with any issue
 that may arise, let us take the hassle out of the wire can cable marking process, KEEPLEADER, we are always your
faithful cooperative partner
