Manual High Pressure Parts Washer Cabinet of Automotive Components_Engine Hand Water Washing_Blasting Aqueous Jet Spraying Booth

Manual High Pressure Parts Washer Cabinet

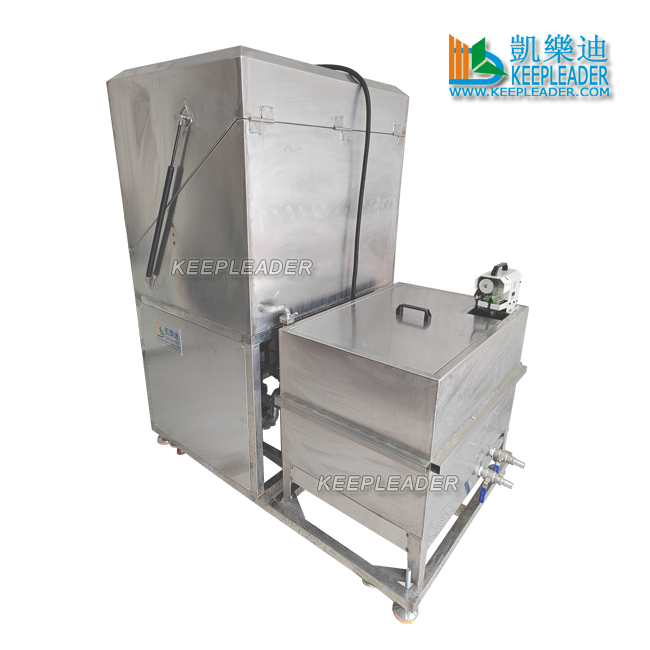

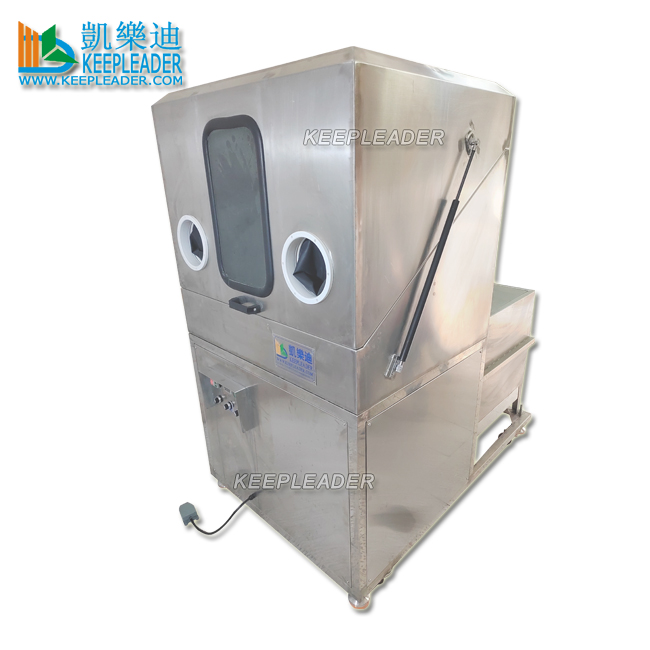

The Manual High Pressure Parts Washer Cabinet is built entirely with a 304 and 312 stainless - steel waterproof enclosure cabinet. It is designed for technicians who need to reduce cleaning time in small - or medium - volume batch cleaning.

The Manual High Pressure Parts Washer Cabinet uses a powerful piston - driven pump to blast parts clean with a heated aqueous solution at a temperature within 50 degrees Celsius. Standard features include an LED - illuminated cabinet, an ergonomic spray wand, a window - cleaning blower, neoprene gloves, thermostat - controlled heating, a liquid level sensor, low - water shut - off, a removable working tray, and gravity filtering of a communicating vessel integrated with an on - line filtering cartridge, as well as an auto oil skimmer.

Machine Description

Manual High Pressure Parts Washer Cabinet is a durable, stainless steel cleaning system, designed for industrial use, offering powerful pressure and heated aqueous cleaning,ideal for technicians, it efficiently removes grime and contaminants from parts while ensuring long-term reliability through corrosion-resistant material like 304 and 312 stainless steel, this Manual High Pressure Parts Washer Cabinet is operator-controlled, allowing precise handling of delicate or heavy-duty components without automated complexity, typical application includes aerospace and aviation maintenance; industrial manufacturing and machining;heavy equipment service and repair; automotive and fleet maintenance and precision components requiring targeted cleaning

Manual High Pressure Parts Washer Cabinet

01:Application

Manual High Pressure Parts Washer Cabinet is well suited for manufacturers looking to reduce manual cleaning improve consistency, and integrate washing operations into efficient production workflows, which are designed to handle a wide range of industrial cleaning tasks, common applications include: remove of machining oils, coolants, and lubricants; cleaning parts prior to finishing, coating and painting; pre-assembly and post-machining parts washing; batch cleaning of metal, components and assemblies; degreasing parts before inspection or quality checks; cleaning components integrated into automated work cells; supporting repeatable, standardized cleaning processes

02: Parameter

03: Characters
Closed cabin to prevent chemical liquids from harming the operator, environment

Customized washing programs for different parts and contamination levels

Allows for easy washing of large parts with specified working area

High Tank capacity offers uninterrupted washing

Efficient heating is reliable for consistent heating to remove stubborn dirt

Provide the optimal cleaning temperature with a thermostat

Made of Long-lasting and corrosion-resistant stainless steel

Reliable Electrical system to ensure safe and secure operation

Adopt Environmentally friendly solution,such as aqueous and detergent

Energy efficient and low maintenance design reduces operating costs

Precise and effective cleaning increase quality and performance

The jet blasting pressure is adjustable to gratify versatility

Foot pedal activated spray wand for operator maneuverable control

Heated aqueous cleaning solution for improved soil removal

Enclosed stainless cabinet reduces splash and mess

Manual air blow-off gun for post wash drying

Dual filtering system of accumulating vessel integrated with filtering cartridge

Gas-spring assisted door is convenient to open and close with hand

Brighter interior LED lighting is helpful for visual operation of targeted cleaning

Raised drain shelf above seal makes loading and unloading heavy parts easier

Fork truck/pallet jack ready, built-in mobility for easy relocation

Low liquid level protection protects pump and extends equipment life

Adjustable nozzle switches from a wide fan to a pinpoint jet

Illuminated cabinet and air-knife window cleaning technology

Digital temperature control can freely select specified heating temperature

One piece solid front operating door for full access to cleaning chamber

Built-in neoprene gloves protect worker’s hands from contaminants

Fluid is continuously filtered to trap chips and other solids to maintain efficiency

04: Buying Guidance

041: what should I choose a cabinet parts washer instead of a conveyor or rotary system?

Choose a Manual High Pressure Parts Washer Cabinet when you need enclosed, batch cleaning of small and medium parts, especially in high cleanliness requirements or components with intricate holes and design where you cannot clean with spray or ultrasonic cleaning along, if you production is continuous and high volume, conveyor system is better, for medium batches needing full rotation, a rotary basket machine might be ideal, Manual High Pressure Parts Washer Cabinet is the best fit for flexible, small-batch, enclosed cleaning.

042: What types of contaminants can a Manual High Pressure Parts Washer Cabinet remove?

A properly configured Manual High Pressure Parts Washer Cabinet can remove oils, grease, cutting fluids, light rust preventives, machining oils, coolants, lubricants and shop dirt, in Manual High Pressure Parts Washer Cabinet, heated detergent and strong spray impact work together to dislodge contamination from cavities, blind holes, crevasses and any other complex surfaces

043: Is Manual High Pressure Parts Washer Cabinet compatible with hot water and detergents

Yup, majority of modern systems are designed as heated parts washer cabinet using aqueous detergent as controlled temperatures, operating the unit as a hot water parts washer cabinet improves cleaning performance and reduces reliance on hazardous solvents while providing a safer environment for operators

044: Can Manual High Pressure Parts Washer Cabinet be used for automotive components?

Absolutely, we can tailor Manual High Pressure Parts Washer Cabinet with appropriate fixture, baskets and cycles if automatic programmable control is in need, auto rotary basket is specified for engine blocks, cylinder heads, brake, components, gearbox, and other vehicle parts, the enclosed spray wash cabinet keep workshops cleaner and provides more consistent results that manual washing

045: What should I look for when evaluating Manual High Pressure Parts Washer Cabinet

Beyond price, check build quality, material of construction, pump size, maximum blasting pressure, fluid flow rate per minute, heating capacity, insulation and access for maintenance, a good Manual High Pressure Parts Washer Cabinet should have robust door seals, easy-to clean filters, and sufficient tank volume, if upgraded with drying gun, extra filtration, oil skimmer, and intelligent control

Detailed Images

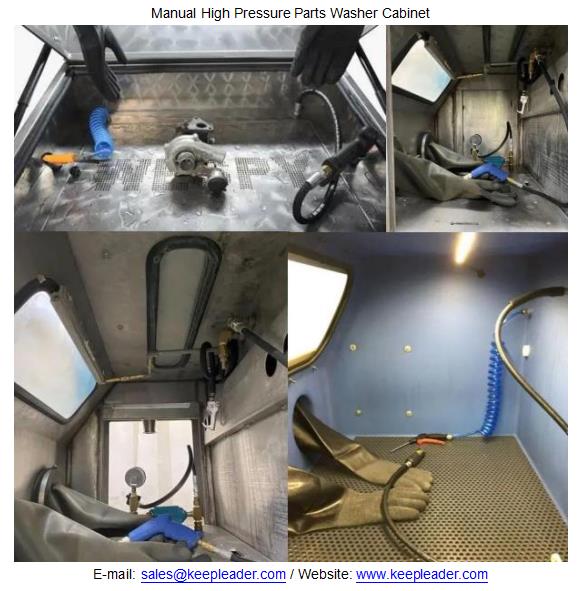

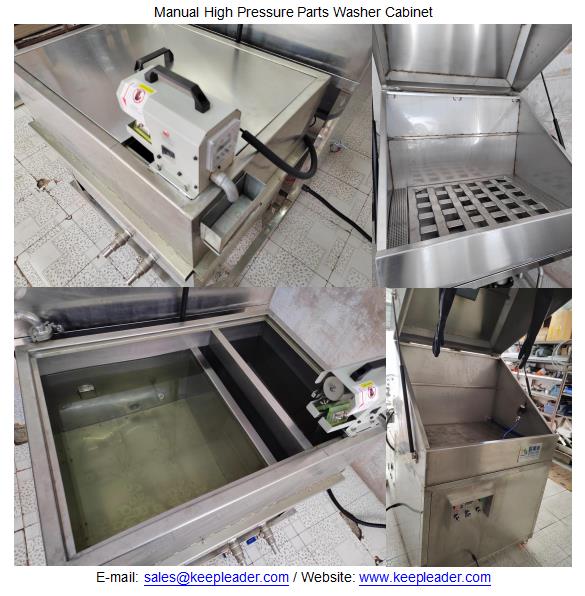

Manual High Pressure Parts Washer Cabinet is available in different sizes and configurations to achieve desired performance for washing parts of any shape and size, without using abrasive that could damage precision-machined parts, Manual High Pressure Parts Washer Cabinet gains the favor among the competitors because of its details orientation, such as well-lit cabinet with cleaning visibility, flexible neoprene gloves, ergonomic working height, versatile and practical washing accessories, adjustable flow pressure, self-contained jet spray blasting cabinet of full enclosure, independent filtering tank of communicating vessel for gravity filtering integrated with on-line sliding filtering cartridge, foot-switch actuator to fee hands and auto oil-skimmer

Machine Uses

Manual High Pressure Parts Washer Cabinet Is constructed from stainless steel making it suitable for heavy duty use in a wide range of industry application, unlike the manual solvent bath,Manual High Pressure Parts Washer Cabinet offers an enclosed cabinet design to ensures drips and splashes are contained, allowing you to maintain the clean and safe work area,Manual High Pressure Parts Washer Cabinet includes a flow brush, which is in conjunction with its standard 10~50 bar pump, quickly and efficiently cleans heavy contamination, like carbon, grease, oil and miscellaneous debris, particularly to remove the particles entrapped inside of crevasses) from hard to heat to reach crevices,Manual High Pressure Parts Washer Cabinet is designed for use with range of biodegradable low foam detergents and heating aqueous, vastly improving your environmental-friendliness in parts washing cycles, the significant benefits of Manual High Pressure Parts Washer Cabinet is obvious, such as powerful, non-abrasive, solvent-free cleaning to scrub parts clean without damage to precision machined parts; better targeted cleaning to effectively flush out blind holes, crevasses. Threads and passageways; lower volume of water used, less cleaning detergent use, sustainable manufacturing and cleaning processes, less energy consumption, zero-exposure for operators in safe and health working environment

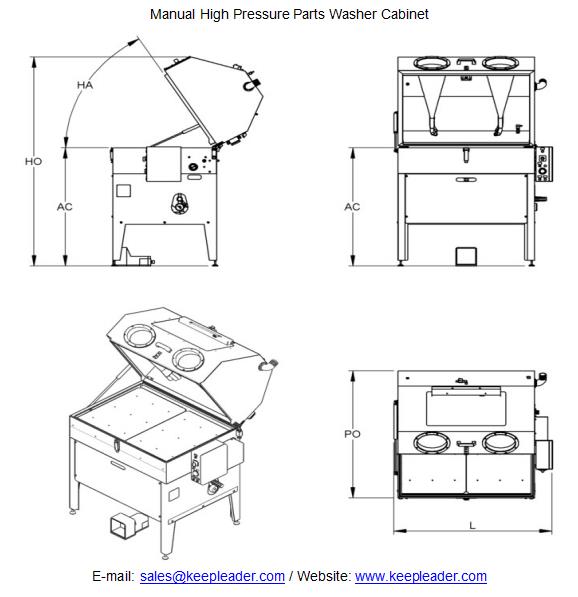

Schematic Diagram

Manual High Pressure Parts Washer Cabinet is a self-contained high pressure jet spray blasting cabinet, which is enclosed, the user puts their hands into the neoprene glove, from this water-proof accessible port to activate the spraying brush in applying maneuverable targeted blasting process, this is designed for cleaning of small, complex components with high pressured water, the foot-switch operated pump allows for hands free cleaning, providing better control to the operator, the high flow rate pump provides outstanding performance for perfect cleaning results, the machine is also equipped with in air gun for drying the parts after jet blasting, providing a fantastic end result, water is heated by an efficient heating system, this heated water increases washing quality and insulated washing tank reduces energy consumption, the degreasing cabinet is well illuminated by LED Lights, monitoring is provided through glass and an air knife cleaning system which ensures continuous excellent visibility during washing operation, inside the high pressure manual degreasing cabinet there two two stages of filtering, the first filtering is done through the independent gravity filtering tank with communicating vessel, the second filtering is done through a finer filtering cartridge, in addition, oil skimmer is integrated to continuously remove the floated oil from the filtering tank, a digital display shows the operating temperature for optimal cleaning performance and a pressure meter shows the pump pressure continuously, Manual High Pressure Parts Washer Cabinet is designed for washing with liquid detergents at a temperature of up to 45 Celsius Degree with a water pressure of 60Bar, all made of stainless steel, and suitable for washing small and medium-sized parts

Contact Us

Keepleader, we’ve perfected the art of Manual High Pressure Parts Washer Cabinet, our dedication has led us to the best and most reliable manufacturer on the market, so, when you order a Manual High Pressure Parts Washer Cabinet from keepleader, you can rest assured you’re getting the absolute best in every respect, our team is ready to hear from you to design a Manual High Pressure Parts Washer Cabinet that will do everything you need, and improve your process, get a quote from us today, and find out how we’ve earned our reputation
