Filter Housings Fusion Spin Welding Machine of Bottle Cap_Reservoir Lids_Thermal Cups Circular Joints Rotational Friction Welder

Filter Housings Fusion Spin Welding Machine

Filter Housings Fusion Spin Welding Machine is generally used to weld two circular thermoplastic plastic parts, particularly for semi crystalline, likely Nylon, PA,PP,PE and POM, which is not easy to weld by ultrasonic vibration bonding,during fusion, one half is locked on the bottom fixture, and the other half rotates on the surface of fixed part, the Filter Housings Fusion Spin Welding Machine has a certain pressure acting on the penetration of two halves, and the heat caused by the friction at two joining interface can met the contact surface of two halves and form a forbidden and hermetic combination, pneumatic cylinder driven activation adopts inertia force generated by braked motor, which control collapse distance/melting depth in combination of mechanical stop in case of without considering angular orientation

Detailed Images

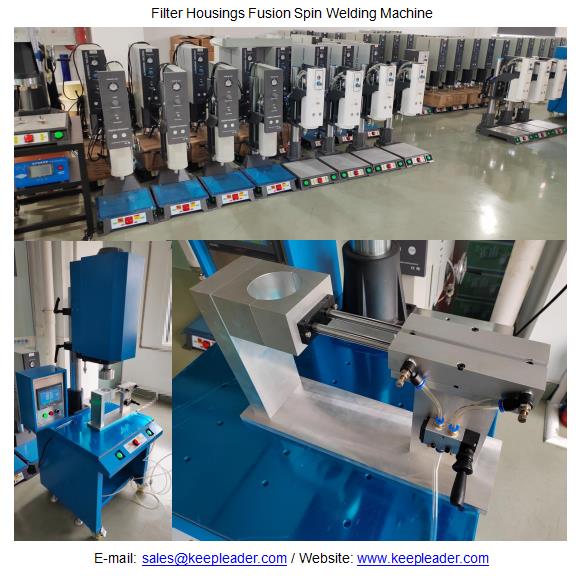

01: Productive Scenario

Filter Housings Fusion Spin Welding Machine is a form of friction welding specially designed for thermoplastic material, particularly for semi-crystalline, likely PP,PE,PA, which is not easy to weld by ultrasonic vibration,  this process involves rotating one part against a stationary part under axial pressure creating friction at the joining interface, in where, two halves have penetration of melting collapse, the resulting heat melts the surface, allowing the to fuse together once the rotation ceases, this method is particularly effective for circular/round joints, and is known for producing strong, hermetic seals, making it a preferred approach in application, when durability and waterproofing are critical, such as automotive: fuel system filtration, air duct, filter bowls, and oil fill tube component; appliance: water valves, refrigeration water filtration and toilet components; irrigation system: sprinkler components; beverage: dispensing, beverage cups; medial syringes

02: Detailed Attributes

03: Working Principle

All formats of Filter Housings Fusion Spin Welding Machine on the principle of heat-induced fusion between separate materials, Filter Housings Fusion Spin Welding Machine generates this friction by rotating one part into a fixed second part while applying pressure between both halves, creating a shearing friction of localized heat at the contact interface between the two materials, Filter Housings Fusion Spin Welding Machine serves round parts that can be rotated at high velocity, as lateral force is applied between shearing interface, the heated joint blends together, co-mingling the molecular structure of both pieces into one, once the joint is fused, force is removed, the now singular part is allowed to cool, and the sin welding process is complete, the machinery used to produce spin welds often look like a lathe or drill press, the former rotating parts about a horizontal axis, and the latter about a vertical access, aside from their orientation, Filter Housings Fusion Spin Welding Machine typically comes in of of two drive styles, inertia spin welder and continuous spin welder, inertia welders reply on the kinetic energy of a flywheel to rotate parts together, whereas a continuous welder uses a coupled motor slowed by mechanical brake, inertia welding is great for sensitive parts that can be damaged by applied rotational force during the welding process, continuous welding is more advanced and offers complete rotational control throughout the welding cycle, but a higher cost and with the complexity of the additional braking system, in all cases, Filter Housings Fusion Spin Welding Machine can be powered by electric/servo or pneumatic motors,which depends on your stipulation upon angular orientation

04: Prominent

Programmable logic control with touch screen to reset the data and monitor working status

Motorized spinning actuator is driven to press down with brake/clutch

Password protection of setup parameter

Integrate design eliminates cables and makes installation more compact

New mechanical, electrical and pneumatic designs

Robust standing frame to apply pressing force without backward tilt

Pneumatic clamping fixture to fix the stationary in generating opposite resistance

Compact structure of floor-standing to save the working space

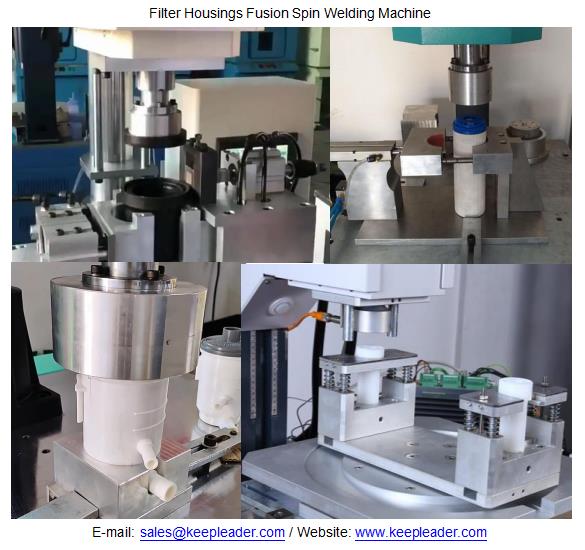

Detailed Images

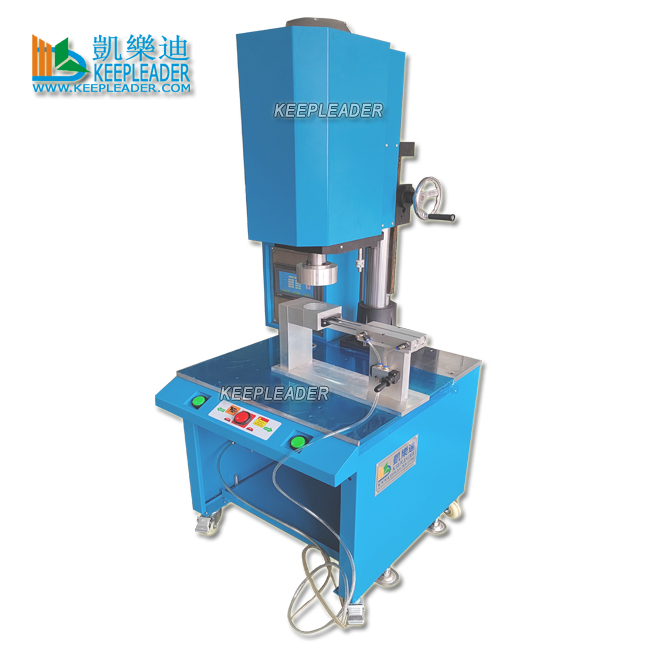

Filter Housings Fusion Spin Welding Machine is the version of pneumatic driven,floor-standing sphere/round/circular shaped plastic welder, which is easy in commissioning, step1: the two halves plastic parts to be welded are loaded into the machine, typically top half into the spin actuator, and the other half into a stationary clamping fixture;step 2: after a cycle is initiated, the spindle descends toward the fixture while simultaneously accelerating to the programmed weld spin speed;step3: after the two halves come into contact with each other, the spindle continues to rotate at a constant speed while the press forces the parts together, causing the interface to melt, the spinning stops once the programmed condition for ending the weld is met, such as reaching the programmed part collapse distance;step4: once spinning stops, the hold phase follows, typically consisting of dynamic hold and static hold, during dynamic hold, the press is advanced to further collapse the parts while the plastic material is still molten, during static hold, the press position is maintained while the material cools and solidifies;step5:the spindle retracts, the two halves are now intermingled as if molded together and are removed from machine as one assembly

Machine Uses

Filter Housings Fusion Spin Welding Machine is designed for joining filter housing through frictional heat generated by rotational motion, common application include sealing filter housings, assembling caps, reservoirs, and round enclosures in the automotive, medical and consume goods industries, the benefits of Filter Housings Fusion Spin Welding Machine extends across various sectors, enhancing production efficiency and product quality, here are the primary advantages, such as high bond strength: Filter Housings Fusion Spin Welding Machine creates robust joints that withstand significant mechanical stress, this is especially important in industries like automotive and medical devices, where reliability is non-negotiable;speed and efficiency: with rotation speeds reaches up to 1600RPM, Filter Housings Fusion Spin Welding Machine reduces assembly times, improving overall production efficiency,usually the cycle speed is within 1 second;versatility: the technique can be used on a wide array of thermoplastic, including polypropylene, an polyethylene, making it applicable in diverse manufacturing environments; precision:Filter Housings Fusion Spin Welding Machine offers high levels of accuracy, allowing for intricate designs and complex geometries without compromising on joint integrity;cost-effective: compared to other welding approaches,Filter Housings Fusion Spin Welding Machine often requires less energy and fewer materials, resulting in lower operational costs

Contact Us

Keepleader, as a true manufacturer, we ensure higher quality control, fast response and professional support, our Filter Housings Fusion Spin Welding Machine comes with consistent service from production to after-sales, giving clients a more stable and dependable cooperation experience; our Filter Housings Fusion Spin Welding Machine adopts trusted components, which are well-known band and support oversea supplying chain for further local replacement, saving time and reducing maintenance effort; from entry-level to high-end models, our Filter Housings Fusion Spin Welding Machine suits all needs and budgets, clear classification and pricing let customers select the right configuration with confidence and no hidden costs; our Filter Housings Fusion Spin Welding Machine is CE certificated and backed by strong research and development,we deliver safe, innovative, and performance-driven solution for demanding industries worldwide, try to consult our sales representatives to find diversities we can do for you
