Hand Held Plastic Spot Welder with Manual Arbor Press Accessory of PP_PET_ABS_PS_PC Welding_Riveting Ultrasonic Welding Machine

Handheld Plastic Spot Welder with Manual Arbor Press Accessory

Hand Held Plastic Spot Welder with Manual Arbor Press Accessory

Handheld Plastic Spot Welder with Manual Arbor Press Accessory employs ultrasonic vibration energy to melt the thermoplastic, then complete bonding solidification, during its process, high frequency electronic system will be converted to high frequency mechanical vibration, through welding mold to the plastic joining interface, cause the plastic joint sharp friction melt, achieved the plastic body joint surface between plastic flow of material, instantaneous agglutination process

Machine Description

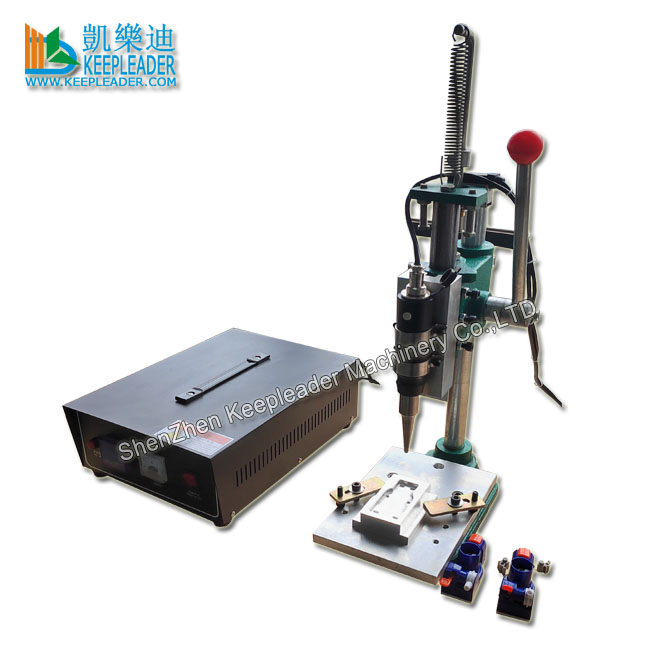

Handheld Plastic Spot Welder with Manual Arbor Press Accessory

01: Application

Hand Held Plastic Spot Welder with Manual Arbor Press Accessory turns you hand grip ultrasonic plastic spot welder into versatile manual welding system with arbor press to apply melting pressure, this arbor press plastic spot welder can be used for prototypes, short run production, and many repair applications, the ultrasonic energy is conveniently activated by a triggering Switch built-in the head that actuates just prior to contacting the part, this press when coupled with a hand welder is a very low-cost way to ultrasonically spot weld, insert, embedding, retrofitting, reforming, mosaic or stake plastic parts

02: Parameter

Name

Handheld Plastic Spot Welder with Manual Arbor Press Accessory

Model

KLC-28KHZ

Generator Power

300~800w

Ultrasonic Frequency

28khz

Connecting Voltage

110v,60hz or 220v, 50hz specified

Time/power/energy SW

Have

Amplitude Range

Adjustable 70%~100%

Welding Diameter

Within 15mm

Welding Time

0.01~9.99 seconds

Function

Retrofitting, Reforming, Spot Welding, Inserting, Embedding

Weight

38kgs

03: Salient Character

Cast Aluminum machine base with adjustable mounting slot

Tubular steel column, that is durable and reliable in applying pressure

Locking column clamp with tightening handle for easy course head height adjustment

Steel stop collar with threaded screw for fine finished head height adjustment

Ultrasonic start switch mounted to the head that activates just prior to contacting part

Light weight, compact structure, and robust construction for longevity

Simple design, save time, energy and money on utilities

Utilizes advanced technology for performance and consistency

Automatic frequency tracking system, no manual tuning frequency

Unique appearance design, all steel shell, all aluminum dissipation

Time setting, overload alarm, frequency deviation alarm, frequency current display

Strong power, up to 800w can be continuous or pulse work, suitable1~15mm spot welding

Equipped with super folding gray industrial-grade cable, that is soft folding resistance

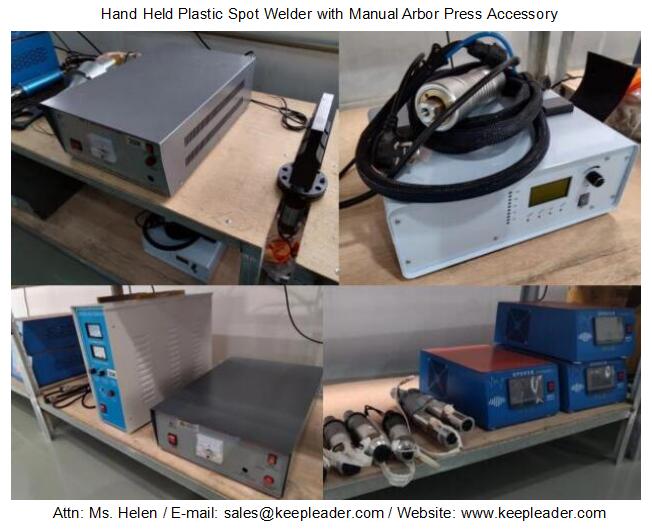

Detailed Images


Hand Held Plastic Spot Welder with Manual Arbor Press Accessory

Hand Held Plastic Spot Welder with Manual Arbor Press Accessory is regarded as reliable solution in assembling parts, where production volume does not justify more expensive pneumatic actuator, hand grip pressed or servo driven ultrasonic plastic welder, particularly for hand grip spot welder, it provides a more controlled motion of the welder that what is possible by just holding the hand gun, resulting in more consistent assembling, this Hand Held Plastic Spot Welder with Manual Arbor Press Accessory is available with a foot switch or cam actuation the trigger handle is removed from the hand gun housing when the foot switch actuation is used, the ultrasonic frequency is optional in 15khz, 20khz, 28khz, 35khz, in addition, its stunning designation stands out of competitors, likely flexible ultrasonic handgun collar adapter; vertical adjustable head; steel tooling plate; deepening throat depth and adjustable head stroke; spring return lever arm; angle iron column support; through holes for work bench mounting; adjustable and positive stroke stop block, X-Y pattern next fixture

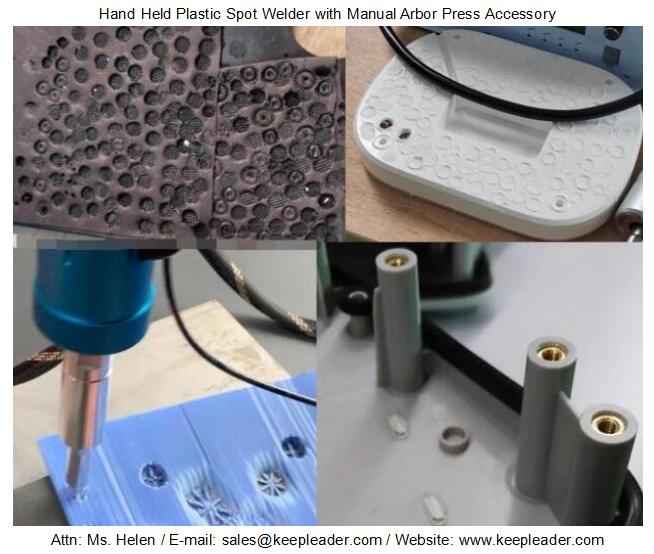

Machine Uses


Handheld Plastic Spot Welder with Manual Arbor Press Accessory

Hand Held Plastic Spot Welder with Manual Arbor Press Accessory has simple structure, but can execute reliable welding process, which appears in many plastic assembling field, through the replacement of ultrasonic welding horns can be used for mosaic, riveting, spot welding, embedded edge, non-woven fabric masks, nylon mesh, PVC, TPU, plastic columns, ribbon and other processing technology, Hand Held Plastic Spot Welder with Manual Arbor Press Accessory is widely used in the apparel industry, the trademark industry, the automotive industry, plastic electronics, household goods industry, clothing industry: underwear parts needle before the process, the ribbon elastic belt welding, trademark industry: weaving mark, door noise cotton, wiper seat, engine cover, water tank cover, plastic electronic: small plastic pieces, riveting and so on, household goods industry, fiber cotton spot welding and so on

Contact Us


Keepleader, we dedicate in plastic assembling, retrofitting, reforming, connection and related industrial process, and treat our customer like partners and take a consultative approach to discovering their unique stipulations: step one: we work with you to understand your needs and processes; step two: we assess you situation and test products based on our expertise and your welding requirements; step three: we present a solution that is effective and efficient for you, Hand Held Plastic Spot Welder with Manual Arbor Press Accessory justifies its simplicity and convenience in operation, and reliability and durability in resulting in gratification, we qualify bespoke fabrication, that definitely obey your stipulation, specification and expectation, please dont hesitate to consult us to obtain more participation on your individuality

 Attn: MS Helen

 E-mail: sales@keepleader.com

 Cellphone: +86 13590415784(Wechat/WhatsApp)

 Tel: +86 755 84190358

 Website: www.hfwelds.com / www.keepleader.com
