Handheld Ultrasonic Welder for Plastic Spot Welding Probe of PP_PE_Nylon Belt Ultrasound Point Bonding_Soldering_Sealing Machine

Handheld Ultrasonic Welder for Plastic Spot-Welding Probe

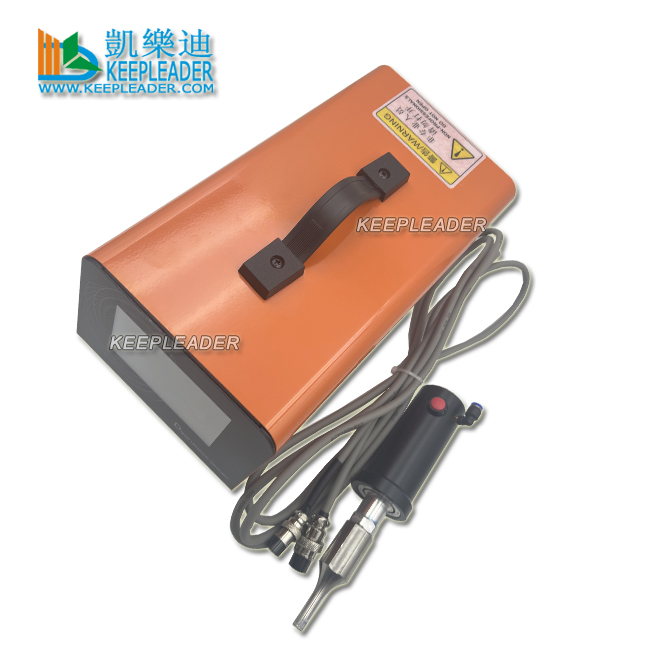

Handheld Ultrasonic Welder for Plastic Spot Welding Probe

Handheld Ultrasonic Welder for Plastic Spot Welding Probe has compact and novel portable design, that is paramount in maneuverable scenarios, its working principle is the same with universal ultrasonic welder, when an ultrasonic wave acts on the thermoplastic contact surface, it will produce tens of thousands of time of high frequency vibration per second, this high frequency vibration reaches a certain amplitude, through the upper welding parts, the ultrasonic energy is transferred to the welding area, and because of poor thermal conductivity of the plastic, it cannot be distributed in time and gathered in the welding area, which causes the contact surface of two plastic to melt rapidly, after adding a certain pressure, it will be fused into one, when the ultrasonic wave stops acting, the hand pressing is continue for split second so that it solidifies and forms, so as to form a strong molecular chain, to achieve the purpose of welding, reforming, connecting, sealing, the welding strength can be close to the matrix material

Machine Description

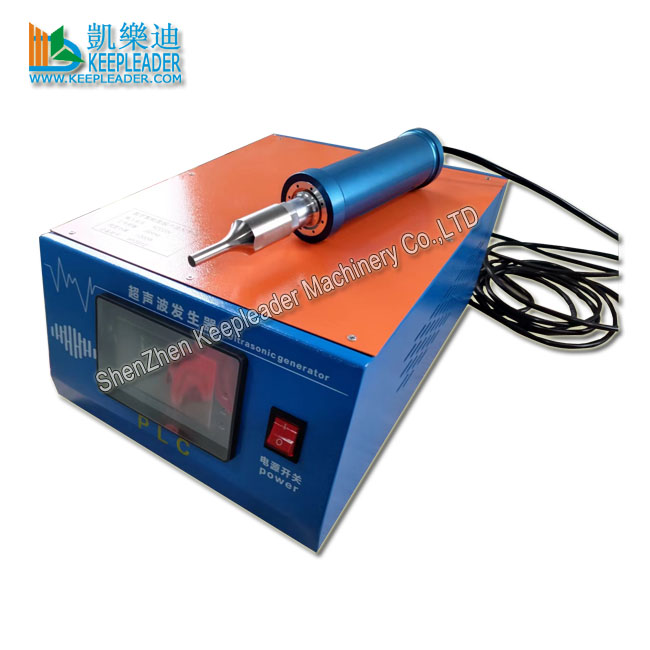

Handheld Ultrasonic Welder for Plastic Spot Welding Probe

01: Application

Handheld Ultrasonic Welder for Plastic Spot Welding Probe applies for spot welding, pressure welding, riveting, marking, sealing, screw embedding, applique welding, swagging, reforming, cutting, edge trimming and other processes, has good weldability on solid object and fabric cloth made of PVC, ABS, PP, PE, PS, PC, PMMA, PETG and APET and other amorphous and semi-crystalline thermoplastic, they are popular in plastic assembling, connection field in electronics, electric appliances, auto parts, packaging, medical, non-woven clothing, stationary daily necessaries, plastic toys, sporting goods, communications, car interior decorative linear, upholstery, PP/PVC manure belt, conveyor belt, bumper, soundproof cotton, waterproof board, mask non-woven cloth, Nylon fabric, fishing box and other industrial plastic assembling, bonding, connection and reforming

02: Parameter

Name

Handheld Ultrasonic Welder for Plastic Spot Welding Probe

Model

KLC-5035

Ultrasonic Power

500w

Ultrasonic Frequency

35khz

Electric Connection

110v,60hz;220v,50hz

Time/Power/Energy SW off

Yes

Amplitude adjustable

Programmable 70~100%

Savable Weld Programs

16

Acoustic Material

Titanium

Qty of ceramic ring

4

Probe Weight

0.9kg

Connect Screw

M8

Ambient Temperature

+5~+50ºC

Storage Temperature

-5~+70ºC

Welding Area

1~12/1~15mm

Max Working Current

15A

Welding Time

0.1~10s

Operation Control

Finger SW or Foot Pedal

Ultrasonic Horn

Made to order

Dimension

320*280*128mm

Weitht

10kgs

03: Salient Character

Auto-tuning ultrasonic frequency between transducer stack and ultrasonic generator

Adjustable amplitude from 50%~100% with digital control

Auto frequency and power displayed after each processing cycle

LCD multi-function display, programmable logic control with touch screen

Overload, protection, short circuit power cutting-off to protect equipment

Novel portable structure design, quick and convenient operation and movement

Handgrip operation, flexible and practical simple operation

Unique appearance, all steel shell, all-aluminum heat dissipation

Time setting, overload/frequency deviation alarm, frequency, current display

Power intensity is adjustable to gratify maximum welding diameter within 15mm

Equipped with super folding gray industrial-grade cable for flexible safety

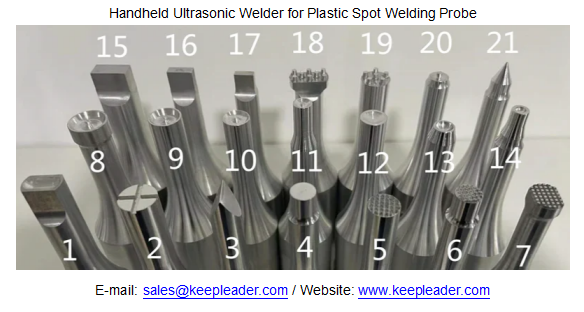

Handheld Ultrasonic Welder for Plastic Spot-Welding Probe has customized ultrasonic horn, that support quick-change

Detailed Images

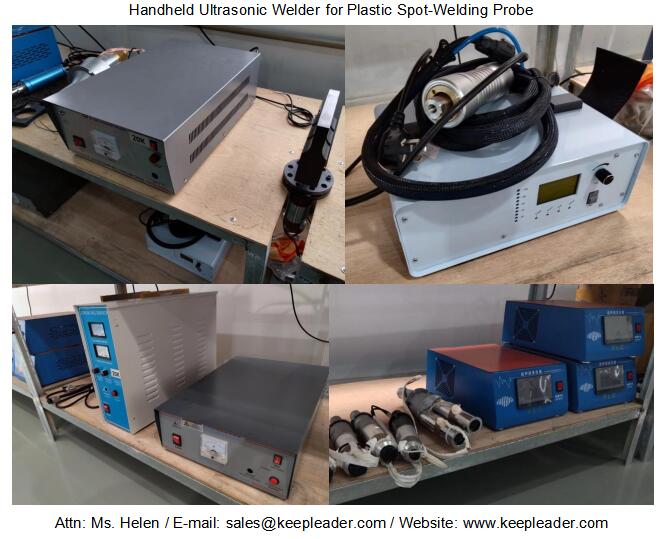

Handheld Ultrasonic Welder for Plastic Spot-Welding Probe

Handheld Ultrasonic Welder for Plastic Spot Welding Probe applies in numerous manual assembly operation to bond, reshape, reform, tear-off cutting, or mold materials, typically used as a handheld plastic spot welding, Handheld Ultrasonic Welder for Plastic Spot Welding Probe presents in industries including consumer goods, electronics, and staking, its salient traits increase recognizance, such as save time, energy and money on utilities; lightweight and maneuverable for easy of utility; utilizes advanced technology for performance and consistency; intelligent ultrasonic generator; ergonomic design and low weight of handheld ultrasonic welder guarantee fatigue-fee work without major modification or rewiring and maintenance cost-efficiency

Machine Uses


Handheld Ultrasonic Welder for Plastic Spot-Welding Probe

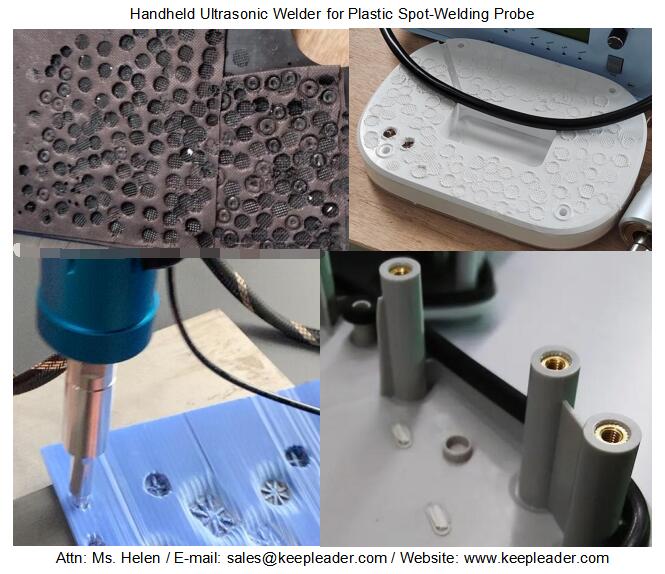

Handheld Ultrasonic Welder for Plastic Spot Welding Probe has applicable popularity, likely electronic appliance, automobile accessories, garment packaging, textile industry medical equipment, toy industry, stationary, PP PE conveyor belt, non-woven fabric, dashboard, sound insulation, cotton bumper footwear, waterproof board, fecal belt, eggs collection belt, communication equipment and other industries

Contact Us


Keepleader is one high tech manufacturer who dedicates in technology development, fabricating and sales service of ultrasonic equipment, we improve our customers competition and creates value by quality products and excellent service, we adhere the business philosophy of customer first, teamwork self-breakthrough with development concept of market, with service concept of start with customer demand and end with customer satisfaction we supply Handheld Ultrasonic Welder for Plastic Spot Welding Probe and best ultrasonic welding service

 Attn: MS Helen

 E-mail: sales@keepleader.com

 Cellphone: +86 13590415784(Wechat/WhatsApp)

 Tel: +86 755 84190358

 Website: www.hfwelds.com / www.keepleader.com
