Sonic Plastic Welder Auto Turntable Ultrasonic Welding Machine of 20k Automatic Rotary Plate Ultrasound Seam Soldering Equipment

Sonic Plastic Welder Auto Turntable Ultrasonic Welding Machine

Sonic Plastic Welder Auto Turntable Ultrasonic Welding Machine

Sonic Plastic Welder Auto Turntable Ultrasonic Welding Machine operate by inducing ultrasonic frequency in plastic components that is converted into heat between the welded plastic laminated, frictional heat is produced so that thermoplastic parts melt and an insoluble connection between parts is forged in a very short period of tome, the melting pints of both working pieces is nearly equivalent which helps to form a uniform weld area, the welded area is usually as strong as the matrix material

Machine Description

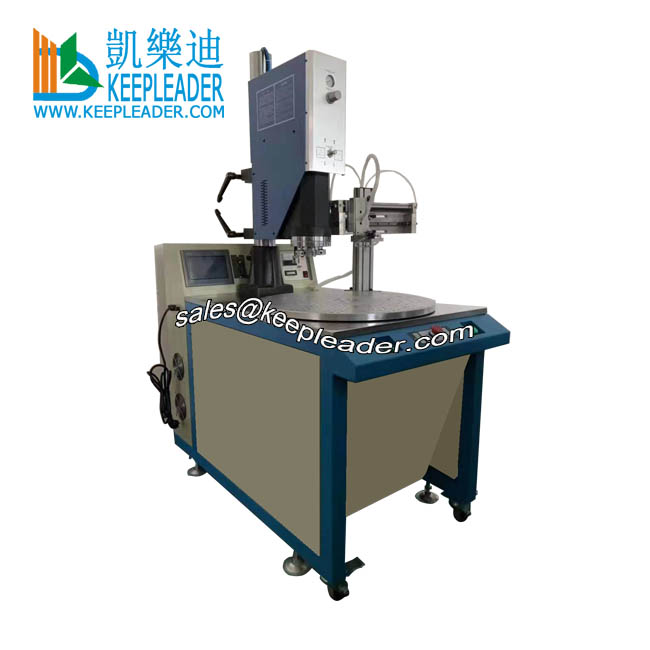

Sonic Plastic Welder Auto Turntable Ultrasonic Welding Machine

01: Application

Sonic Plastic Welder Auto Turntable Ultrasonic Welding Machine is used for amorphous and semi-crystalline thermoplastic material bonding without the jointing design of mechanical snap-fits, screws or chemical adhesives, auto turntable index equipped with automatic robot arm to achieve automatic production of welding process in home appliance, electronic parts, medical parts, stationary and auto plastic parts, ultrasonic welding uses high frequency vibration to melt and weld plastic, customized ultrasonic horn/sonotrode vibrates at ultrasonic frequencies and causes concentrated molecular vibration in the weld joint, the molecular friction cause the material itself heated to reach melting point, once the vibration is stopped, the horn/sonotrode maintains a holding pressure on the joint to create a bond, ultrasonic welding process has not any consumptive material in its bonding, only small area of contacting joint heats to melt and solidify under pressure in result of air-tight and water-tight sealing

02: Parameter

Name

Sonic Plastic Welder Auto Turntable Ultrasonic Welding Machine

Model

KLC-2020R

Ultrasonic Power

2000w/2600w

Ultrasonic Frequency

20khz/15khz

Power Supply

220v,50hz or 110v,60hz

Delay Time

0.01~9.99s

Welding Time

0.01~9.99s

Holding Time

0.01~9.99s

Drive Mode

Pneumatic

Stroke Distance

75mm

Working Pressure

0.4~0.7Mpa

Air Pressure

5kgs per square centimeter

Diameter of turntable

600mm

Width of robot Arm

920mm

Packaging Dimension

1400*1000*2100mm=3.0CBM

Gross Weight

380kgs

Note: The welding capability parameter of Sonic Plastic Welder Auto Turntable Ultrasonic Welding Machine in the catalogue are for reference only, the specify situation shall be confirmed according to the shape of welding surface, size, plastic material and energy director and expected productivity

03: Character

Automatic rotary table with 6,8,10,12 working stations, high efficiency

Equipped with holding manipulator to unload welded parts automatically

Automatic film feeder to protect the welding parts surface is available

PLC.HMI easy operation, touch screen, English interface

Analog ultrasonic welding machine, manually tuning

Welding time, delay time, and dwell time and rotary speed are adjustable

Ultrasonic generator is integrated into machine’s cabinet

Precise imported pneumatic driving system

Cutting-edge quality transducer and booster

Self-protection, over current, frequency deviation and over temperature

Prominent rotary index to auto change the welding position

Piezoelectric ceramic transducer imported, output is strong and stable

Anti-backwards and coaxial direct pressure design, pressure exerted evenly

Unique design of level tuning screw, mould is easier to debug

04: Highlights of Ultrasonic welding

High welding efficiency, batch processing can be welded plastic parts

Don’t need any auxiliary,chemical solvent, so there is no impact on human health

Firmly bonded, no distortion, does not affect the appearance, without damaging parts

Guarantee to be welded airtight, water-proof

Prominent piezoelectric ceramic transducer, output is strong and stable

The material itself bonded has advantages of air tightness and water-proof

05: buying guides

When you select a ultrasonic welding machine, you need to consider your requirement in details as below factors

The measurement of welding parts

Parts geometric design

Parts material

Welding quality standard: welding strength, air-tightness, welding control precision, outlook after welding and position deviation

The deformation of part moulding

Also you need to consider your demand of ultrasonic welding machine’s function as below according to your actual need

Manual tuning or automatic tuning

Welding Mode: Time mode, energy mode, depth control, external trigger mode

Amplitude control

System protection

QC management

Frequency in-time self search or not

Self protection

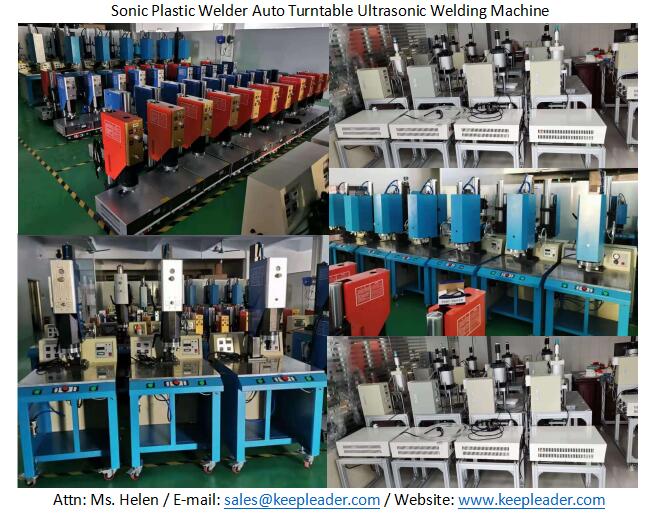

Working Shop


Sonic Plastic Welder Auto Turntable Ultrasonic Welding Machine

Sonic Plastic Welder Auto Turntable Ultrasonic Welding Machine has optional modes of stand-along, table-top, integrated in manual or automatic load and unloading, all of machine also built in comprehensive in-house manufacturing and tooling capabilities that deliver accurate prototyping and highest quality components and finished goods, rigorous quality control ensures consistently reliable products that perform optimally in the customer environment

Detailed Images


Sonic Plastic Welder Auto Turntable Ultrasonic Welding Machine

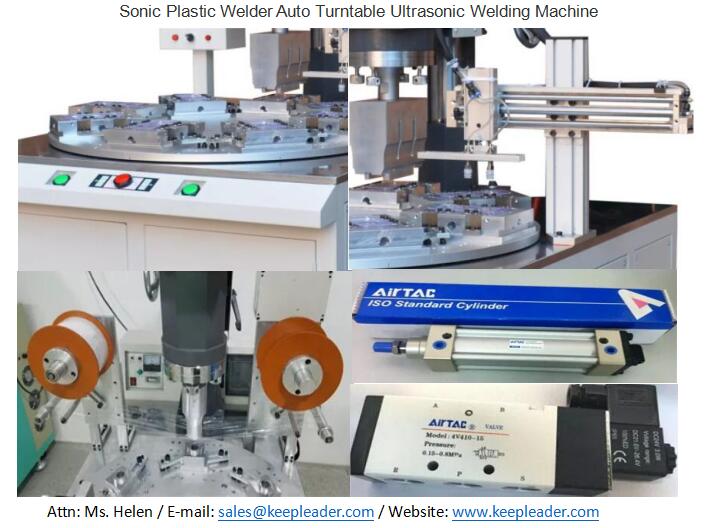

Sonic Plastic Welder Auto Turntable Ultrasonic Welding Machine is configured elements in #1: Auto Index of turntable #2: Auto manipulator of unloading #3: Auto feeding of protective film to avoid surface damage in bonding #4: AirTAC of air cylinder and solenoid Valve #5: exceptional ultrasonic sonotrode made of Aluminum or titanium

Machine Uses


Sonic Plastic Welder Auto Turntable Ultrasonic Welding Machine

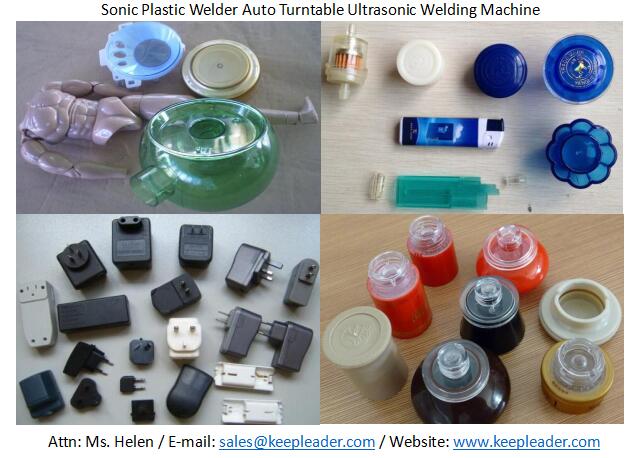

Sonic Plastic Welder Auto Turntable Ultrasonic Welding Machine is widely used in automotive industry,electronic industry, medical industry,household appliance, woven apparel, office supplies, packaging industry, toy industry, and so on made of PP,PE,PS,PC, ABS,Nylon, PVC,Acrylic, PMMA and all other amorphous and semi-crystalline thermoplastic material

Contact Us


Sonic Plastic Welder Auto Turntable Ultrasonic Welding Machine will comes to your side with unmatched customer support that is the focus of every keepleader’s employee and our company’s commitment to your success, please share your concerns which is very important for your convenient production for our tech verification prior to offer, we will definitely stand with your to work out a reliable and affordable welding solution for your comparison
