Rubber Marking Tire Indent Marker Numbering Head Handheld Hot Indenting Tool of Rotary Character Wheel Electric Tyre Hot Brander

Rubber Marking Tire Indent Marker Numbering Head Handheld Hot Indenting Tool

Rubber Marking Tire Indent Marker Numbering Head Handheld Hot Indenting Tool

Rubber Marking Tire Indent Marker Numbering Head Handheld Hot Indenting Tool is #1: electric heated #2: rotary wheels die #3: combined ten characters in each wheel of customized quantities #4: available characters in letters: A~Z, numbers: 0~9, punctuation and any symbols #5: built-in temperature regulator and #6: made to designed size for each character

Machine Description

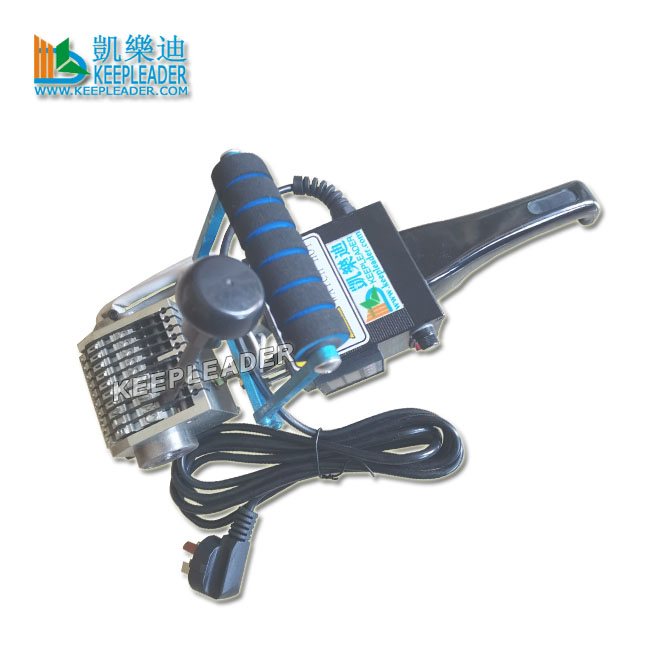

Rubber Marking Tire Indent Marker Numbering Head Handheld Hot Indenting Tool

01: Application

Rubber Marking Tire Indent Marker Numbering Head Handheld Hot Indenting Tool is for applications where the character doesnot change, an engraved roller die can be made with text, or logos, letters,numbers or any symbols engraved in any character size or depth so you can achieve your desired mark, the character wheels are manufactured with high quality tool steel and heat treated for excellent performance and longevity,each character wheels designed to mark up to ten characters, which can combined as your designed reads, but, the quantity of character wheel can make to your ordered, also for the size of each characters

Rubber Marking Tire Indent Marker Numbering Head Handheld Hot Indenting Tool is often used for banding tire identifying marks, except for rubber marking, is also capable for commodities made of leather, wooden, plastic and other thermal forming material in denting ID,codes, sequence number

02: Parameter

Name

Rubber Marking Tire Indent Marker Numbering Head Handheld Hot Indenting Tool

Model

KLS-1200R

Heating Power

1200w

Power Plug In

110v,60hz or 220v, 50hz

Qty of Character wheel

Up to 20pcs

Wheel Characters

10pcs of combined in any letters, numbers, punctuations

Character Size

1.5*1.5mm up to 35*35mm

Max Temperature

500 degree

Material

Back Handle

Solid Plastic

Top Handle

Aviation aluminum

Power Box

Aviation aluminum

Roller Shank

Tool steel



Character wheel

Tool steel

Heating Temperature

Rubber

370~400 degree

Wooden

500 degree

Heating time

Within 3 seconds

Weight

5kgs

Packing Size

380*180*280mm

03: Character

Roller die made of tool steel and heat treated for excellent performance and longevity

Compacted design, and portable type which is convenient to on-site operation

Combined character engraved in different wheels for branding various desired marks

All characters on board design is heated for quickly changeable characters in ready works

Power box and top handle is made of aviation aluminum annealed

Protective dual fuses elements to cut off the power in case of short circuit

Conical shaped and raised characters’surface of imprinting to get upmost performance

Equipped with manual dial rod to free selection of characters basing on your desired

Max heating temperature up to 500 degree without deformation

Built-in standing screw, which can avoid directly contacting with combustible material

Wheel shank is made of tool steel, which is electroplated to avoid corrosion and good-looking

The axial code of rotary wheel designed heating elements to guarantee consistent heating process

All of metal parts are machined by CNC,which is precision processed in steel block

All power connecting joints are soldered and sealed for water-proof in harsh environment

Power box is made of anodized aviation aluminum to avoid power leakage as another safe barrier

Digital temperature regulator to choose the desired temperature in different condition

Quickly setting-up is just 5~10 minutes for ready working after start the heating controller

This electric brander designed a top handleto auxiliary pull-up and adjust the melting angle

04: order options

Top handle and idle stand both are optional

Power plug in is 110v, 60 Hz or 220v, 50 Hz,which is optional

Each wheel can combine ten characters,marking wheels are available up to 20pcs

The size of each character is 1.5*1.5mm up to 35*35mm

Each engraved wheel can combine letters, numbers, punctuation or any symbols
Detailed Images

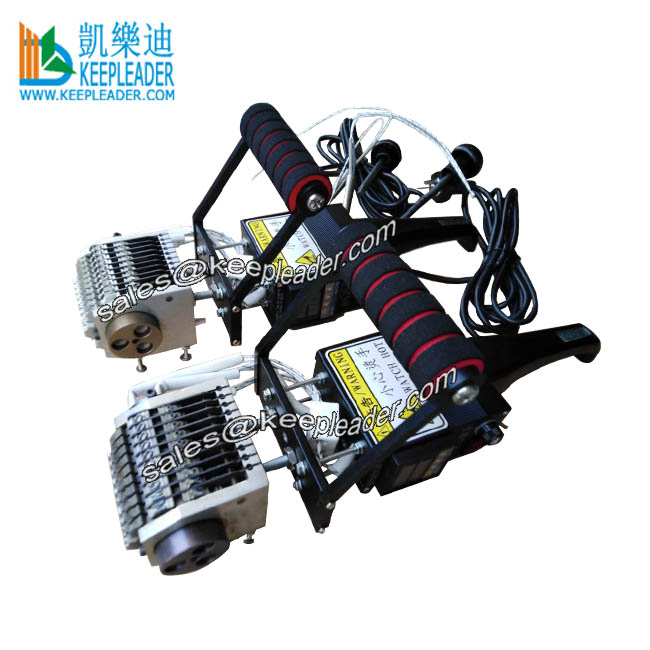

Rubber Marking Tire Indent Marker Numbering Head Handheld Hot Indenting Tool

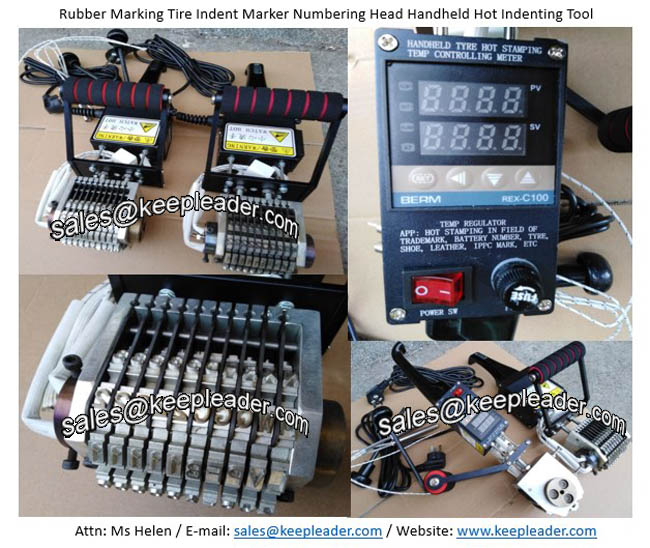

Rubber Marking Tire Indent Marker Numbering Head Handheld Hot Indenting Tool has #1:top handle #2: numbering head #3: built-in heating elements #4: digital temperature regulator

Machine Uses


Rubber Marking Tire Indent Marker Numbering Head Handheld Hot Indenting Tool

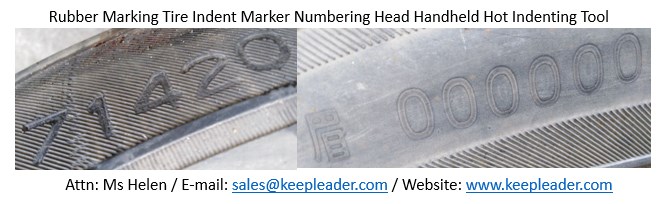

Rubber Marking Tire Indent Marker Numbering Head Handheld Hot Indenting Tool is available in marking commodities made of rubber, leather, plastic and wooden
