Stranded_Braided Wire_Cable Bonding_Splicing_Jointing_Welding Ultrasonic Welder for Ultrasonic Welding Metal Wire Splice_Joints

Stranded_Braided Wire_Cable Bonding_Splicing_Jointing_Welding Ultrasonic Welder

Stranded_Braided Wire_Cable Bonding_Splicing_Jointing_Welding Ultrasonic Welder

Stranded_Braided Wire_Cable Bonding_Splicing_Jointing_Welding Ultrasonic Welder has #1computerized system #2: Pneumatic driven stamping actuator #3: ajustable clamping anvil for versatible size bonding of wire,cable, and terminals made of aluminum, copper in braided, Solid, stranded propertity

Machine Description


Stranded_Braided Wire_Cable Bonding_Splicing_Jointing_Welding Ultrasonic Welder

01: Application

Stranded_Braided Wire_Cable Bonding_Splicing_Jointing_Welding Ultrasonic Welder is the precision process for wire and terminal jointing applications, it welds stranded, braided and magnet wires to create a wire splice, wire crimping or a battery cable splice, the jointing it produces are used in automotive, aircraft, computer and consumer electronics industries, as well as other process control and industrial instrument application, it is most commonly used in the production of wire harnesses, the molecular vibrating friction results in the heated intermingle bonding, which cause the microscopic connection in wire butt bonding, wire crimping, wire end forming, and joining with terminals, this process offers numerous exclusive bonding effect, besides the excellent electrical properties of the joint and extremely low energy consumption, which is completed by particularly characterized of comprehensive process control and process data management

02: Parameter

Name

Stranded_Braided Wire_Cable Bonding_Splicing_Jointing_Welding Ultrasonic Welder

Brand Name

keepleader

Usage

Wire/cable harness welding/bonding

Model

KLM-20KHZ

Ultrasonic Power

2000w thru 5000w

Ultrasonic Frequency

20khz

Welding Area

0.5~40mm

Max welding thickness

4mm

Welding time

0.01~9.99 seconds

Welding Capability

 Max:16mm2 of 2kw,20mm2 of 3kw,30mm2 of 4kw,

Voltage Plug in

110v/60hz or 220v/50hz

Pneumatic Pressure

0.3~0.6Mpa

Rated Duty circle

100%

Rated capacity

2~5KVA

Generator type

Digital Automatic frequency tuning

Size

Controller: 420*380*200mm

Welder: 510*280*210mm

Weight

Welder: 25~50kgs, controller: 10~15kgs

Warranty

One Year Warranty with lifetime support

03: Advantage

High-quality transducer has strong energy output, reliable bonding and consistent effect

Good conductivity and resistance very low or almost near to zero

Oxidation or plating metal can be welded

Short welding time, no need additional flux, gas and solder

No welding sparks, environment protection and safety

Stepless adjustment of the amplitude instead of frequency replacement of amplitude

Low energy consumption, high efficiency, no distortion, no pollution, welding firm and convenient operation

Welding material does not melt non-fragile metal properties

04: Features

Wire width is adjustable from 0.5 thru 40mm, which depends on the power lever

Microcomputer control with touch screen is visible on setting, operation

Ultrasonic frequency is auto tuning without frequency replacement of amplitude

Over-current protection of power circuit design and soft start function for safe consideration

Easy install and maintenance, pneumatic stamp testing and auto welding both can complete process in a circle trigger by a separated button

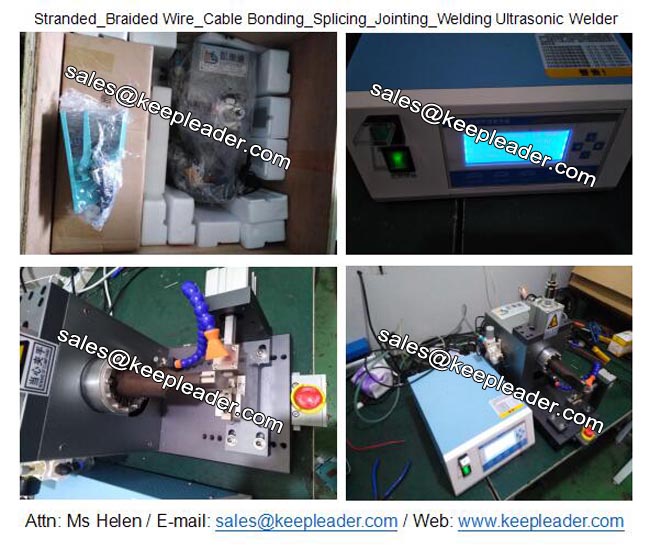

Detailed Images


Stranded_Braided Wire_Cable Bonding_Splicing_Jointing_Welding Ultrasonic Welder

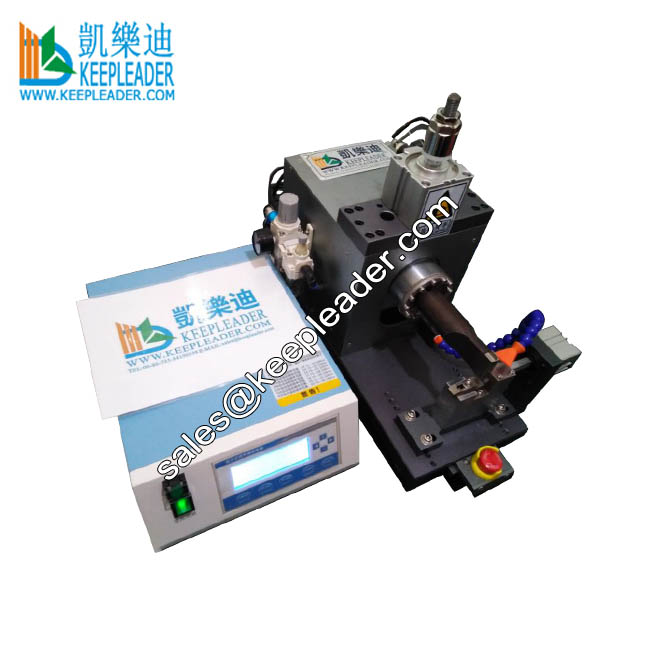

Stranded_Braided Wire_Cable Bonding_Splicing_Jointing_Welding Ultrasonic Welder has features of smart/intellectrual ultrasonic generator, pneumatic stamping system with precision pressing stop, Pedcal valve tiggering control

Machine Uses


Stranded_Braided Wire_Cable Bonding_Splicing_Jointing_Welding Ultrasonic Welder

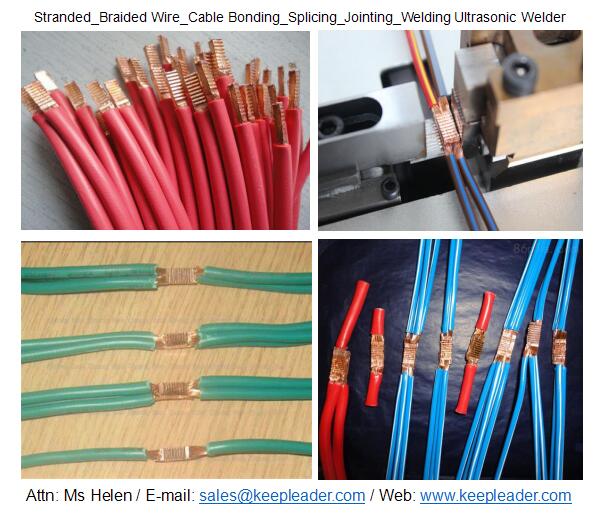

Stranded_Braided Wire_Cable Bonding_Splicing_Jointing_Welding Ultrasonic Welder can weld alumimum, copper wire of braided, stranded or wire end forming process in sectional cross size: 0.5~40mm2 basing on thickenss: 4mm less

Contact Us


Stranded_Braided Wire_Cable Bonding_Splicing_Jointing_Welding Ultrasonic Welder is prominent solution for solution of wire bonding, keepleader, we dedicate to innovation, development, manufacture in wire connecting application with individual pneumatic or servo-moto driven pressing device in compliance with your practical welding, pls contact us to find what can we do for you

 Attn:Ms Helen

 E-mail:sales@keepleader.com

 Cellphone:+86 13590415784 (Wechat/Whatsapp)

 Tel: +86 755 84190358

 Website: https://www.hfwelds.com / www.keepleader.com
