Digital Date Code Printing Cable ID Hot Stamping Machine for Wire_Cable_Shrinkable Sleeve Hot Stamp Imprinter_Embossing Printer

Digital Date Code Printing Cable ID Hot Stamping Machine

Digital Date Code Printing Cable ID Hot Stamping Machine

Digital Date Code Printing Cable ID Hot Stamping Machine is your eliable marking solution in hot foil stamping process, in which all of numbers, letters and symbols around each tyepwheels upon requested character size, Qty of typewheels and driven actuator

Machine Description


Digital Date Code Printing Cable ID Hot Stamping Machine

01:Application

The proper identification of electrical wires and cables with their circuits and voltages is necessary to provide safety of operation, safety to maintenance personnel, and ease of maintenance, Digital Date Code Printing Cable ID Hot Stamping Machine is reliable solution of your wire or cable identification in coding, labeling and marking management, electric heated cord pre-heating rotary wheels, all of numbers, letters and personnel symbols in each wheels, the operators can freely select the characters to apply versatile combination, precision melting stop and smart temperature control impels your imprinting performance at prominent point

02:Parameter

Name

Digital Date Code Printing Cable ID Hot Stamping Machine

Model

KLS-2040

Power Plug in

220v, 50hz single phase

Qty of type wheels

20pcs or custom qty

Characters around wheel

40pcs in A thru Z, 0 thru 9, +,-,/,Space

Character size

1.2 thru 3.0 mm

Pre-Heating Time

5~8 minutes

Lubrication

High temperature grease

Max Melting Depth

0.76mm

Interval space

1mm

Width of pigment foil coil

60mm

Temperature

0~180 degree

Pressure

2~5kgs

Printing Surface

Flat or curve angle: R1~R14

Machine Size

42*40*28cm

Packing Size

48*50*38cm

Weight

50kgs

03: Character

Computerized temperature controller

Digital operation panel for legible setting

Utilizes full-size, 40-characters type-wheels

Prints horizontal and vertically along the wire

Harden galvanized wheel for long-life consideration

Copper type wheel and rugged steel structure frame

Compacted structure and light weight for anywhere working

Built-in lubrication access for convenient and ease maintenance

Button or pedal valve swift in manual or auto production control

Capable for insulated wire and cable with connectors or terminated ends

Quick-change fixture system minimum set-up time and maximum printing speed

Wire and cable size from 1.5mm to 2.4mm, or individual size basing on flat or curved surface

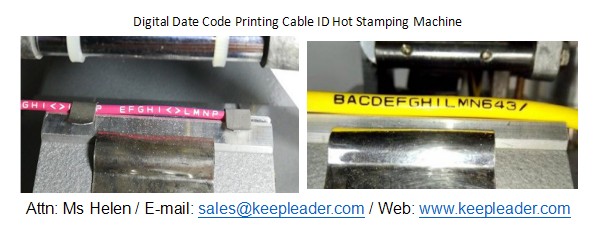

Detailed Images


Digital Date Code Printing Cable ID Hot Stamping Machine

Keepleader can provide custom identification for your wire, cable printing upon request in #1: Qty of type wheels #2: Character size #3: Driven actuator #4: Horizontal or Vertical read print #5: Wire feeding guide, pls tell us your consideration on Digital Date Code Printing Cable ID Hot Stamping Machine for individual solution

Machine Uses


Digital Date Code Printing Cable ID Hot Stamping Machine

Digital Date Code Printing Cable ID Hot Stamping Machine has slide gear for character selection, horizontal slide to choose the typewheel, and vertical rotation to choose the characters, so that to select the characters in versatile combination
