Industrial Marking Equipment Wire Embossing Hot Stamp Imprinter for Cable_Tube_Wire Hot Stamping Marker of Thermal Print Marking

Industrial Marking Equipment Wire Embossing Hot Stamp Imprinter

Industrial Marking Equipment Wire Embossing Hot Stamp Imprinter

Industrial Marking Equipment Wire Embossing Hot Stamp Imprinter allows frequent legend changes and a wide range of wire sizes, print horizontal and vertical read of identifying code on insulated wire and cable

Machine Description


Industrial Marking Equipment Wire Embossing Hot Stamp Imprinter

01:Application

Industrial Marking Equipment Wire Embossing Hot Stamp Imprinter is used for marking on the surface of wire.cable insulation jacket in free combination by letters, numbers and punctuation or bespoke symbols, code, logo, this wire marking stamp imprinter feature quick-change fixture system that minimize set-up time and maximize printing speed to allow for frequent legend changes on a wide range of wire sizes, the character read is horizontal or vertical on insulated wire can cables, including Teflon, Tefzel and Kapton, the operation is pneumatic driven stamp, pedal valve trigger, also can integrate with other wire, cable processing equipment for automatic production

Industrial Marking Equipment Wire Embossing Hot Stamp Imprinter has precision control and monitor for heating temperature and stamping force, heats up quick and holds set temperature, movements are smooth and consistent, all functions and controls are working as they should, no signs of damage or abuse the wire insulation property

02: Parameter

Name

Industrial Marking Equipment Wire Embossing Hot Stamp Imprinter

Model

KLS-1040

Heating Power

250w

Power Plug in

220v, 50hz

Temperature range

60~180 degree

Qty of Rotary wheel

11pcs

Character Qty

40pcs per wheel

Curved Surface

R1~R14

Max Melting Depth

0.75mm

Character size

1.2mm~3mm

Character read

Alphanumeric: A~Z 0~9 and Punctuation: +, -, / space

Operation Mode

Pneumatic driven, pedal valve

Maintenance

High temperature grease

Packaging Size

50*39*60cm

Packaging Volume

0.117

Gross Weight

38kgs

03: Character

Quick changeover between sleeve and wire

The printing read can be vertical and horizontal

Can be easily interfaced with wire processing machines

Motor driven, or lever press both are available for portability

Bespoke character size and qty of type-wheel are available

40 character rotary wheel freely combination in various identified code

Pneumatic driven of less operator fatigue than lever operation machine

Marker is also capable of using engraved logo dies for bespoke type holders

Solid state dwell timer for better dependability without backward possibility

For insulated wire and cable with connectors or terminated ends is acceptable

For hot stamping cable and wire insulation, heat shrink sleeve and plastic tubing

Detailed Images

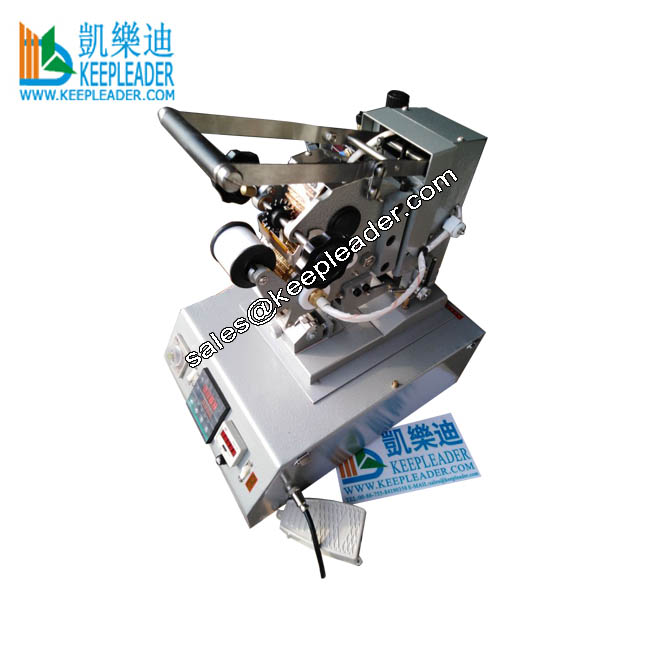

Industrial Marking Equipment Wire Embossing Hot Stamp Imprinter

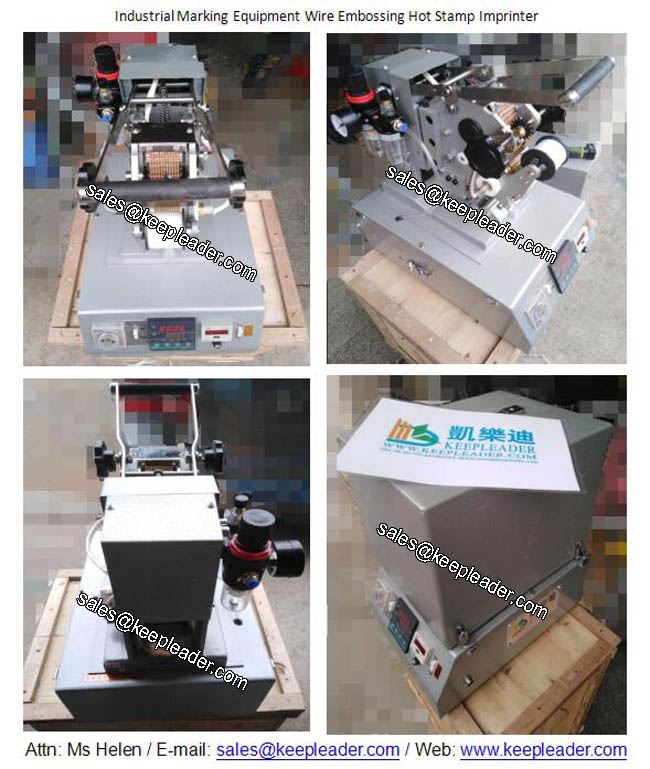

Industrial Marking Equipment Wire Embossing Hot Stamp Imprinter is pneumatic driven, pedal valve trigger, has interface connected with various wire processing equipment for auto production

Machine Uses


Industrial Marking Equipment Wire Embossing Hot Stamp Imprinter

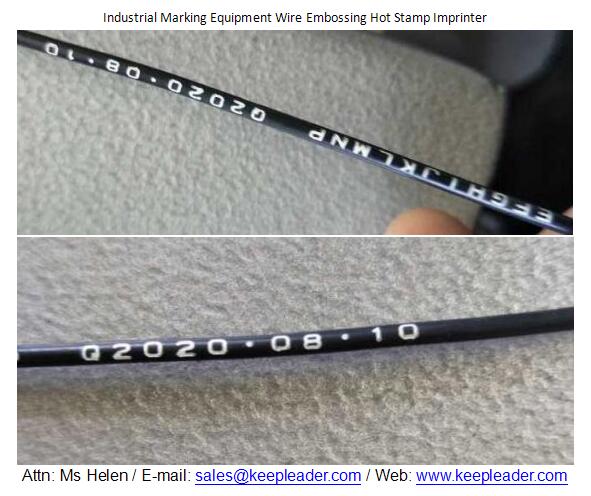

Industrial Marking Equipment Wire Embossing Hot Stamp Imprinter is acceptable bespoke items in #1: Qty of typewheel #2: Character size #3: Driving Mode with All alphanumeric characters and punctuation to combine various identification code

Contact Us


keepleader tech team can provide the whole soultion for your wire,cable identification, our Industrial Marking Equipment Wire Embossing Hot Stamp Imprinter has compact structure adpoting sandwiched pigment foil between electric heated typewheel and wire insulation by applied proper pressure  with optioanl lever, motor and pneumatic driven, if you cannot find your preferred configuration, pls tell us your consideration, thanks for keepeader's professional team, hope we can provide a satisfied solution for individual application
