N95 Mask Welding Machine of N95 Face Mask Making Ultrasonic Welder for N95_KN95 Face Mask Ultrasonic Welding Machine

N95 Mask Welding Machine of N95 Face Mask Making Ultrasonic Welder

N95 Mask Welding Machine of N95 Face Mask Making Ultrasonic Welder for N95_KN95 Face Mask Ultrasonic Welding Machine



N95 Mask Welding Machine of N95 Face Mask Making Ultrasonic Welder is manual welding process for "V"shaped mask blank and earloop after pattern embossing and shape cutting with two set of changing tools, or you only can use this welder for "V" shaped edge welding

Machine Description


01: Application

N95 Mask Welding Machine of N95 Face Mask Making Ultrasonic Welder adopts special ultrasonic molecular vibration friction in fabric welding of face mask making, 20khz, 2kw ultrasonic welder is used for face mask Vshaped welding, also can weld elastic band/ear loop with face mask blank by changing acoustic horn and fixture, steel mold can be customized for various face mask edge bonding, and ear loop welding, ultrasonic agitate vibrating energy caused instant melting only on pressing surface, due to the large acoustic resistance at the interface of two welding area, local high temperature will be generated, due to the pool thermal conductivity of materials such as plastic, nylon, chemical fibers, non-woven fabric, multiple layers fabric, they cannot be distributed in time for a while, and they are gathered in the welding area, resulting in the rapid melting of the two contact surface, after a curtain a mount of pressure is added, they are integrated, when the ultrasonic stops, the pressure will be maintained, and some pressure holding.dwelling time will be allowed to make it solidify and form, so as to form a solid molecular chain, so at to achieve the purpose of welding, the welding strength can be close to the strength of the raw material, which is the reason why many manufacturers need to use ultrasonic welder to produce and weld face mask

02: Parameter

Name

N95 Mask Welding Machine of N95 Face Mask Making Ultrasonic Welder

Model

KLC-2020D

Sonic power

2000w

Frequency

20khz

Welding diameter

180mm

Welding Speed

20~28/minute

Power Supply

110v,60hz or 220v, 50hz, single phase

Driven system

Pneumatic

Air compressor

1HP

Air pressure

0.3~0.6Mpa

Dimension

1300*640*1150mm

Gross Weight

120kgs

03: Character

Compacted design to see foot print

Pedal SW equipped for convenient operation

Easy operation, untrained power can use it freely

Steel mold is well treated to avoid wearing in live long

Frequency auto tuning to keep the reliable and consistent welding

“V”Shaped and ear loop welding in one machine with two set of tooling

20khz ultrasonic frequency equipped with noise impedance for good Working Environment

Detailed Images

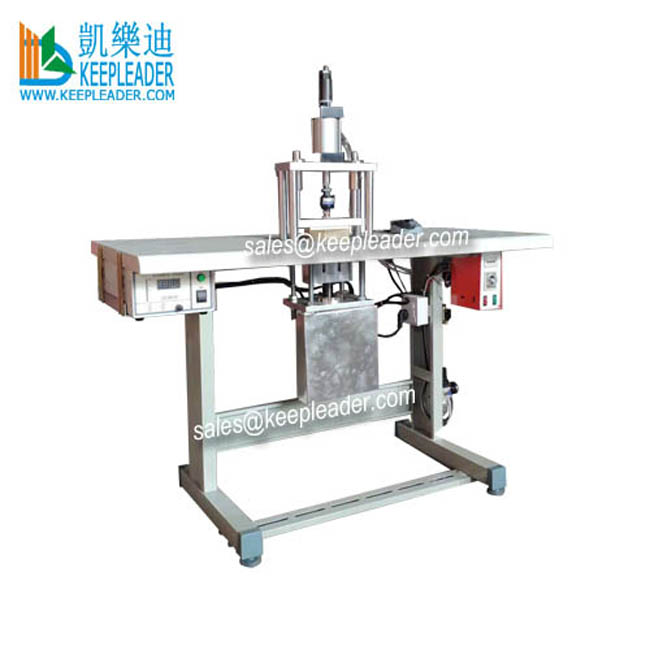

N95 Mask Welding Machine of N95 Face Mask Making Ultrasonic Welder

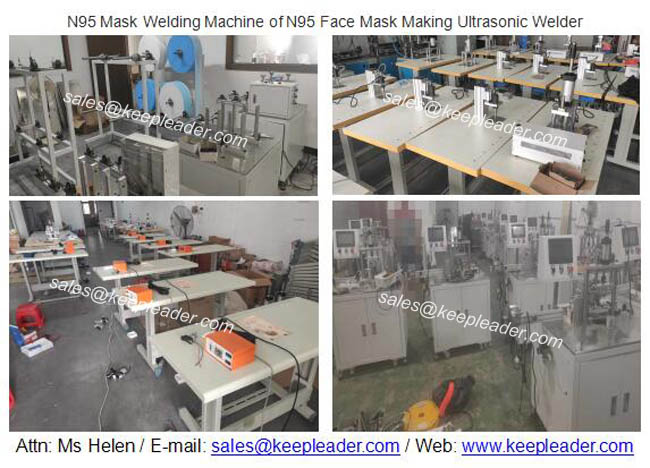

N95 Mask Welding Machine of N95 Face Mask Making Ultrasonic Welder is seprated welding function in Face mask making

Machine Uses


N95 Mask Welding Machine of N95 Face Mask Making Ultrasonic Welder

N95 Mask Welding Machine of N95 Face Mask Making Ultrasonic Welder is #1: Pedal SW control #2: Pneumatic driven #3: Ultrasonic bonding #4: Manual operation in foldable face mask making production

Contact Us


N95 Mask Welding Machine of N95 Face Mask Making Ultrasonic Welder is only for welding process in Face mask making, for integrated production line consists #1: Nasal bridge strip/clip inserting #2: Pattern knurling and. Mask Blank shaped cutting #3: Earloop welding #4: Folding and auto transmission, keepleader not only can provide full automatic production line, but also can provide separated machine for module's fuction, please contact keepleader for detailed consultation
