Thermoplastic Melting Rotary Friction Welding Water Filter Cartridge Spin Welder for Cup_Mug_PP Tube_Oil/Water Filter Welding

Thermoplastic Melting Rotary Friction Welding Water Filter Cartridge Spin Welder

Thermoplastic Melting Rotary Friction Welding Water Filter Cartridge Spin Welder for Cup_Mug_PP Tube_Oil/Water Filter Welding

Thermoplastic Melting Rotary Friction Welding Water Filter Cartridge Spin Welder used for thermoplastic welding with circular jointing interface at shearing friction in melting

Machine Description

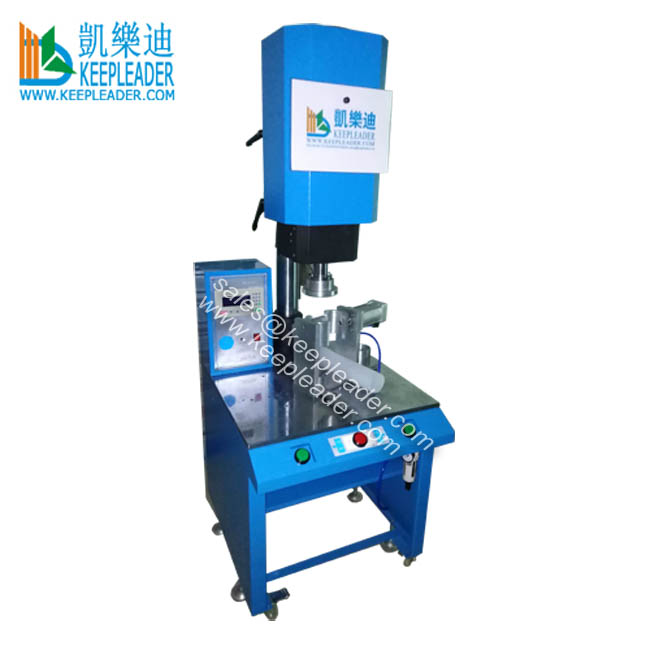

Thermoplastic Melting Rotary Friction Welding Water Filter Cartridge Spin Welder

01: Application

Thermoplastic Melting Rotary Friction Welding Water Filter Cartridge Spin Welder has wire range of application, it is used to weld insulated cups, bowls, filters for water and chemicals, plumbing floats, pain can lids, pop-up irrigation valves, and line splatters for juice and soda dispensers, tubes with sharing joining interface, In the automotive industry, Thermoplastic Melting Rotary Friction Welding Water Filter Cartridge Spin Welder assemble tanks, bottles, valves, lamps and oil filters, the technique is also used to install elbows into manifolds and to weld extrude tubing to molded attachments for fuel filter lines, keepleader recently worked on an automotive application that involved welding a hose, to an air intake made from PP, welding this hose eliminated the need for pricey, circular steel clamp to attached the hose, in the application industry, Thermoplastic Melting Rotary Friction Welding Water Filter Cartridge Spin Welder has been used to assemble valves, flow diverters, vacuum cleaner housing and water filters for refrigerators, spin welder can also be used to assemble medical devices,for medical application, it is important to note that spin welder can generate particulates, however, vacuum or compressed air can be used to clear particulates during assemble

02: Parameter

Name

Thermoplastic Melting Rotary Friction Welding Water Filter Cartridge Spin Welder

Model

KLC-3P

Motor Power

2.6KW

Power Supply

AC3P, 220V/60HZ, 380V, 50HZ

Welding Diameter

150MM

Welding Height

500MM

Welding Speed

0.5~2S

Fixture

Pneumatic clamping

Actuator

Elastic rubber linear aluminum holder

Gross Weight

228KGS

Packaging Volume

0.953CBM

03: Advantages of spin welder

Easily automated

Low maintenance

Low power consumption

Low cost, quick change tooling

Heat confined to weld interface

No consumables, fumes or emissions

High strength, hermetic welds are typical

Ability to weld several dissimilar materials

Compatible with most thermoplastics

Ideal for welding of Nylon+GS filled, PP and PE materials

Relatively fast cycle times when compared with other methods

Ability to weld parts with circular joint that are not easily welded by ultrasonic

Notice:

Thermoplastic Melting Rotary Friction Welding Water Filter Cartridge Spin Welder must have connecting design of exerting melting process, it is named shear joints and required side walls with an interference and their strength is proportional to vertical direction of overlap, they work better for regular/symmetrical parts that those with irregular shapes

Detailed Images

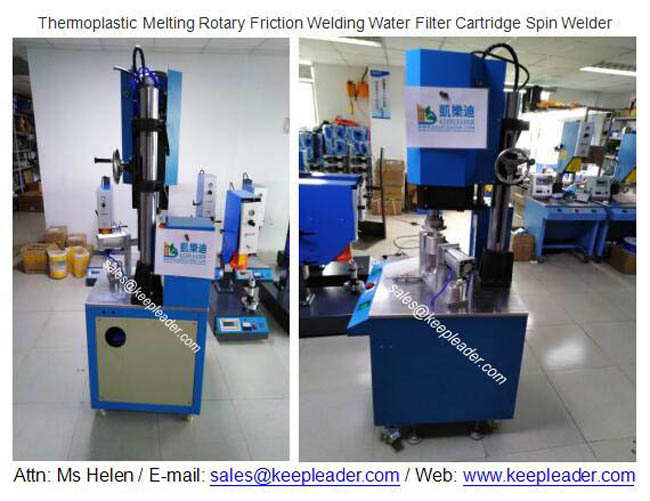

Thermoplastic Melting Rotary Friction Welding Water Filter Cartridge Spin Welder

Thermoplastic Melting Rotary Friction Welding Water Filter Cartridge Spin Welder is optional in manual or automatic loading and unloading, pneumatic clamping fixture or manual clamping as demanding

Machine Uses

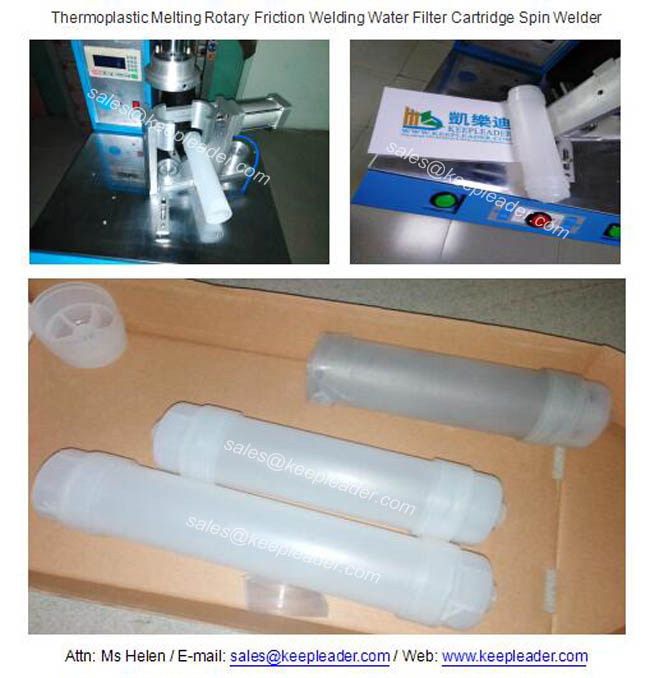

Thermoplastic Melting Rotary Friction Welding Water Filter Cartridge Spin Welder

Thermoplastic Melting Rotary Friction Welding Water Filter Cartridge Spin Welder is capable for round shaped joining in orientation, the torque force is dedicated by wall thickness and spinning diameter

Our Service


01: Pres-sale service: Your needs, our expertise

011: Any enquiry will be replied within 10 hours, not weekend

012: Provide professional technical consult

02: Sale of service: Our solutions, your profitability

021: New project machine design and drawing

022: Making prototype samples

03: After-sales service: Our quality, your performance

031: Supplying 1 year warranty and all life of your machine working technology service

032: 8/24 telephone service

033: inventory components and parts, easily worn parts

04: Short cycle: our efficiency, you success

041: Standard machines can be shipping within 7 days

042: The custom-made machine will meet your requirement date

05: Service of Thermoplastic Melting Rotary Friction Welding Water Filter Cartridge Spin Welder

051: Customized Driving Actuator, Fixture

052: Optional Welding Height, need confirm its maximum before order

053: Technology confirmation of welding diameter, shearing joining interface

054: Automatic production configurations

055: Trial welding and Hermetic-sealing, sealing-strength, air-tight, flash clean

056: Tutorial video, User guides and on-line training

Contact Us


Thermoplastic Melting Rotary Friction Welding Water Filter Cartridge Spin Welder has its extensive welding performace in ultrasonic welding, induction welding, hot plate welding and laser welding, but have flash produced, if this is sensitive for your consideration, please design a inside melting trapped groove and confirm its possibility with KEEPLEADER before order
