Industrial Ultrasonic Cleaner Auto Parts Degreasing Machine for Engine Block_Aircraft_Carburetor_Fuel Injector Cleaning Cleaner

Industrial Ultrasonic Cleaner Auto Parts Degreasing Machine

Industrial Ultrasonic Cleaner Auto Parts Degreasing Machine for Engline Block_Aircraft_Carburetor_Fuel Injector Cleaning Cleaner

Industrial Ultrasonic Cleaner Auto Parts Degreasing Machine is a customized size and function of ultrasonic agitation scrubbing, in which combines with separated liquid storage tank for filter circulation

Machine Description


Industrial Ultrasonic Cleaner Auto Parts Degreasing Machine

01: Application

Industrial Ultrasonic Cleaner Auto Parts Degreasing Machine is available for all of water-based aqueous cleaning with following classified cleaning process

Aircraft,Carburetor,Fuel Injector Cleaning

Hospital surgical instruments cleaners

Aircraft maintenance machine parts

Optical components

Automobile engine parts, fuel injector break chain

Molds cleaning

Anything that is honed,lapped or polished

Medical orthopedic implants

Ball Bearing cleaning

Wire drawing dies

Electronic components, PCB

Stencil maintenance

Laboratory glassware, Pipette cleaning

Stainless steel, metal parts cleaning

Jewelry cleaning

Electrolyte plating industries

Lenses. Ophthalmic, spectrum

Marine SS wire mesh filter

Mechanical assemblies, Engine parts, filters

Commercial cleaning, golf club, window bind

02: Parameter

Name

Industrial Ultrasonic Cleaner Auto Parts Degreasing Machine

Model

KLE-1030R

Ultrasonic power

1500w

Ultrasonic frequency

28khz or 40khz

Heating power

2~4kw

Power supply

220V/60HZ or 380v/50hz 3phase

Ultrasonic tank

600*500*500mm

Storage tank

500*380*380mm

Pump Power

0.37kw

Heating temperature

0~100 degree

Gross weight

180kgs

Package Dimension

1.4*0.8*1.2m

03: Character

With latest IGBT Base technology

Auto degassing and frequency sweeping

Free lid and basket as per customer need

High-quality transducer, powerful ultrasonic

28khz or 40khz ultrasonic frequency is optional

Automatic frequency tuning for maximum output

Modular generator for easier modification/servicing

The whole machine made of stainless steel, easy to clean

Low transducer losses permit maximum cleaning action

Heater with thermostatically control increase cleaning effect

Equipped with oil skimmer and liquid storage tank for filter circulation

Extensively protected electronics circuits for longer and safe operation

04: Cleaning procedures

Industrial Ultrasonic Cleaner Auto Parts Degreasing Machine are industry leading to help your machinery in reliable removing grease, oil, wax, grime, stains, varnish, carbon, soot by following usual cleaning operation steps, or custom procedures for individual application

Step 1: Pre-cleaning and hot degreasing: The first part of the cleaning completely removes various forms of surface contamination using ultrasonic and hot cleaning solution

Step 2: Rinsing, crease/cleaning, solution removal: in step two, you can rinse away any residual grease/dirty or cleaning solution from the component, the purpose is to prevent cross-contamination during subsequent baths

Step 3: Corrosion removal: completely removes any corrosion on machinery, this is done using ultrasonic, slightly acidic complex de-ruster, this step is suitable for hardened or polished surfaces

Step 4: Rinsing and acid Neutralization: once the corrosion has been removed, this bath rinses away any residual acid and eliminated corrosion from machinery preparing the parts for the final step

Step 5: water displacement and preservation: this is to ensure that the metal surfaces of machine parts dont rust again when exposed to air, helping to preserve parts from much longer

Above procedures can be completed in one ultrasonic tank by detergent replacement, you also can combine your existed soaking tank for immersion treatment, or, please consider our multiple stages cleaning tanks of each tank handling its exclusive surface treatment by ultrasonic scrubbing , soaking, rinsing, soaking and drying

05: Buying guides

Both your KEEPLEADER distributor and our factory trained representatives are prepared to offer any assistance in selecting your Industrial Ultrasonic Cleaner Auto Parts Degreasing Machine, the more of the following information your furnish, the quicker and more precisely-the appropriate parts cleaning, for your part degreasing and cleaning need, can be selected

051: soil to be removed

052: current cleaning method used

053: Material from which you parts are manufactured

054: Size, weight, configuration, and quantity of the parts to be cleaner per day

055: operation immediately, before and after cleaning (before surface paint after)

056: Preferred method of handling: Manual or automatic

057: Single or Multiple-stages cleaning required

058: Type of cleaning fluid: solvent or water-based

059: Purchasing budget

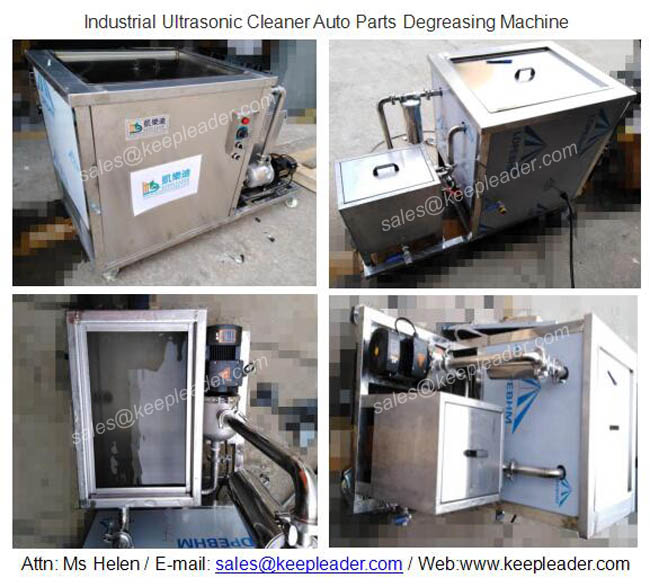

Detailed Images


Industrial Ultrasonic Cleaner Auto Parts Degreasing Machine

Industrial Ultrasonic Cleaner Auto Parts Degreasing Machine has oil-skimmer and filter circulation with optional combination in #1: auto cover/lid to complete thermal insulation #2: auto laminar flow separation system in ultrasonic tank #3: Auto lifting/elevator #4: Auto Up & Down slow shaking #5: Bubbling elements #6: Liquid Level sensing control #7: Frequent flushing #8: Programmable automatic #9: touch screen

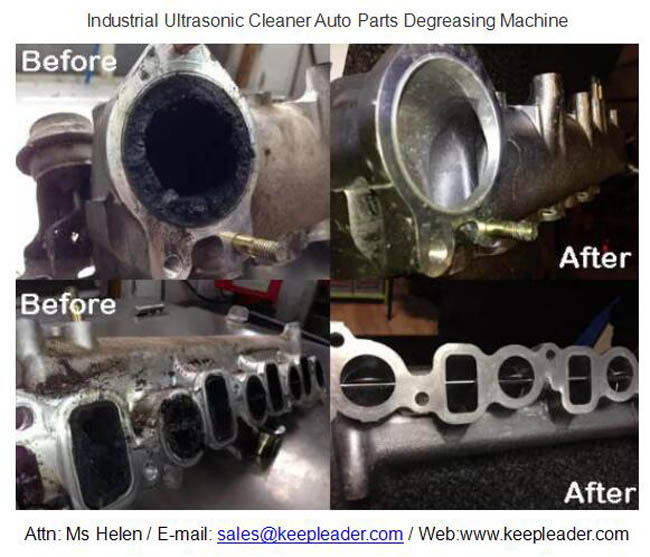

Product Uses


Industrial Ultrasonic Cleaner Auto Parts Degreasing Machine

Industrial Ultrasonic Cleaner Auto Parts Degreasing Machine has advanced cleaning effects in #1: unmatched effectiveness #2: Speed #3: Cost Saving #4: Reduced downtime #5: Efficient removal of contamination within cavities #6: Detergent adding in ultrasonic agitation to remove special particulars
