Hot Stamp Wire Marking Machine of Wire Marking Hot Stamp Printer for Cable_Wire Benchtop Wheel Stamp Marker Hot Foil Stamping

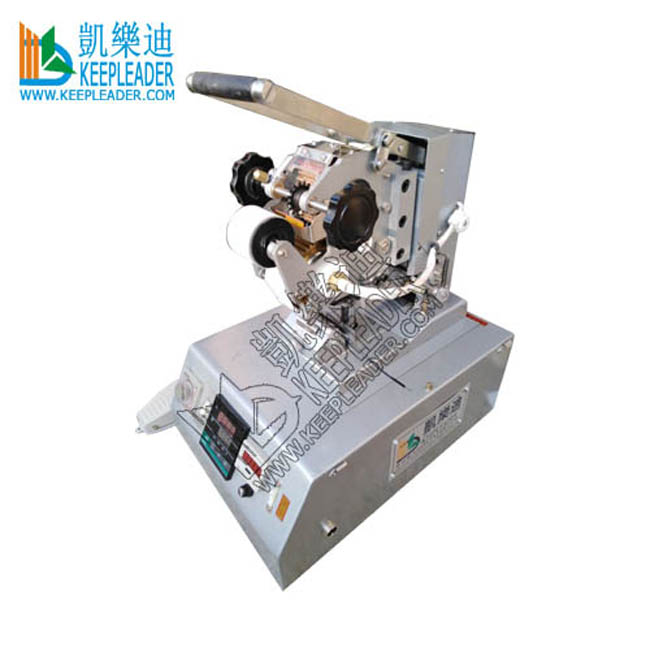

Hot Stamp Wire Marking Machine
Hot Stamp Wire Marking Machine is used preheated wheels concaved alphanumeric characters to press stamping foil pigments on the tubic surface of wire, cable in marking/coding identification/ID purpose
Machine Description
01: Application
Hot Stamp Wire Marking Machine is designed for the economical and high quality marking of wires, cables, and tubes, the combination of characters and character size can be selected freely within the specific range, Hot Stamp Wire Marking Machine is suitable for marking thermoplastic materials of tubing, sleeve and wire/cable insulation surface , during the marking the preheated character wheels imprint the precision-engraved characters by pressing the pigmented marking foil/ribbon/tape into the selected material, the concave form of the characters is exactly matched to the diameter of the processed material, the precision adjusting options for the stamping/marking/coding pressure and time
02: Parameter
Name | |
Available material | Wire,cable, tubing, Sleeve |
Model | KLS-1040 |
Heating Power | 250~500W |
Power Supply | 110v/60hz or 220v/50hz single phase |
Min Wire O.D. | 1.2mm |
Max Wire O.D. | 3.0mm |
Marking pressure | 1~7 Bar |
Marking Temp | 90~180 degree |
Dwell time | 0.1s~3s |
Interface | Combined with wire cutting, stripping, and other process |
Marking foil | PVC-Foil, Teflon-Foil, PP-Foil of Color: White,black, or on request of red, yellow,green, blue |
Weight | 38kgs |
Overall size | 238*540*310mm |
Packing Volume | 42*45*60cm |
Options | Hot Stamp Wire Marking Machine has optional configuration below |
Type wheel | 40pcs wheels/disks or less |
Character style | Horizontal or Vertical reads |
Character size | Horizontal read standard: 1.6/1.8mm On request:1.2/1.5/1.7/2.0/2.3/2.4/3.0mm |
Vertical read Standard: 1.5/1.6mm / on request: 1.2mm | |
Notes Specifications are subject to change without notice, and exceptions may apply depending on application, wire and other variables. Optional equipment may require standard Hot Stamp Wire Marking Machine modification and/or later specifications | |
03: Character
Wide Foil cartridge support quick changeover
Large selection of character size and foils
Utilizes full-size 40 character type wheels
Prints horizontal or vertically along wire
Closed loop integral temperature controller
Stroke adjustment to ensure maximum production rate basing on wire size
Standard V-block wire guide allow marking on cable to 15mm outer diameter
Quick-change fixture system minimizes set-up time and maximizes printing speed
Detailed Images

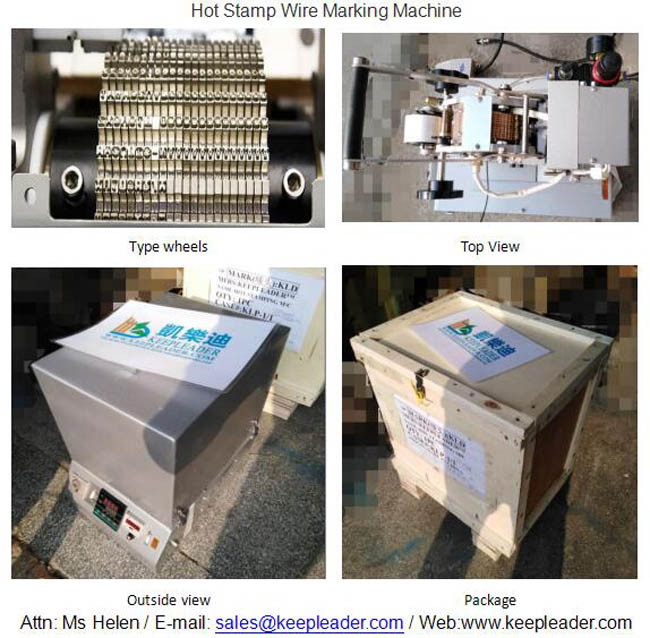

Hot Stamp Wire Marking Machine is compacted design for convenient transport and operation
Product Use

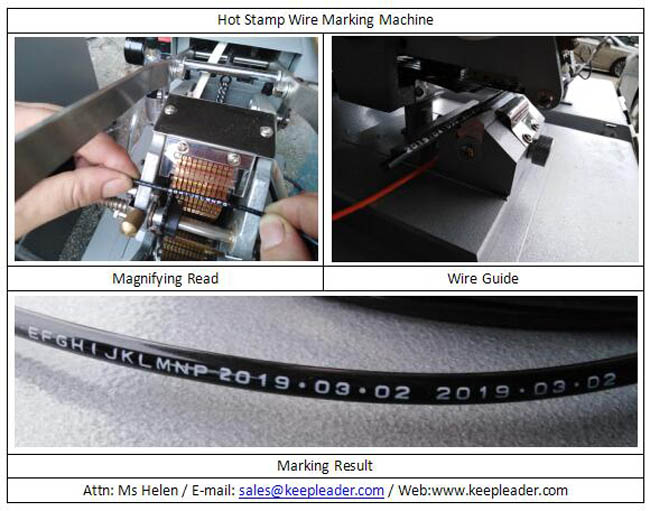

Hot Stamp Wire Marking Machine has #1: chrome plated type wheels #2: Magnifying read line #3:Wire guide
Contact Us
Hot Stamp Wire Marking Machine has custom parameters for difference practical marking process, please confirm you detailed concerns with our sales representative
