High Frequency PVC Tarpaulin Welding Machine of PVC Canvas_PVC Tents High Frequency Welding Machine in Tarpaulin/Canvas Welding

High Frequency PVC Tarpaulin Welding Machine

High Frequency PVC Tarpaulin Welding Machine

High Frequency PVC Tarpaulin Welding Machine is optional of #1: Through depth #2: Size of Electrode & Table #3: Output power #4: Special Configuration #5: Components

Product Description

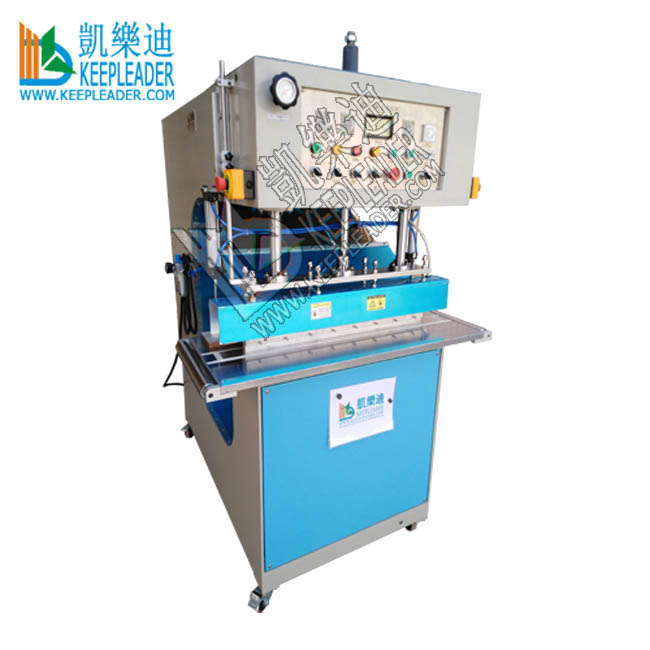

High Frequency PVC Tarpaulin Welding Machine

01: Application

High Frequency PVC Tarpaulin Welding Machine is designed specifically for production of small and large format tensile structures, membranes, tarpaulin, tents, oil booms, truck covers, swimming pool liners and covers, airline hangars, billboards, fast door, side curtains, PVC stretch ceiling, raincoat, inflatable toys, waterbed, large-scale advertising banner, awning, canopy, sun shading canvas, painting canvas, oil containment boom/fence, oil/water/gas tank, stretched ceiling, inflatable pool/boat, drift boat in welding, making, seaming the products made of PVC, PU, TPU coated fabric

High Frequency PVC Tarpaulin Welding Machine is equipped with special deep and wide trough behind the electrode for material storage and handling, machine also have optional smooth glide wheels for easy movement in-around welded fabric, or relocation to a design place in manufacturing hall

 02: Parameter

Name

High Frequency PVC Tarpaulin Welding Machine

Model

KLR-5KWF

KLR-8KWF

KLR-12KWF

KLR-15KWF

KLR-25KWF

HF Power

5kw

8kw

12kw

15kw

25kw

Input Power

5KVA

15KVA

20KVA

25KVA

35KVA

Oscillation

7T85RB

7T69RB

E3130

8T85RB

8T25RB

Max Pressure

350kgs

500kgs

800kgs

1000kgs

1000kgs

Frequency

24.12Mhz

13.56Mhz

Rectifier

Silicon Diode

Electrode gap

100mm

Active horn

150mm

Welding time

0.01~9.99s adjustable

Electrode size

50*50*600

50*50*800

50*50*900

50*50*1000

50*50*1200

Work table

350*700

450*1050

450*1050

400*1150

400*1250

Net Weight

400kgs

800kgs

900kgs

1200kgs

1500kgs

03: Highlights

Practical functionality with precision HF welding head

High efficiency HF weld cycles with 5kw~25kw output power

Sealing efficiency from 1kw: 40cm2 for standard PVC materials

Universal usage for PVC,PU,TPU,reinforced technical textiles

Easy material positioning with deep through behind electrode

G or C-frame rolled steel structure for excellent strength and work ergonomics

Key parts are imported and highly reliable

With big sized platen and working area, easy to set up and remove the dies

Sensitive anti-flash unit to protect machine and welding bar

Length,width and radian of welding area can be adjusted by welding electrode

Free space of 750mm behind the electrode is suitable for big size pass-by through

Infrared projector guide the overlap jointing line

European standard oscillation coaxial barrel is more reliable and stable in output

Precision HF tuning system generate high frequency circles in excellent joint effect

Single line or two lines continue welding, welding length can make as special need

High Frequency PVC Tarpaulin Welding Machine has customs practical functionality, which is special designed configurations, the updated improvement/amendment is complied with final confirmed

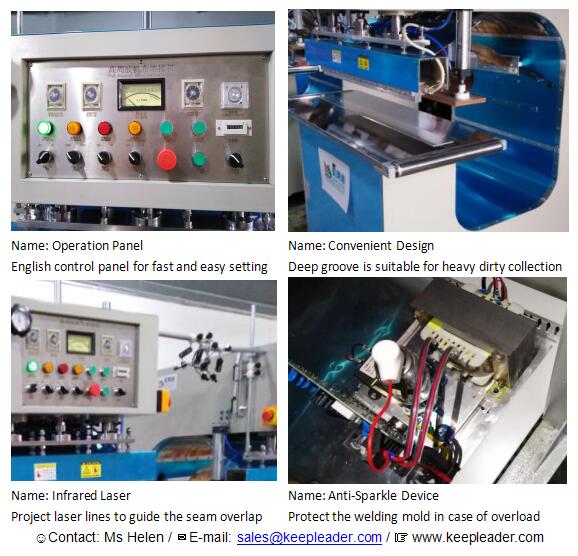

Detailed Images


High Frequency PVC Tarpaulin Welding Machine has pratical functionalities from different customers' feedback

Product Uses


High Frequency PVC Tarpaulin Welding Machine

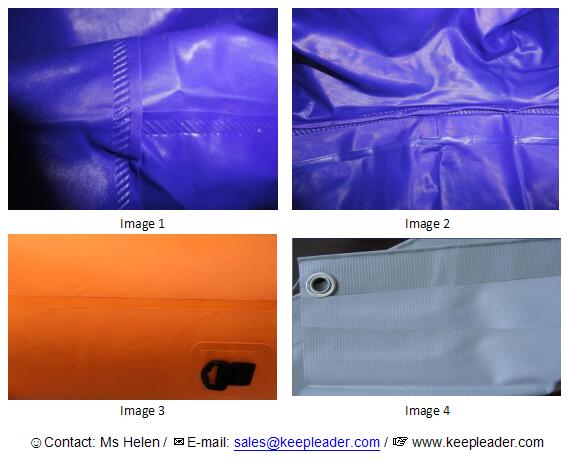

High Frequency PVC Tarpaulin Welding Machine often used for PVC,PU,TPU Seam seaming, if you want weld PET,Nylon, the electrode need preheated function

Buying Guides


Advantages of High Frequency PVC Tarpaulin Welding Machine

High frequency welding occurs from the inside out by using the material itself as a heat source, the heat is focused at the weld target so that the surrounding material does not have to be super-heated to arrive at a target temperature at the point

High frequency welding heat is generated only when the field is energized, once the generator cycles, the heat is turned off, this allows for greater control over the amount of energy that the material sees over the entire cycle, in addition, high frequency generated heat does not radiate off the die like on a heated die, this prevents heat-degradation of the material abutting the weld.

High frequency tooling usually run “cold”, this means that once the high frequency is turned off, the material stops being heated, but remains under pressure in this fashion it is possible to both instantly heat, weld, and cool the material under compression, more control over the weld results in more control over the resulting extrusion, thus increasing the weld strength

High Frequency PVC Tarpaulin Welding Machine is “clean” because the only material needed to produce an HF weld is the material itself, there are no adhesives or by-products involved in high frequency tarpaulin welding

Contact Us


Making the decision to purchase High Frequency PVC Tarpaulin Welding Machine for your manufacturing company is often a wise decision, but it is important that you find the right suplier for your high frequency PVC tarpaulin welding machine to get best results, keepleader can say with confidence that you can trust tarpaulin welding machine from keepleader, with over ten years under our valve-same supplying high-quality PVC tarpaulin welding machine to business, our reputation is one you can count on, let us help you find the right PVC tarpaulin welding machine for you business, we have a wide range of options to suit virtually any company’s needs and budget, contact us today
