Window Blind Aqueous Cleaner Ultrasonic Cleaning Machine of Vertical Binds _Fin Heat Exchange Tube Mobile Washer Ultrasound Bath

Window Blind Aqueous Cleaner Ultrasonic Cleaning Machine

Window Blind Aqueous Cleaner Ultrasonic Cleaning Machine

Window Blind Aqueous Cleaner Ultrasonic Cleaning Machine, as its name suggests, is designed to clean and remove contaminants likely fingerprints, dirt, grime, grease, scale, soot, dirty mites, allergen, bacteria and nicotine from binds, shutters, draperies and shade of all kinds, its maximum loading length accepts designation, in addition, optional configuration enhance the sustainability, likely filter circulation, hot air drying gun, high pressure spray washing wand, hanging rack and dripping tray

Machine description


Window Blind Aqueous Cleaner Ultrasonic Cleaning Machine

01: Parameter

Model

KLE-2060

Ultrasonic power

3kw

Heating power

5kw

Power supply

380v,50hz*3p

Inner size

2000*500mm*500mm

Capacity

33 gal

Configuration

Dual tank, industrial strength heated

Material

SUS 304

Tank welds

Both inside and outside

Gross weight

380kgs

02: Highlighting

Inner tanks welded both inside and outside

Ultrasonic generator with auto-track and auto-tune and digital power intensity control

Generator is individually fused and fan-cooled for a long, safe service

All inlets and outlet fittings are tig welded on inside and outside of tank

Tank fitted with manual fill valve connected to main water inlet

Digital temperature control and display, is easy set and read

Drain with ball valve and plugged fill ports included

Designed with Aluminum heating power, is safer and quick to replace

Heavy duty forklift base

Each machine has a hinged air spring aided cover

Insulated housing used to low noise transmission

Lifetime technology support

03: Optional function

Weir with belt oil skimmer, will be integrated in tank to insure maximum oil removal and cleanliness

Spray bar and weir for oil collection

Filtration and recycling system

Separated settling tank

PLC / HMI control

Controls weir and spray jet

Auto fill system with stainless steel inlet solenoid valve

Overflow discharge outlet

Liquid level protection

Product uses


Window Blind Aqueous Cleaner Ultrasonic Cleaning Machine

Window Blind Aqueous Cleaner Ultrasonic Cleaning Machine exists prosperously in the washing process of window treatment, that can decontaminate all types of window blinds, including venetian blinds, vertical blinds and external blinds, shutters and draperies made of aluminum, vinyl, flax wood and even fabrics, ultrasonic agitation completes implosive penetration in aqueous tanks, that immerse window blinds with specially formulated detergent, each blind can be cleaned and restored to nearly new condition in just a few minutes, this means our Window Blind Aqueous Cleaner Ultrasonic Cleaning Machine can clean around 100 window blinds per day, that is a marvellous profit opportunity, the user can introduce window blind cleaning as a service to your existing customers, can also use it to generate brand new business, offices, factories, schools, hospitals and homes are all potential new customers, so you can repay your investment double-quick time

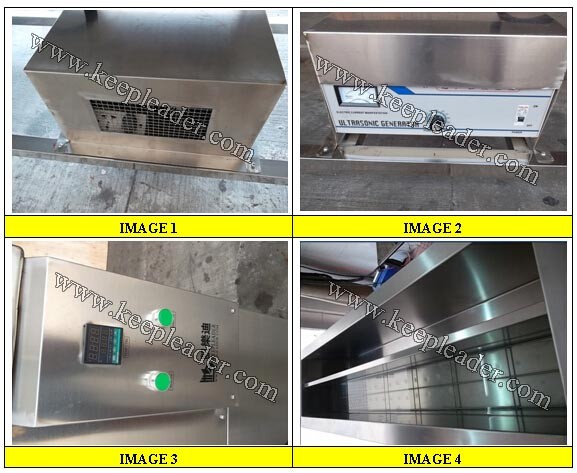

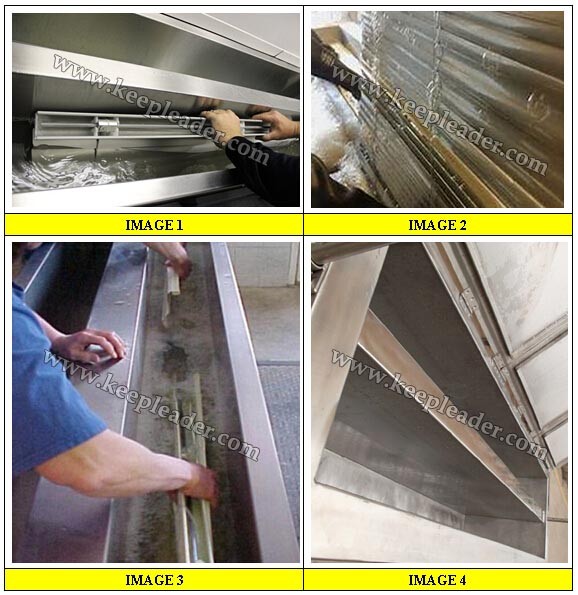

Detailed images


Window Blind Aqueous Cleaner Ultrasonic Cleaning Machine

Window Blind Aqueous Cleaner Ultrasonic Cleaning Machine with a mild soap forms marvelous voids in molecular scale, that are generated in aqueous tank when ultrasonic energy transmitted from the beneath of cleaning tank, when the tiny bubbles, also named ultrasonic cavitation vertically travelling to the top in contacting with immersed window blinds, vacuum voids produce a squeezing effect, it knocks off the dirt and the germs from surface into nook and crannies, this is swiftest cleaning approach without any chemicals, it provides efficient cleaning, Window Blind Aqueous Cleaner Ultrasonic Cleaning Machine has combo two tubs, one is used for ultrasonic agitation cleaning, the other is used for rinsing, hence, the whole cleaning procedures are completed in one machine, that is the perfect one for your gorgeous window blind

Technology


How ultrasonic work?

Ultrasonic cleaning uses sound waves that are introduced into the cleaning liquid by means of “transducers” mounted to the cleaning tank, the sound waves travel through the tank and create waves of compression and expansion in the liquid, in the compression wave, the molecules of the cleaning liquid are compressed together tightly, conversely, in the expansion wave, the molecular are pulled apart rapidly, the expansion is so dramatic that the molecules are ripped apart creating microscopic bubbles, even though the bubbles are too tiny to be seen by the naked eyes they contain a partial vacuum during the spit second they exist, as the pressure around the bubbles becomes great, the fluid around the bubble rushes in collapsing the bubble very rapidly
How ultrasonic work in blind cleaning?
Professional ultrasonic cleaning is recommended for several products, in an ultrasonic cleaning machine, the blinds and shades are placed in a chamber containing a suitable ultrasound conduction fluid, an ultrasound generating transducer is built into the chamber, or may be lowered in the fluid, it is electronically activated to produce ultrasonic waves in the fluid, the main mechanism of cleaning action is by energy released from the creation and collapse of microscopic cavitations bubbles, which break up and lift off dirty and contaminants from the blinds and shades, the higher the frequency, the smaller the nodes between the cavitations points which allows for more precise cleaning

Window Blind Aqueous Cleaner Ultrasonic Cleaning Machine

Window Blind Aqueous Cleaner Ultrasonic Cleaning Machine exhibits its potential for business growth in fast, better blind cleaning technology, its solutions are gentle and fragrance-free, clinically shown to reduce dust mites and other airborne allergens

Our service


KEEPLEADER™ SERVICE

ABOUT PRODUCT

Customized design; Safe and convenient operation

ABOUT FACTORY

Comprehensive management process, leading technology and service team

EXPERIENCE

Internationalization of business process; Rich experience of Non-standard design

AFTERSERVICE

Uniform standard with special difference for each, Professional and Experienced service

MARKET

Yearly 30% Market share increased, One-to-one service

SERVICE PROCESS AT KEEPLEADER™
the clients offer information of the workpieces being cleaned (eg: picture, materials, sizes, requirements, etc) and advise KEEPLEADER™ its contamination in need of removing, the cleaning effect and how to check the cleaning result, what detergent will be used, it is also better to advise KEEPLEADER™ your existing cleaning method and its cleaning effect, KEEPLEADER™ provide offer sheet, once confirmed, sign a contract, the clients paid the deposit, KEEPLEADER™ start equipment building, after passing the acceptance, and receive the balance payment, KEEPLEADER™ delivery the device to clients

After-sales service

fter purchasing at KEEPLEADER™ is first step of our after-service, all of machines at KEEPLEADER™ has one year guarantee, we provide free samples for defected parts to do replacement except for human damage, under information for your notice

01: KEEPLEADER™ always posts the new technical file in our homepage that can help our client in new technical information of machines’ design, character, application, operation, maintenance,

and related, KEEPLEADER™ also welcome our clients feed back the machines’ working condition that can get one to one service

02: If the machine you purchased has any defects, please contact sales representative at KEEPLEADER™, we will assign our experienced engineer analyze your case and provide technical support, in case of damaged parts that cannot repair, KEEPLEADER™ will provide a new parts to replace the defect

03: For any replacement and maintenance, KEEPLEADER™ has user manual and training video

04: KEEPLEADER™ can go to oversea for on-site training

05: KEEPLEADER™ can provide electric diagram if in need

06: Window Blind Aqueous Cleaner Ultrasonic Cleaning Machine has tailored dimension and configuration, such as length of tank: 2,.0m;2.5m'3.0meters or other specification, filter circulation reservoir, hot air blow dryer, high pressure spray cleaning wand/lance, hanging rack, dripping tray and oil skimmer

After-sales service


After purchasing at KEEPLEADER™ is first step of our after-service, all of machines at KEEPLEADER™ has one year guarantee, we provide free samples for defected parts to do replacement except for human damage, under information for your notice

01: KEEPLEADER™ always posts the new technical file in our homepage that can help our client in new technical information of machines’ design, character, application, operation, maintenance,

and related, KEEPLEADER™ also welcome our clients feed back the machines’ working condition that can get one to one service

02: If the machine you purchased has any defects, please contact sales representative at KEEPLEADER™, we will assign our experienced engineer analyze your case and provide technical support, in case of damaged parts that cannot repair, KEEPLEADER™ will provide a new parts to replace the defect

03: For any replacement and maintenance, KEEPLEADER™ has user manual and training video

04: KEEPLEADER™ can go to oversea for on-site training

05: KEEPLEADER™ can provide electric diagram if in need

06: Window Blind Aqueous Cleaner Ultrasonic Cleaning Machine has user manual and intuitive video, on-line tech service is also supported

Contact Us


Contaminated window blinds jeopardize the health obviously, however they are insurmountable in precision cleaning with conventional approach, consider the amount of time, you will spend addressing dirt, dust, and grime, thanks for Window Blind Aqueous Cleaner Ultrasonic Cleaning Machine, that makes fast work out of the most strenuous cleaning job, it allows you to tackle big tasks in record time, the more efficient your business is, the more customers you are able to handle each year, that means the likelihood of your business being successful is far greater that it would be if you attempted to use other methods on your customers window blinds, Our Window Blind Aqueous Cleaner Ultrasonic Cleaning Machine carries tailored construction, that can gratify versatility in window blinds cleaning scenarios, dont hesitate to consult with our sales representatives to find a reliable solution at affordable price for your window blind cleaning business
