High Frequency Welding PVC Blister Sealing Machine for PVC_PET Blister High Frequency Sealing of Turntable PVC Blister Sealing

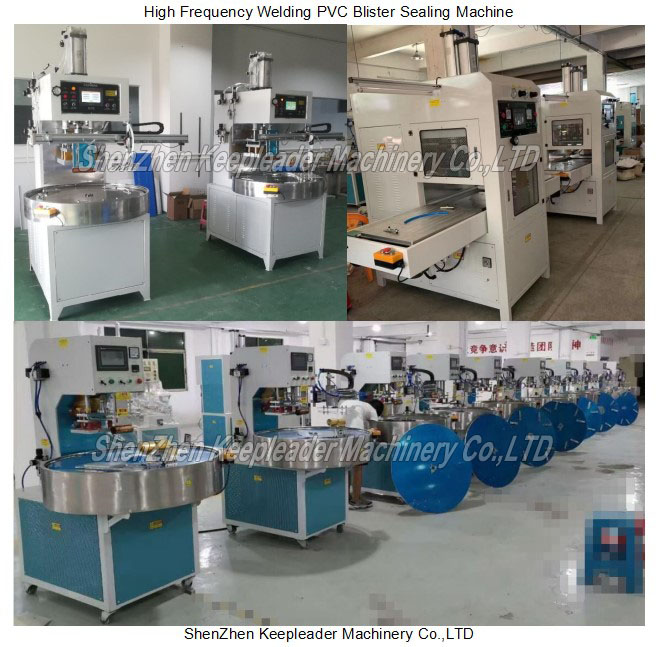

High Frequency Welding PVC Blister Sealing Machine

High Frequency Welding PVC Blister Sealing Machine

High Frequency Welding PVC Blister Sealing Machine is optional in #1:HF Power 5~25kw #2: Manual or Auto Table #3: Robot Arm in loading and unloading #4: Combined Device with production Line #5:Smart Operation Panel

Machine Description

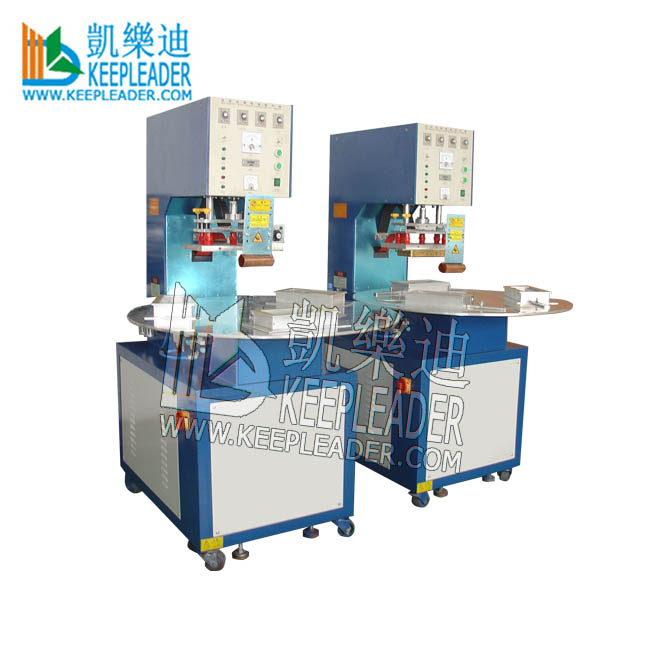

High Frequency Welding PVC Blister Sealing Machine

01: Application

High Frequency Welding PVC Blister Sealing Machine is keepleaders auto turntable type of high frequency welding for blister packaging blister sealing, auto turntable can assist on quick loading and unloading by one operator, not only can save the cost but also can save the footprint, it is ideal for end user in blister packaging procedure,  High Frequency Welding PVC Blister Sealing Machine can take various ranges: PVC+PVC blister clamshell sealing + cutting, PVC Blister clamshell+Paper cards sealing (no cutting), PET Blister clamshell+Paper cards sealing (No cutting), PET+PET Blister clamshell sealing+cutting, if your blister sealing is single, also have mass packaging process, keepleader can equipped with automatic feeding device, or blister high frequency sealing can combined with your auto production line

02: Parameter

Name

High Frequency Welding PVC Blister Sealing Machine

Model

KLR-5000ET

KLR-8000ET

HF Power

5kw

8kw

Power Supply

220v,60hz or 380v,50hz/three phase

Input Power

8KVA

15KVA

HF frequency

27.12Mhz

27.12Mhz

Oscillation Tube

7TB5RB

7T69RB

Anti-Spark System

2D21

2D21

Melting time

0~10s adjustable

0~10s adjustable

Temperature

0~400 degree / adjustable



Rectifier

Silicon diode

Silicon diode

Max pressure

400kgs

500kgs

Gap of electrode

160mm

160mm

Upper Electrode

250*350mm

400*600mm

Loading position

400*600mm

600*800mm

Dimension

1000*1680*1700mm

1300*1700*1900mm

Net Weight

500kgs

600kgs

03: Character

Rotary turntable with 3~5 working stations working alternately

High Q valve oscillation tube, strong HF power in output

High sensitive anti-spark tube to protect the sealing mold and blister

Convenient in operation and changeover welding mold/electrode die and fixture

No radiation to human and other electronic device

Famous brands imported components, AirTAC, Omron, CKC and etc

Sate voltage 24v is applied to control system and press button

Blister sealing is fast, usually less than 5 seconds and the sealed blister are nice-looking

Product Uses

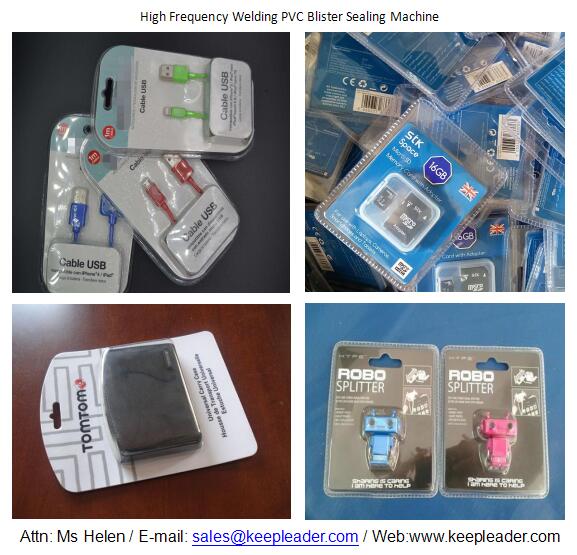

High Frequency Welding PVC Blister Sealing Machine

High Frequency Welding PVC Blister Sealing Machine can seal PVC Blister+Blister with cutting, PVC Blister Paper Card No cutting, PET Blister+Blister No Cutting, PET Blister+Paper Card No Cutting, PVC Sheets forming/sealing With Cutting

Contact Us


High Frequency Welding PVC Blister Sealing Machine our basic Model in Blister Packaging HF sealing, keepleader improve its configuration with combination of Our field experience and Our clients' practical feeling, pls contact us for more information
