Plastic Belt Ultrasonic Spot Welder for Mask Belt Non-woven Bag Handle Ultrasonic Spot Welding of Nylon Belt Spot Welder

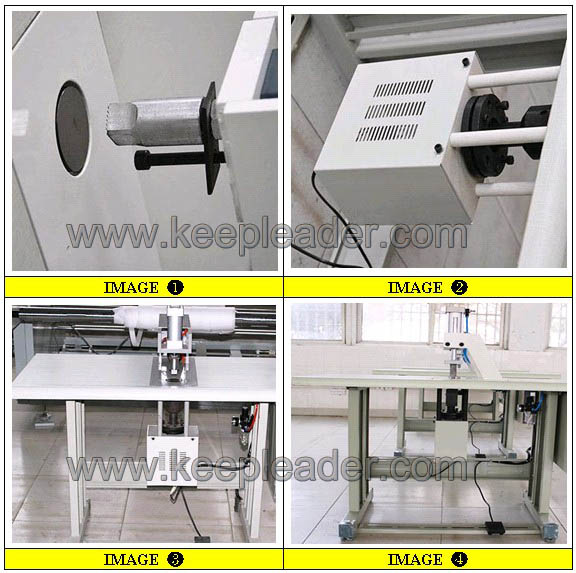

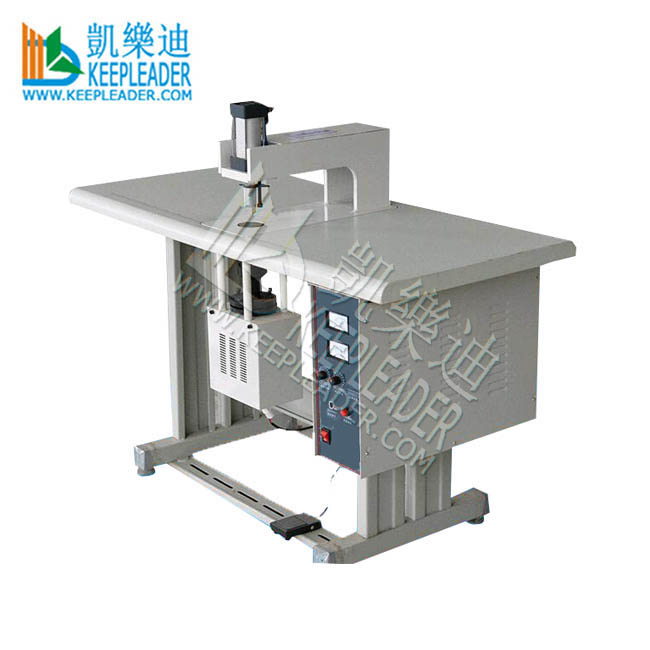

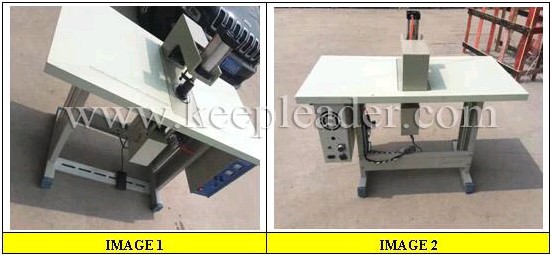

Desktop ultrasonic spot welder

Application

Application scope: riveting, spot welding and ultrasonic cutting

Suitable material: lace, non-woven cloth, ribbon, Fabric, PP film, Nylon belt all kinds of artificial leather, nonwoven fabric, spun-bonded cotton, thermoplastic film, chemical plastic piece, such as nylon, polyster, PVC, PC, PU, TPU, PE, PP, PS etc

Characteristic

Uses ultrasonic piezo ceramic transducer, with stable output

Horn fixed suspension structure

Easy to operate, minimal operator training required

Robust circuit design

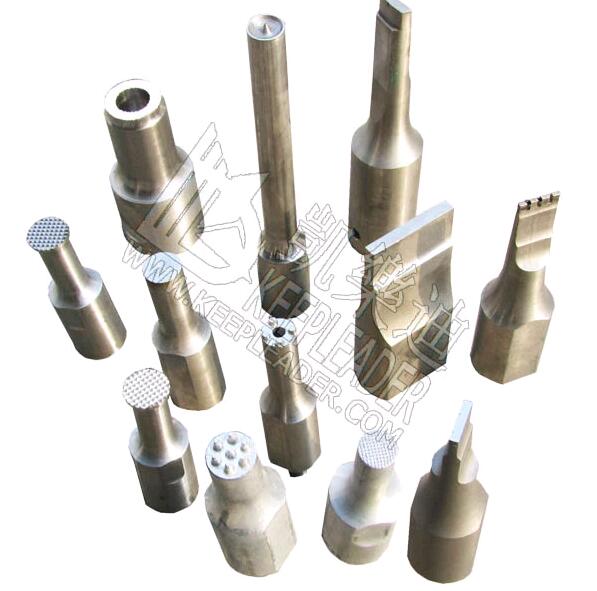

Horn shape can be round, square and other shapes

Comes with hand trigger and pedal switch

Built in processor features for precision controlling

Microprocessor controller is smart and feasibility for various material and thickness

Digital Amplitude is visual to read and display

Back-lit LCD display with optional controller

Ultrasonic load meter scale with optional controller

PLC I/O Connector, and overload protection circuitry

Overload reset is available

Specification

Model

KLC-5035D

Voltage

220V/50-60Hz

Power

500W

Efficiency

20-30 shots/min

Output

35Khz

Welding stitches

1 to 15mm

Compressor

2HP

Dimension

1200*600*1200mm

Net Weight

90KG
