Blister Sealing Welder High Frequency Welding Machine of Auto Turntable Indexing PVC Clamshell Packaging Radio Frequency Welders

Blister Sealing Welder High Frequency Welding Machine

Blister Sealing Welder High Frequency Welding Machine

Blister Sealing Welder High Frequency Welding Machine has 1: Auto bpaper feeding 2: Auto rotary table 3: Auto Unloading packs

Machine Description


Blister Sealing Welder High Frequency Welding Machine

Application

Blister Sealing Welder High Frequency Welding Machine Applied for PVC, PET, APET, PETG, GAG blister sealing and cutting in one machine

Character

Built-in PLC, is convenient to read and operation

One person is available in its operation

Loading, sealing, cutting, and unloading all in one machine

Electronic motor auto compensation in equal HF output

Build-in sensitive anti-sparkle device to protect mold

Four stations, auto feeding, sealing, cutting, and unloading

With oil station, the maximum cutting pressure can reach 40 tons

Parameter

Model

KLR-8KW/15kw

Power

8KW/15KW

Frequency

27.12MHZ /13.56MHZ

  Power consumption

15KVA/25KVA

 Power source

380VAC

Anti-sparkle

5557

Oscillation tube

7T69RB/8T85RB

Upper board

400*600MM/600*900MM

Bottom board

600*800MM/600*900MM

 Pressure mode

Pneumatic

Heating temp

30~250

MFR: KEEPLEADER™ have modified and designed Machine for our customers’ unique and special requirements, please contact KEEPLEADER™ for updated details, for Automatic Clamshell Blister Sealing Machine, pls provide 1: Material 2: Size 3: Sample picture of your packs for technic confirmation

Detailed Illustration

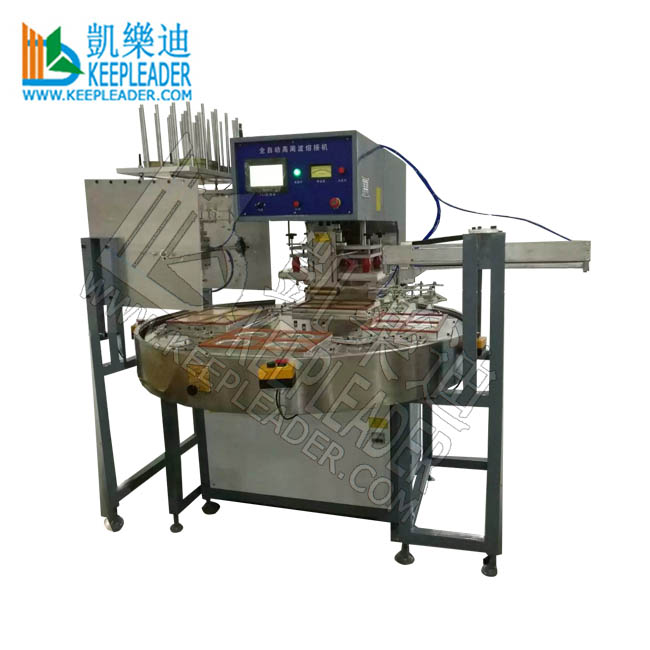

Automatic Clamshell Blister Sealing Machine

Automatic Clamshell Blister Sealing Machine

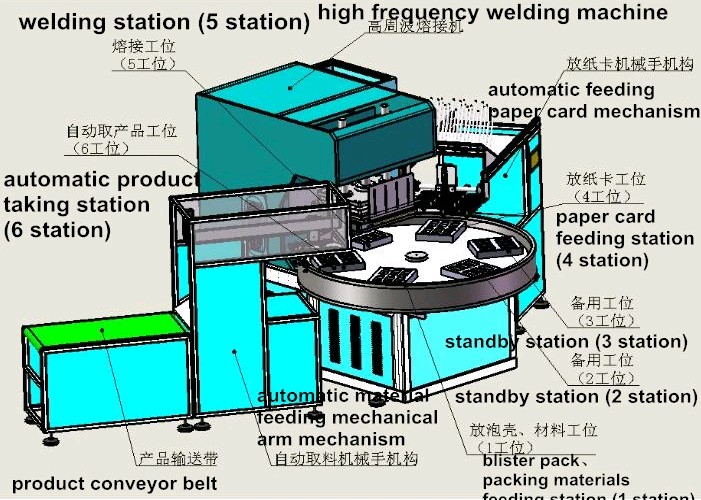

Blister Sealing Welder High Frequency Welding Machine is universal HF welder of Plastic blister sealing in Clamshell packaging production, G-frame structure construction integrated with automatic rotary indexing table and robotic unloading device to achieve automatic production, its HF power output ranges from 5kw to 15kw, supports quick-changeover welding molds of custom-shaped and specified size for versatility

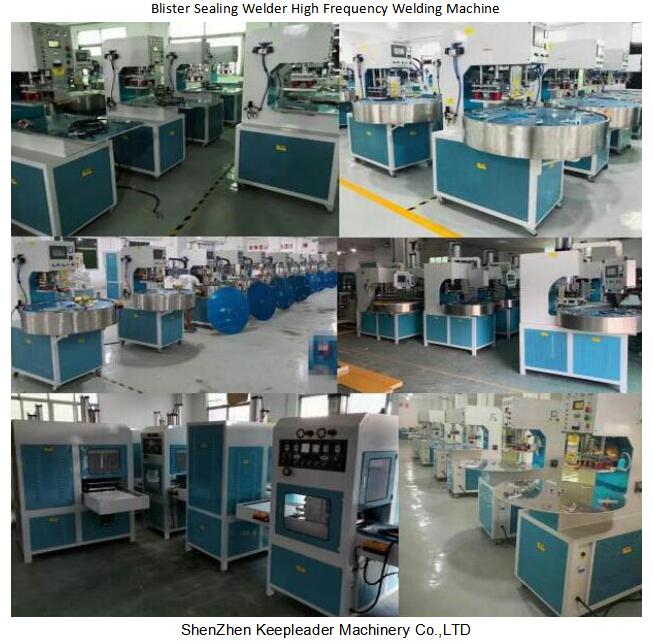

Detailed Images


Blister Sealing Welder High Frequency Welding Machine

Blister Sealing Welder High Frequency Welding Machine takes prominent features in #1: High Automation degree: auto turntable indexing with high frequency alternation; automatic robotic unloading device, auto loading paper card is available to combine a whole automatic production in blister packaging #2:Flexible operation: quick shift in auto and manual mode, close the automatic turntable, the working model also set manual stationary status as a free-standing model, touch screen is convenient accessed in setting, operation, reading with programmable logic control system #3: customized solution: support quick-changeover upper electrodes and bottom nests among different blisters/clamshell in shape and size, automatic feeding paper card and loading parts are acceptable in construction as per demands

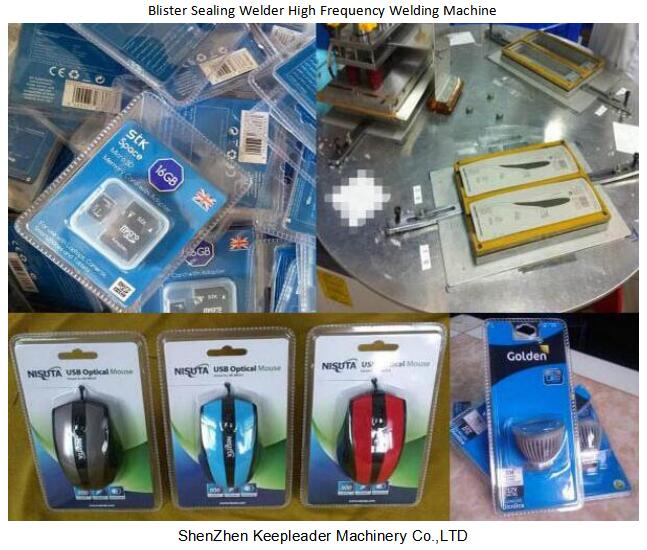

Machine Uses

Blister Sealing Welder High Frequency Welding Machine

 Automatic Clamshell Blister Sealing Machine is profesional packaging fo paper + bsliter sealing with automatic loading and unloading, its workable size is cutomized

Contact Us


Automatic Clamshell Blister Sealing Machine

Pls Contact Ms Helen by E-mail: sales at keepleader.com for Automatic Clamshell Blister Sealing Machine

Cellphone / Wechat / Whatsapp: + 86 13590415784    /   Tel: +86 755 84190358

Website: www.keepleader.com
