PVC Welder Plastic High Frequency Welding Machine of PET Blister Paper Card Sealing_PU_TPU_Leather Embossing Indentation Welders

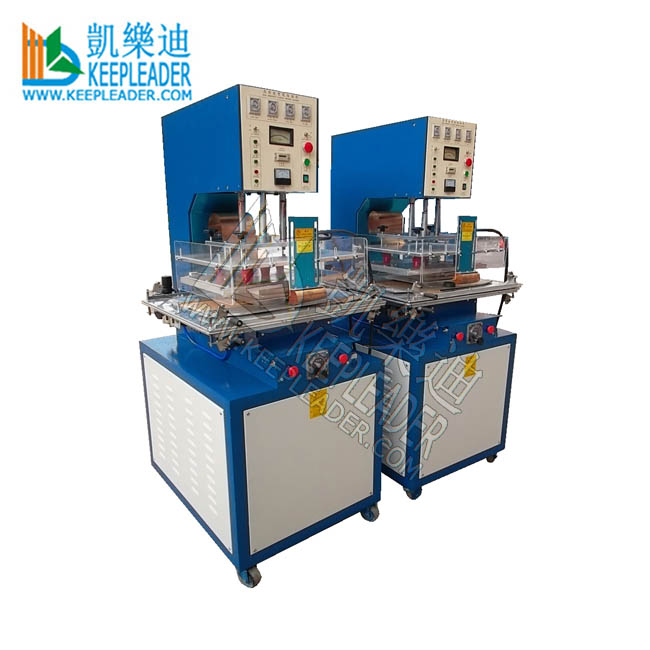

PVC Welder Plastic High Frequency Welding Machine

PVC Welder Plastic High Frequency Welding Machine varies from high frequency power 5kw upto 15kw or feeding device of turntable or shuttle way in manual and automatic activation, the stamping pressure is configurated basing on the maximum processing size,loading file and material thickness, anyway, we can provide you with tailored construction to gratify your production and purchasing budget

Product description

Mainly application
PVC Welder Plastic High Frequency Welding Machine for double-sides, welding of inflatable toy, raincoat, and any PVC, or PVC contained 30% up made of sheets or membrane structure
Character
High Q value oscillation tube, reliable and strong output high frequency complies with international standard: 27.12 MHz The machine can keep static for power sudden failure High sensitive anti-sparkle device NL 5557 to avoid damaging the mould. High quality Imported apparatus European-model high frequency vibration barrel, more reliable and stable Automatic thermostat to keep the temperature at best performance in welding High precision high frequency regulating knob for visible control Low voltage control panel for safety purpose Anodized mould and tooling for longer life-span Over current protection circuit to avoid burning the oscillation tube Power ranges 5kw up to 10kw for various welding size The welding electrode is screw fixed, which is easy replacement High frequency shield to avoid omission is optional Stroke distance and horizontal of electrode are adjustable Pedal valve control and button switches control are optional Thick steel plate bracket, more steady for giving pressure Imported famous brand electronic and pneumatic components
Technique specifications
Model	KLR-5000F	KLR-8000F	KLR-10KWF
Power	5000W	8000W	10KW
Voltage	220V/380V 50/60HZ
Frequency	27.12MHZ		13.56MHZ
Input power	8KVA	15KVA	18KVA
Rectifier	SILICON DIODE
Oscillation tube	7T85RB	7T69RB	E3069
Max pressure	350kg	500kg	800kg
Gap between electrodes	160~200MM
Stroke distance	175MM	200MM	150MM
Size of upper electrode	200*350	400*600	500*700
Size of lower electrode	400*600	600*800	600*800
Range of temperature	30~200°C Adjustable
Welding time	0~10S Adjustable
Productivity	Equal or less 4000times/8h
Net weight	280kg	330kg	360kg
Overall dimension	10006601730	10007201860	10007201860

Please contact KEEPLEADER™ for more information about PVC Welder Plastic High Frequency Welding Machine

Detailed Images

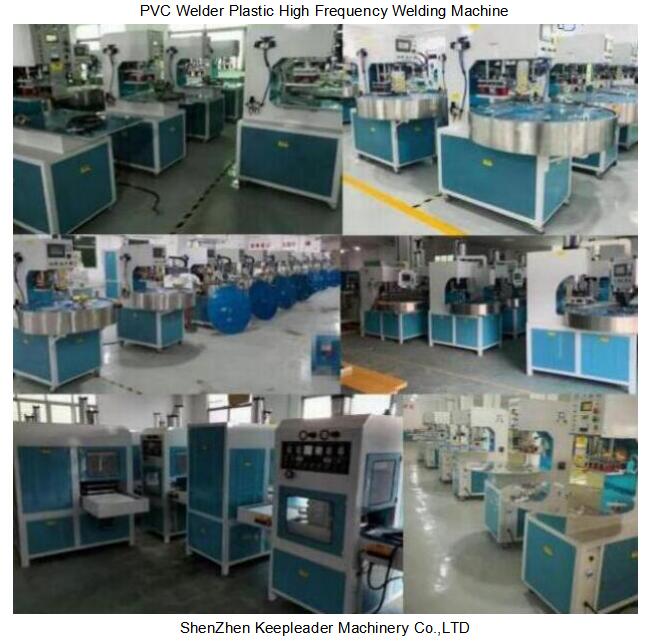

PVC Welder Plastic High Frequency Welding Machine has versatile design of slipway, fixed tray, turntable index in manual and automatic activation that can arrange High frequency power: 5kw to 15kw

Product uses

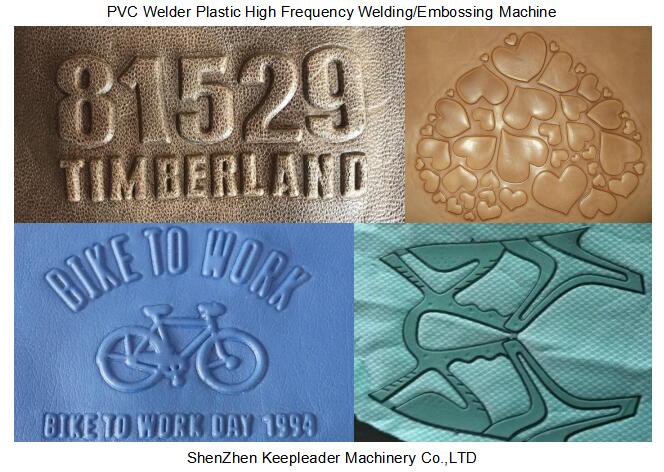

PVC Welder Plastic High Frequency Welding Machine is widely used in industral welding, cutting, embossing, forming of plastic sheet processing, likely PVC/PET Paper card packaging, cloth fabric embossing, decrating codes, sports shoe upper and insole bonding and other similar plastic products' treatment

After-sales service

After purchasing at KEEPLEADER™ is first step of our after-service, all of machines at KEEPLEADER™ has one year guarantee, we provide free samples for

defected parts to do replacement except for human damage, under information for your notice

01: KEEPLEADER™ always posts the new technical file in our homepage that can help our client

in new technical information of machines’ design, character, application, operation, maintenance,

and related, KEEPLEADER™ also welcome our clients feed back the machines’ working condition

that can get one to one service

02: If the machine you purchased has any defects, please contact sales representative

at KEEPLEADER™, we will assign our experienced engineer analyze your case and provide technical

support, in case of damaged parts that cannot repair, KEEPLEADER™ will provide a new parts to replace the defect

03: For any replacement and maintenance, KEEPLEADER™ has user manual and training video

04: KEEPLEADER™ can go to oversea for on-site training

05: KEEPLEADER™ can provide remote training

06: KEEPLEADER™ can provide electric diagram under request
