PVC High Frequency Welding Machine for PVC_EVA_TPU_PET_GAG_PP Welding of Dual Heads High Frequency Welding Machine

PVC High Frequency Welding Machine

PVC high frequency welding machine

PVC High Frequency Welding Machine of dual heads is univeral high frequency welding, used for small size with Convenient position in welding

Product description


Main application

Applied for high frequency blister packaging, soft crease box/case making, inflatable toy, plastic port and valve, raincoat, plastic bags, leather logo embossing, trademark embossing or any PVC and PVC contained 30% up

Character

High Q value oscillation tube

The high frequency complies with international standard: 27.12 MHz

The machine can keep static for power sudden failure

High sensitive anti-sparkle device NL 5557 to avoid damaging the mould.

High quality Imported apparatus

European-model high frequency vibration barrel, more reliable and stable in output

Automatic thermostat to keep the temperature at best performance in welding

High precision high frequency regulating knob for visible control

Low voltage control panel for safety purpose

Anodized mould and tooling for longer life-span

Top amounted cylinder for vertical pressing, which is more uniform pressure

Over current protection circuit to avoid burning the oscillation tube

Power ranges 4kw up to 10kw for various welding size

The welding electrode is screw fixed, which is easy replacement

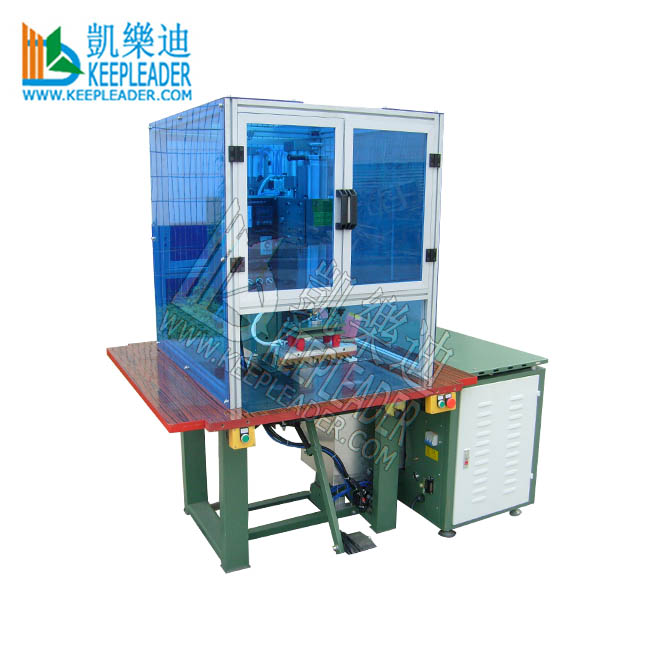

High frequency shield to avoid omission is optional

Giving pressure by level elbow joint, which can save the strength

Stroke distance and horizontal of electrode are adjustable

One oscillation vibration system control double working position

Thick steel plate bracket, more steady for giving pressure

Imported famous brand electronic and pneumatic components

High frequency welding machine for inflatable products

Technique specifications

Model

 KLR-5000TA/KLR-8000TA

Power

 5000W/8000W

Voltage

220V/380V   50/60HZ

Frequency

27.12MHZ

Input power

 8KVA/15KVA

Rectifier

SILICON DIODE

Oscillation tube

 7T85RB/7T69RB

Max pressure

350kg/450kg

The gap of electrode

160~200MM

Stroke distance

60MM

The size of upper electrode

120*290mm

The size of lower electrode

 350*700mm

The range of temperature

30~200°C Adjustable

Welding time

0~10S Adjustable

Way of pressure

Foot operated

 Productivity

3000~4000times/8h

Net weight

 330kg/380kg

Overall dimension

 1800*1200*1600

MFR: KEEPLEADER™ have modified and designed PVC High Frequency Welding Machine for our customers’ unique and special requirements, please contact KEEPLEADER™ for updated details

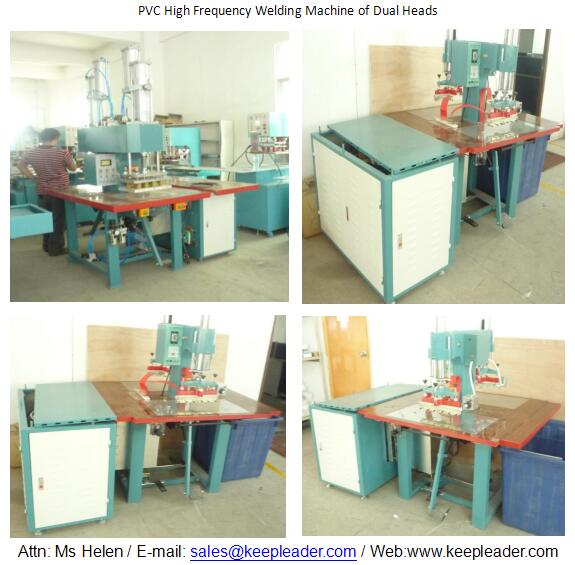

Detailed Images


PVC High Frequency Welding Machine

Product Uses


PVC High Frequency Welding Machine

After-sales service


After purchasing at KEEPLEADER is first step of our after-service, all of machines at KEEPLEADER has one year guarantee, we provide free samples for defected parts to do replacement except for human damage, under information for your notice

01: KEEPLEADER always posts the new technical file in our homepage that can help our client in new technical information of machines’ design, character, application, operation, maintenance, and related, KEEPLEADER also welcome our clients feed back the machines’ working condition that can get one to one service

02: If the machine you purchased has any defects, please contact sales representative at KEEPLEADER,we will assign our experienced engineer analyze your case and provide technical support, in case of damaged parts that cannot repair,KEEPLEADER will provide a new parts to replace the defect

03: For any replacement and maintenance, KEEPLEADER has user manual and training video

04: KEEPLEADER can go to oversea for on-site training

05:  KEEPLEADERTM can provide electric diagram in necessary

06: Remote training is acceptable at  KEEPLEADER

07:PVC High Frequency Welding Machine has one year warranty, during its period, KEEPLEADER provide free components to replace the defected parts
