Blister Packages Heat Sealing Welder High Frequency Welding Machine of Plastic PVC_PET_GAG_PU Embossing Clam Shell HF/RF Packing

Blister Packages Heat Sealing Welder High Frequency Welding Machine

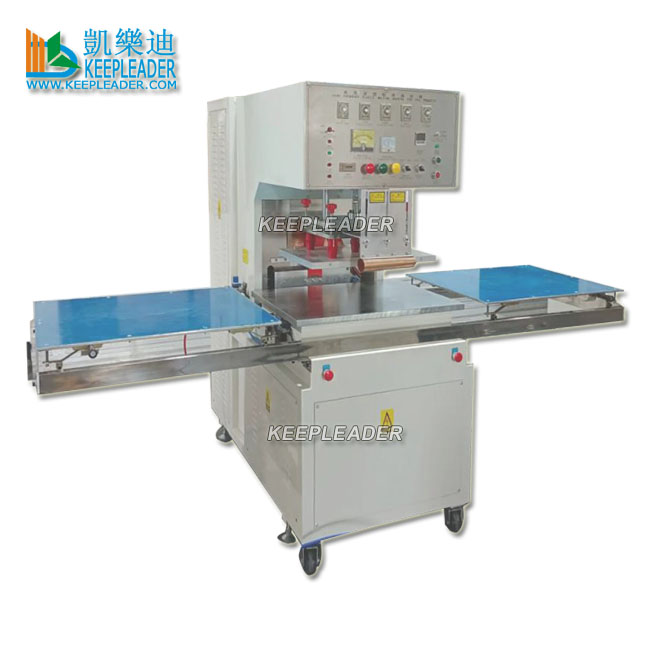

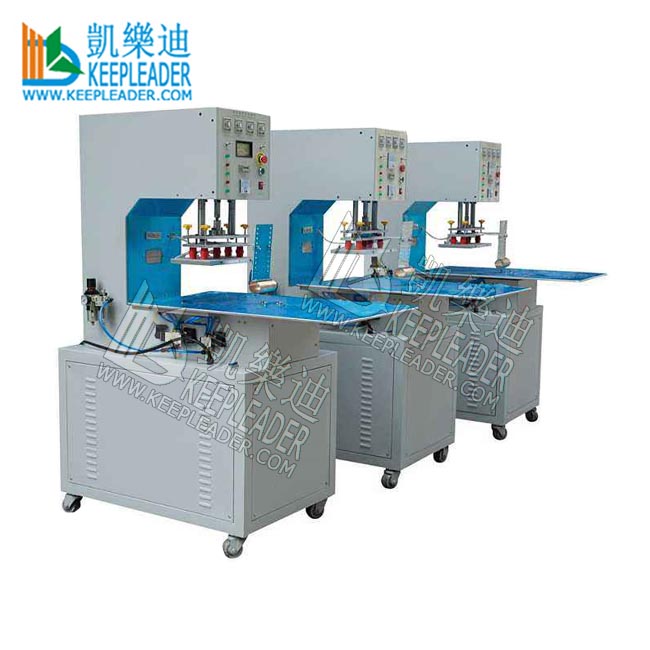

Blister Packages Heat Sealing Welder High Frequency Welding Machine has style: 1: slipway 2: Rotating table 3: Square table 4: Fixed table

Product description

Mainly application
Blister Packages Heat Sealing Welder High Frequency Welding Machine Applied for blister sealing and cutting edges by high frequency welding technology, PVC blister sealing, PVC clamshell sealing, PVC Blister sealing on heating activated coating cardboard, PVC thermoformed box sealing, welding and cutting for any shape products made of PVC or PVC 30% up in membrane structure
Character
High Q value oscillation tube, reliable and strong output high frequency complies with international standard: 27.12 MHz The machine can keep static for power sudden failure High sensitive anti-sparkle device NL 5557 to avoid damaging the mould. High quality Imported apparatus European-model high frequency vibration barrel, more reliable and stable Automatic thermostat to keep the temperature at best performance in welding High precision high frequency regulating knob for visible control Low voltage control panel for safety purpose Anodized mould and tooling for longer life-span Over current protection circuit to avoid burning the oscillation tube Power ranges 5kw up to 10kw for various welding size The welding electrode is screw fixed, which is easy replacement High frequency shield to avoid omission is optional Stroke distance and horizontal of electrode are adjustable Pedal valve control and button switches control are optional Thick steel plate bracket, more steady for giving pressure Imported famous brand electronic and pneumatic components Three or four working position is optional High precision cam/divider
Technique specifications
Model	KLR-5000S/A/E	KLR-8000S/A/E		KLR-10KW		KLR-15KW
Power	5000W	8000W		10KW		15KW
Voltage	220V/380V 50/60HZ
Frequency	27.12MHZ			13.56MHZ
Input power	8KVA	15KVA		18KVA		25KVA
Rectifier	SILICON DIODE
Oscillation tube	7T85RB	7T69RB		E3069		8T85RB
Ma* pressure	350kg	500kg		800kg		1000kg
Electrodes Gap	160~200MM
Active horn	175MM		200MM		150MM
upper electrode	200*350	400*600		500*700		600*900
lower electrode	400*600	600*800		600*800		600*900
Range of temperature	30~200°C Adjustable
Welding time	0~10S Adjustable
Productivity	Equal or less 4000times/8h
Net weight	280kg	330kg		360kg		500kg
Dimension	10006601730	10007201860		10007201860		250021002000

Standard equipment:

Name	Origin	Brand
Air driven components	Taiwan	Airtac
AC contactor	Korean	LG
Relay	Japan	Omron
Electron Tube	Japan	Toshiba
Time controller	Taiwan	CKC

MFR: KEEPLEADER™ has modified and designed Blister Packages Heat Sealing Welder High Frequency Welding Machine to accommodate our customers’ unique and special requirements, pls contact KEEPLEADER™ for tech assessment

Detailed Images

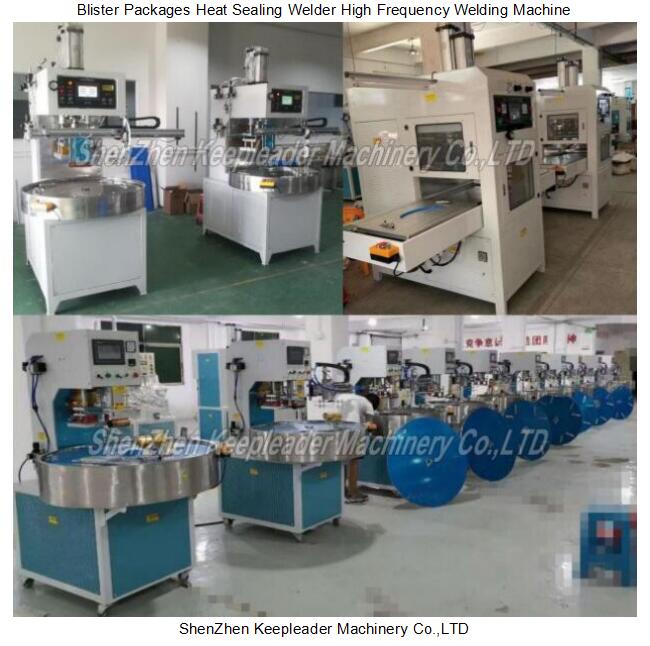

Blister Packages Heat Sealing Welder High Frequency Welding Machine takes prominent features in #1: High Automation degree: auto turntable indexing with high frequency alternation; automatic robotic unloading device, auto loading paper card is available to combine a whole automatic production in blister packaging #2:Flexible operation: quick shift in auto and manual mode, close the automatic turntable, the working model also set manual stationary status as a free-standing model, touch screen is convenient accessed in setting, operation, reading with programmable logic control system #3: customized solution: support quick-changeover upper electrodes and bottom nests among different blisters/clamshell in shape and size, automatic feeding paper card and loading parts are acceptable in construction as per demands

Product Uses

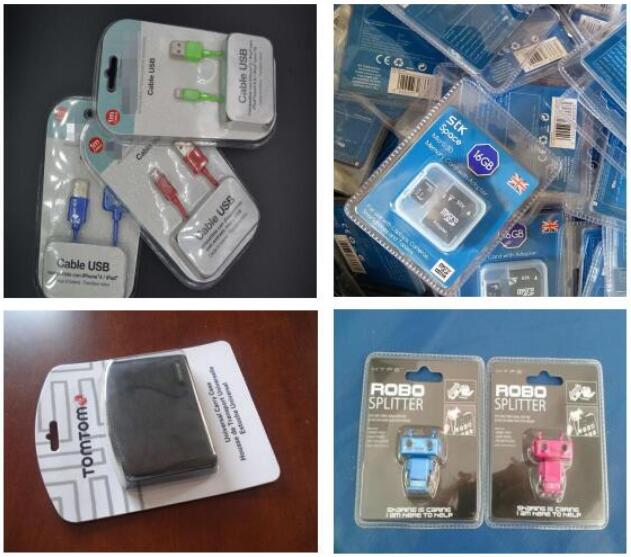

Blister Packages Heat Sealing Welder High Frequency Welding Machine can seal PVC Blister+Blister with cutting, PVC Blister Paper Card No cutting, PET Blister+Blister No Cutting, PET Blister+Paper Card No Cutting, PVC Sheets forming/sealing With Cutting

Our service

KEEPLEADER™ SERVICE

ABOUT PRODUCT

Customized design; Safe and convenient operation

ABOUT FACTORY

Comprehensive management process, leading technology and service team

EXPERIENCE

Internationalization of business process; Rich experience of Non-standard design

AFTERSERVICE

Uniform standard with special difference for each, Professional and Experienced service

MARKET

Yearly 30% Market share increased, One-to-one service

SERVICE PROCESS AT KEEPLEADER™
the clients offer information of the workpieces being welded (eg: picture, materials, sizes, requirements, etc) if have samples, it’s better to send KEEPLEADER™ some sample to perform the welding test, if can be welded, we provide offer sheet, once confirmed, sign a contract, the clients paid the deposit, KEEPLEADER™ start equipment building, after passing the acceptance, and receive the balance payment, KEEPLEADER™ delivery the device to clients

Blister Packages Heat Sealing Welder High Frequency Welding Machine our basic Model in Blister Packaging HF sealing, keepleader improve its configuration with combination of Our field experience and Our clients' practical feeling, pls contact us for more information
