PVC_PET Blister Package Sealing High Frequency Welding Machine of Rotary Table HF Welder In Plastic Clamshell_Paper Card Packing

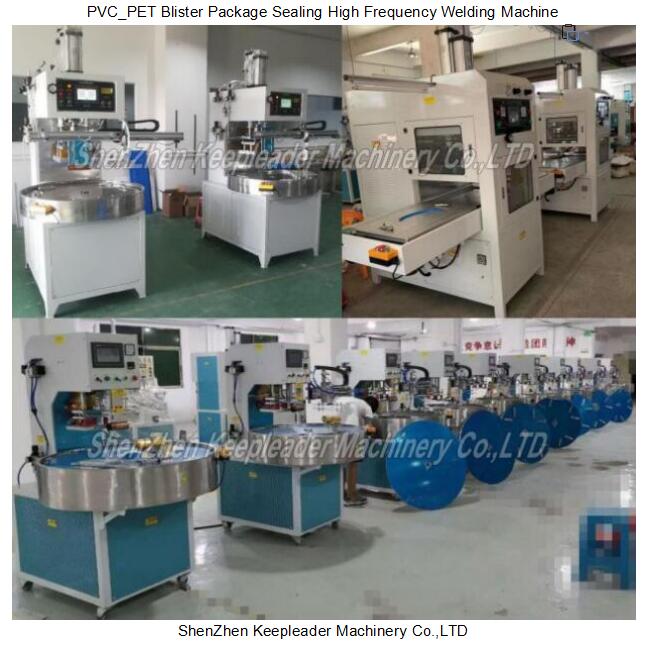

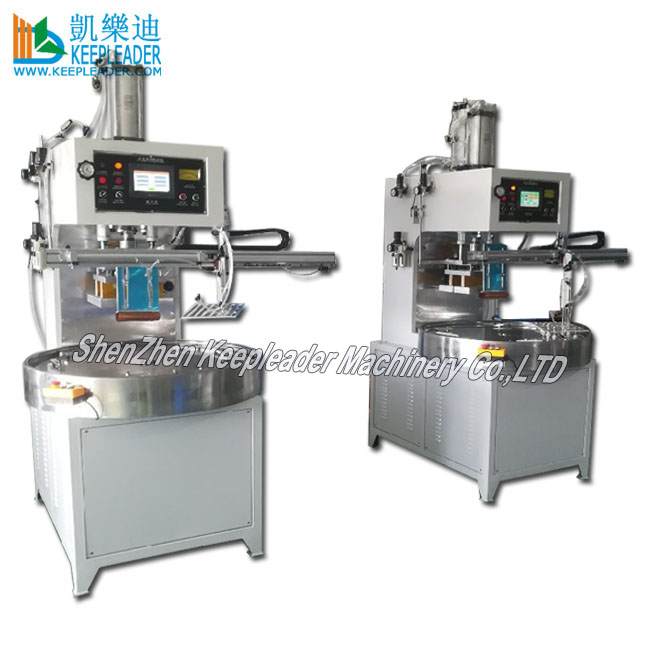

PVC_PET Blister Package Sealing High Frequency Welding Machine

PVC_PET Blister Package Sealing High Frequency Welding Machine is used for sealing of PET Blister packaging at Edge cutting simultaneoully, robot arm also can auto unload the welded packages

Product description


PVC_PET Blister Package Sealing High Frequency Welding Machine

Application

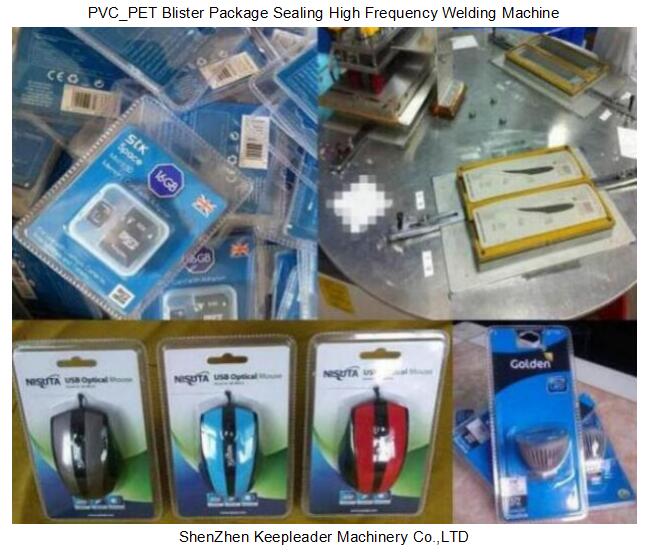

Seal blister of PVC, PET, PETG, GAG, APET

Clear blister packaging

Plastic clam-shell packaging

Plastic blister with plastic blister packages

Plastic blister with cardboard packaging

Positive/negative blister forming and packaging

This model is professional high frequency welding for blister packaging process, but, also can used for other sealing and cutting process, for example, the PU leather cover for pad, safety vests, reflective signs, inflatable toys cosmetics, folding packing box, automatic, medical, rehabilitation, packaging, recreation, textile and clothing, reflective products sealing and cutting process

Parameter

Model

KLR-5000WET

KLR-8000WET

Output

5000w

8000w

Voltage

380v/50HZ/3P

380v/50HZ/3P

Input power

10KVA

15KVA

Frequency

27.12mhz

27.12mhz

Oscillation tube

7T85RB

7T69RB

Anti-spark device

NL-5557

NL-5557

Max pressure

800KG

800KG

Gap of electrode

170mm

170mm

Dimension (mm)

1600*1160*1850mm

1500*1600*1950mm

Net weight

800kgs

1000kgs

Feature

Build-in anti sparkle device, to protect the tooling

C, G shaped frame is optional, made of thick, durable steel

Equipped with special high precision rotary indexing gear controlled by frequency inverter

Touch screen PLC, English operation system

Upper plate is equipped with thermostat to assist on melting by high frequency

With optional switch to choose between hot melting and high frequency melting

European-model square high frequency vibration box, more reliable and stable in output

Three working station, when one station is working, the others can leave time for loading

Safe circuit design, in case of overload, the machine can cut off the power automatically

Equipped with Jamming prevention device, can reduce the leakage of electron magnetic radiation

Optional Features

Fully shielded High frequency welding area with side safty gate

Touch screen programmable HMI / PLC

Protective high frequency radiation shield

Auto-tuning system for high frequency matching process

Hydraulic pressure for big size or thick material

 Note: Above datebase is just for reference, the size is manually measured, if you have crucial demand on any data for your application, please contact sales representatives at KEEPLEADRE to get exact confirmation for updated caused by improving its performance, KEEPLEADER will take our confirmation as contracted obligation


Technology


PVC_PET Blister Package Sealing High Frequency Welding Machine

PVC_PET Blister Package Sealing High Frequency Welding Machine is suitable for sealing different blister packaging

Product Uses


PVC_PET Blister Package Sealing High Frequency Welding Machine
PVC_PET Blister Package Sealing High Frequency Welding Machine is acceptable for sealing blister of PVC, PET and Paper Card
