High frequency blister sealing machine

High frequency blister sealing machine

Product description

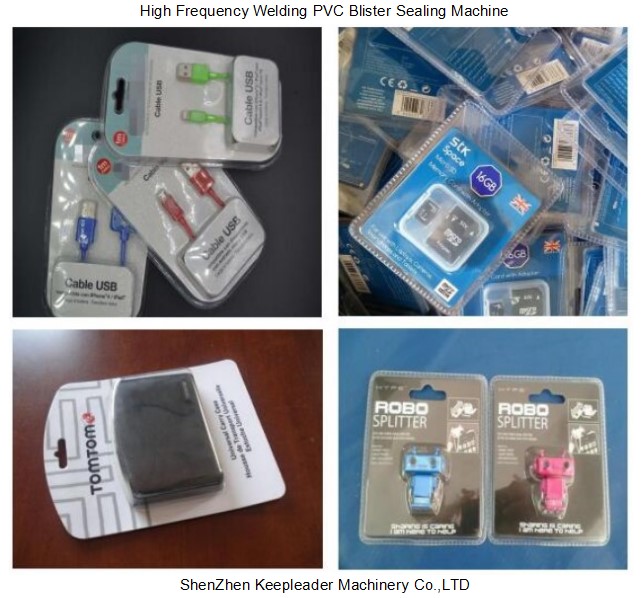

Mainly application

Applied for blister sealing and cutting edges by high frequency welding technology, PVC blister sealing, PVC clamshell sealing, PVC Blister sealing on heating activated coating cardboard, PVC thermoformed box sealing, welding and cutting for any shape products made of PVC or PVC 30% up in membrane structure

Character

High Q value oscillation tube, reliable and strong output, Toshiba brand under requested

high frequency complies with international standard: 27.12 MHz

The machine can keep static for power sudden failure

High sensitive anti-sparkle device NL 5557 to avoid damaging the mould.

High quality Imported apparatus

European-model high frequency vibration barrel, more reliable and stable

Automatic thermostat to keep the temperature at best performance in welding

High precision high frequency regulating knob for visible control

Low voltage control panel for safety purpose

Anodized mould and tooling for longer life-span

Over current protection circuit to avoid burning the oscillation tube

Power ranges 5kw up to 10kw for various welding size

The welding electrode is screw fixed, which is easy replacement

High frequency shield to avoid omission is optional

Stroke distance and horizontal of electrode are adjustable

Pedal valve control and button switches control are optional

Thick steel plate bracket, more steady for giving pressure

Imported famous brand electronic and pneumatic components

Three or four working position is optional

High precision cam/divider

Technique specifications

Model

KLR-5000S/A/E

KLR-8000S/A/E

Power

5000W

8000W

Voltage

220V/380V  50/60HZ

220V/380V  50/60HZ

Frequency

27.12MHZ

27.12MHZ

Input power

8KVA

15KVA

Rectifier

SILICON DIODE

SILICON DIODE

Oscillation tube

7T85RB

7T69RB

Ma* pressure

350kg

500kg

Gap between electrodes

160~200MM

160~200MM

Active horn

175MM

200MM

Size of upper electrode

200*350

400*600

Size of lower electrode

400*600

600*800

Range of temperature

30~200°C Adjustable

30~200°C Adjustable

Welding time

0~10S Adjustable

0~10S Adjustable

Productivity

4000times/8h

4000times/8h

Net weight

280kg

330kg

Dimension

1000*660*1730

1000*720*1860



 Standard equipment:

Name

Origin

Brand

Air driven components

Taiwan

Airtac

AC contactor

Korean

LG

Relay

Japan

Omron

Electron Tube

Japan

Toshiba

Time controller

Taiwan

CKC

MFR: KEEPLEADER™ have modified and designed model for our customers’ unique and special requirements, please contact KEEPLEADER™ for updated details

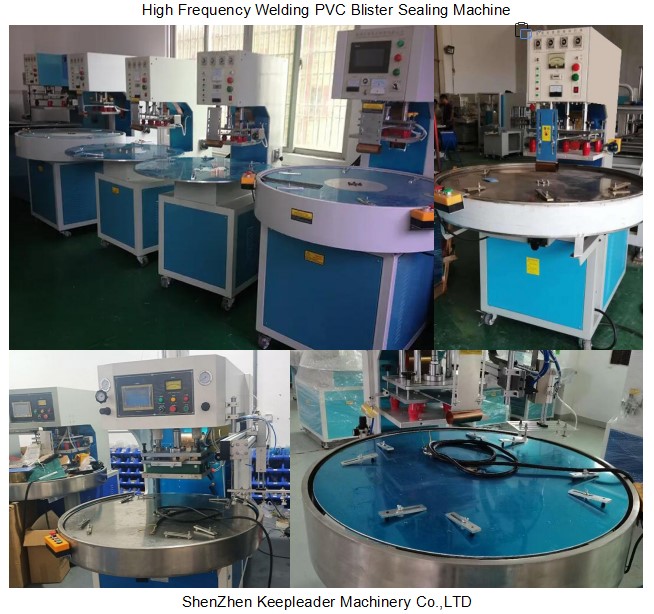

Function illustration

High frequency blister sealing machine of Turntable blister high frequency welding machine

Size illustration


High frequency blister sealing machine of Turntable blister high frequency welding machine

After-sales service


After purchasing at KEEPLEADER™ is first step of our after-service, all of machines at KEEPLEADER™ has one year guarantee, we provide free samples for

defected parts to do replacement except for human damage, under information for your notice

01: KEEPLEADER™ always posts the new technical file in our homepage that can help our client

in new technical information of machines’ design, character, application, operation, maintenance,

and related, KEEPLEADER™ also welcome our clients feed back the machines’ working condition

that can get one to one service

02: If the machine you purchased has any defects, please contact sales representative

at KEEPLEADER™, we will assign our experienced engineer analyze your case and provide technical

support, in case of damaged parts that cannot repair, KEEPLEADER™ will provide a new parts to replace the defect

03: For any replacement and maintenance, KEEPLEADER™ has user manual and training video

04: KEEPLEADER™ can go to oversea for on-site training

05:  KEEPLEADER™ can provide remote training

06:  KEEPLEADER™ can provide electric diagram under request
