PET Blister high frequency sealing and cutting machine

PET Blister high frequency sealing and cutting machine

Product description


Mainly application

Applied for double sides blister packaging for APET,PETG,GAG,PVC, welding and cutting of soft crease box making, toothbrush blister packaging, mobile clearner, belt, watchband, featured in automatic welding and cutting of blister packaging and paper card.

Character

Wide using in environmental protection plastic packing ,toothbrush packing,

environmental production dress-glue products with APET,PETG,GAG materials,

equally can process any materials needing welding and cutting simultaneously.

double-way automatic slipway,back-forth or continous delivering the mould,

accurate-orientation, error±20um.

Adjustable cutting pressure 1-50 ton,stable and realible in output,firm in structure.

Adopting high sensitive anti-sparkle device NL5557  to avoid damaging the mould efficiency.

Operation mode:oil+pneumatic or pure-pneumatic.

Technique specifications

Model

KLR-8000W-SC

Power

8000W

Voltage

220V/380V   50/60HZ

Frequency

27.12MHZ

Oscillation tube

7T69RB

Max pressure

10T/15T

Gap between electrodes

200MM

The moving distance of active horn

150MM

Size of upper electrode

350*500

Size of lowwer electrode

400*600

Range of tempreture

30~200°C Adjustable

Welding time

0~10S Adjustable

Productivity

Equal or less 5000times/8h

Net weight

1T

Overall dimension

1920*1200*2060

Standard equipment:

Name

Origin

Brand

Air driven components

Taiwan

Airtac

AC contactor

Korean

LG

Relay

Japan

Omron

Electron Tube

Japan

Toshiba

Time controller

Taiwan

CKC

MFR: KEEPLEADER™ has modified and designed machine to accommodate our customers’ unique and special requirements, pls contact KEEPLEADER™ for tech assessment

Function illustration

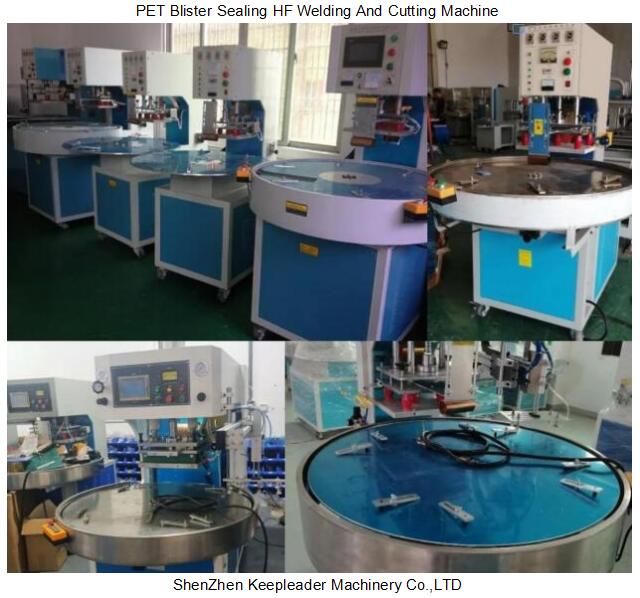

PET Blister high frequency sealing and cutting machine

Product uses

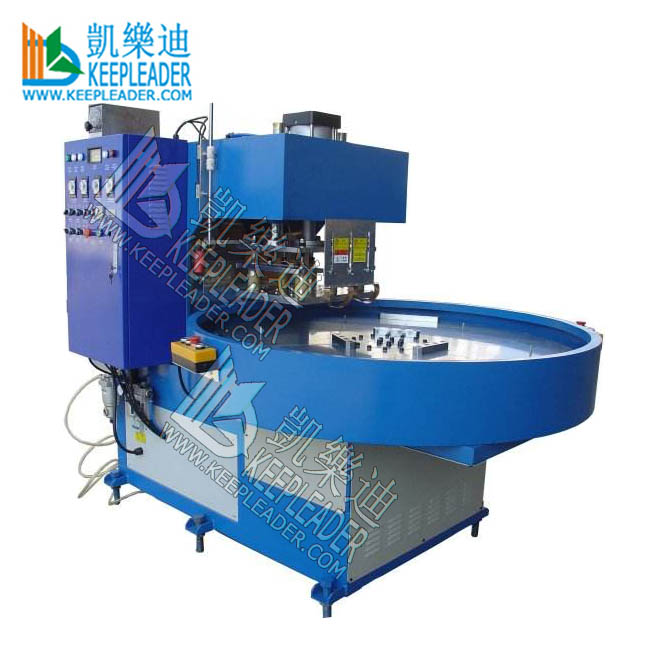

PET Blister high frequency sealing and cutting machine of automatic blister welding machine
