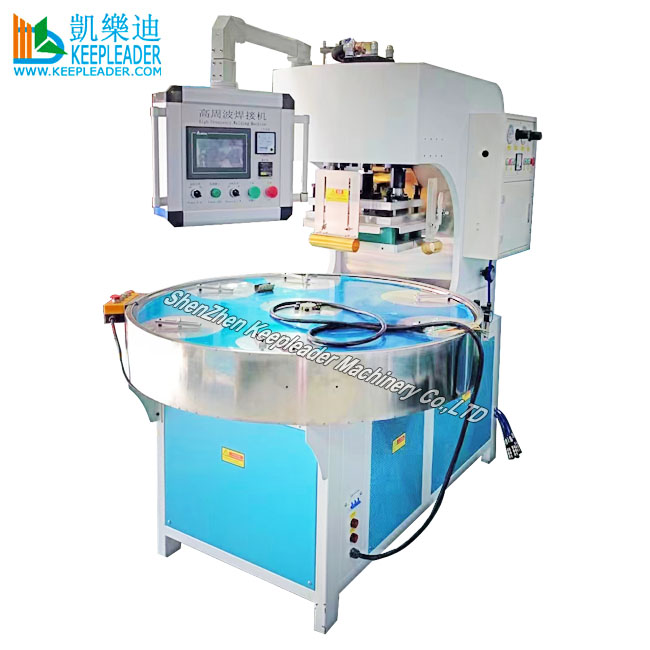

Turntable high frequency welding machine

Turntable high frequency welding machine

Product description


Mainly application

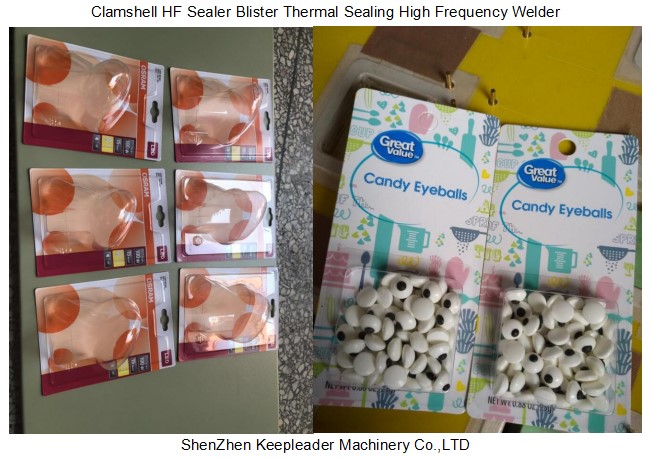

Applied for double sides blister packaging for APET, PETG, GAG, PVC, welding and cutting of soft crease box making, toothbrush blister packaging, mobile clearer, belt, watchband, featured in automatic welding and cutting of blister packaging and paper card.

Character

Wide using in environmental protection plastic packing ,toothbrush packing,

environmental production dress-glue products with APET,PETG,GAG materials,

Equally can process any materials needing welding and cutting simultaneously.

double-way automatic slipway, back-forth or continuous delivering the mould,

Accurate-orientation, error±20um.

Adjustable cutting pressure 1-50 ton, stable and reliable in output, firm in structure.

Adopting high sensitive anti-sparkle device NL5557 to avoid damaging the mould efficiency.

Operation mode: oil pneumatic or pure-pneumatic.

Technique specifications

Model

KLR-8000ST

Power

8000W

Voltage

220V/380V   50/60HZ

Frequency

27.12MHZ

Input power

15KVA

Rectifier

SILICON DIODE

Oscillation tube

7T69RB

Max pressure

600KGS

Gap between electrodes

200MM

active horn

150MM

Size of upper electrode

400*600

Size of lower electrode

600*800

Range of temperature

30~200 Adjustable

Welding time

0~10S Adjustable

Productivity

Equal or less 5000times/8h

Net weight

1.6T

Overall dimension

1200*1300*2060

MFR: KEEPLEADER™ have modified and designed model for our customers’ unique and special requirements, please contact KEEPLEADER™ for updated details
