High Frequency Welding Machine For Sport Shoe Footwear_Shoe Insole Fusing_Making of High Frequency PU Footwear Welding_Embossing

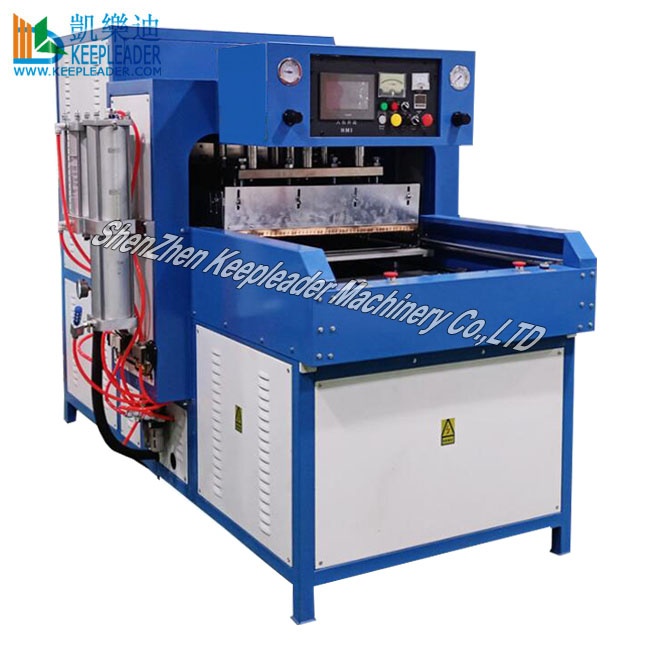

High Frequency Welding Machine For Sport Shoe Footwear

High Frequency Welding Machine For SportShoe Footwear is used for 3D PVC/TPU/PU Embossed Label/Badge/Sport ShoeUpper/Shoe Insole Welding/Embossing/Fusing/Making

Product description

Application
High Frequency Welding Machine For Sport Shoe Footwear is mainly used for sports shoe cover, insoles molding, footwear trademark, purses, nameplate in process of welding, cutting and embossing, can also be used for APET, PETG, PVC, PP sheet soft creasing to make plastic fold box and blister, clamshell sealing and edge trimming production
Character
Unilateral, double sliding table design, one person is ok in its operation With hydraulic booster device, be qualified for seal, cutting, cutting, forming and embossing in one machine NL-5557 anti-sparkle device to protect high frequency system and mold in safe production European standard coaxial high frequency oscillation system and circuit protection equipped, when the current is higher that its normal rate, the machine can cut off automatically
Parameter
Model	KLR-8KWTS	KLR-12KWTS	KLR-15KWTS
Power	8kw	12kw	15kw
Frequency	27.12MHZ
Input power	15kva	18kva	25kva
Oscillation	7T69RB	3130RB	8T85RB
Pressure	15000kg	20000kg	25000kg
Travel distance	100mm
Upper	350*450mm	350*500mm	400*500mm
Down electrode	350*450mm	350*500mm	400*500mm
Pressing mode	Hydraulic+ Pneumatic
Rectifier	Silicon Diode
Power supply	50/60HZ AC380V 3P
Welding time	0---10s
Productivity	360pc / h
Net weight	1500kgs
Overall size	120012002200

MFR: KEEPLEADER™ have modified and designed High Frequency Welding Machine For Sport Shoe Footwear for our customers’ unique and special requirements, please contact KEEPLEADER™ for updated details

Standard equipment:

Name	Origin	Brand
Air driven components	Taiwan	Airtac
AC contactor	Korean	LG
Relay	Japan	Omron
Electron Tube	Japan	Toshiba
Time controller	Taiwan	CKC

pls contact KEEPLEADER™ for more info and tech assistance

KEEPLEADER™ has designed and modified High Frequency Welding Machine For Sport Shoe Footwear to accommodate our customers' unique and special requirements

and advise us under info

❶ Material & Size

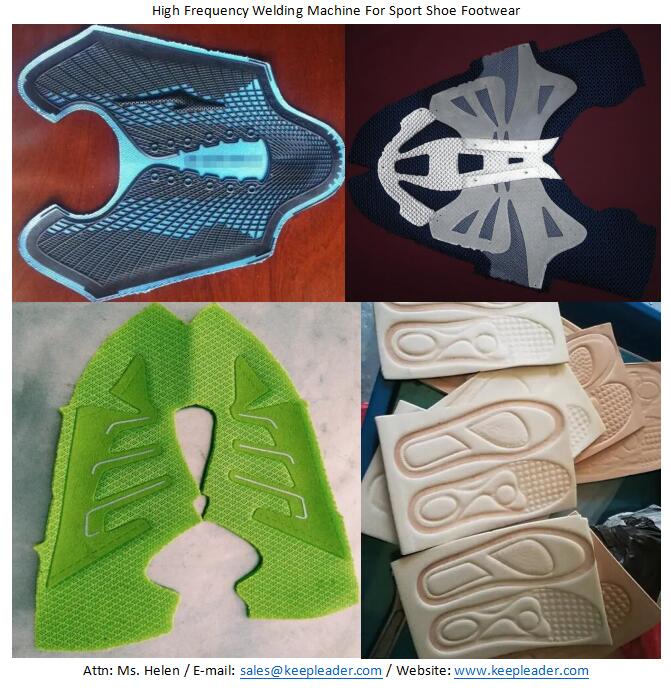

❷ Sample Picture

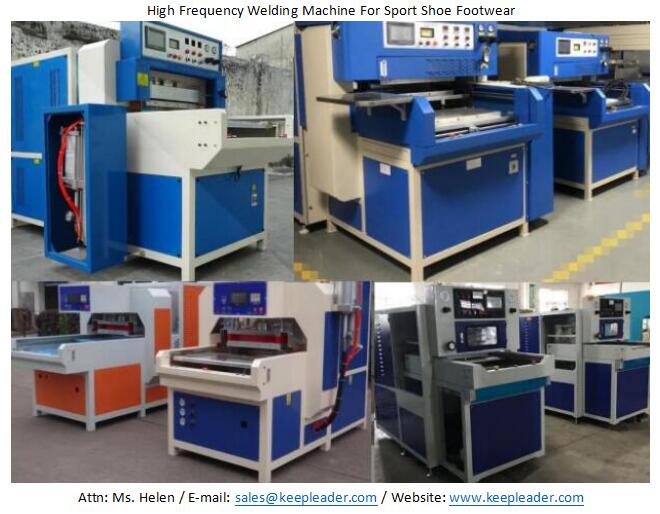

Detailed Images

In the past several years,High Frequency Welding Machine For Sport Shoe Footwear has revolutionized footwear production with a cheaper and safer method than traditional heating technique like glue,heat press sealing, particularly for footwear vamp welding and insole embossing,High frequency welding machine generate interior heating in molecular scale under electromagnetic field of positive and negative high frequency replacement that fuse pieces together to become one with an impenetrable seal through molecular friction

Product uses

High Frequency Welding Machine For Sport Shoe Footwear welding and embossing,TPU,PU,PVC Shoes vamp welding and insole embossing, in addition,High Frequency Welding Machine is suitable for PVC,PETG,APET,GAG plastic welding, widely used for handbag making, small spraying toys, leather goods, furniture, clothing and shoes embossing tool for plastic inflatable products, trademark, box, air tool, blanket, package bag, heat water bag, medical care objects, stationary, photo album, PVC folding box, emblem etc garment and upper shoe and so on

Contact Us

KEEPLEADER, we can assist on optimization your footwear production with tailored High Frequency Welding Machine For Sport Shoe Footwear, our engineer will verify your productive procedures and validate your sketches, photos or 2D and 3D CAD models to figure out the best solution for your production, then, we’ll create a timeline for production on your equipment and construct your machinery with transparent communication every step of the way, believe that great-efforts of our tech team can results in your gratification
