Plastic Blister Card Packaging High Frequency Welder of Rotary Round Table Indexing PET_PVC Clamshell Sealing HF Welding Machine

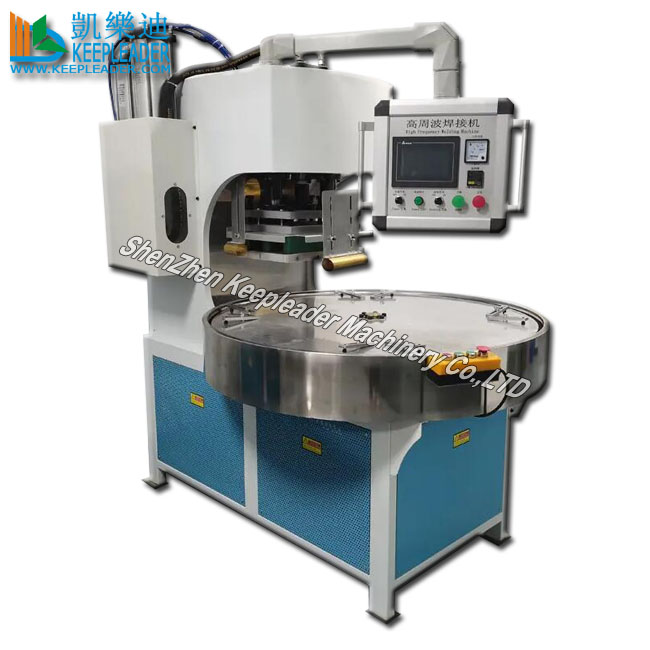

Plastic Blister Card Packaging High Frequency Welder

Plastic Blister Card Packaging High Frequency Welder

Plastic Blister Card Packaging High Frequency Welder adopts 5kw~15kw radio frequency power output in universal HF bonding principles that is dielectric welding in plastic blister packaging, the PVC,PET clamshell or cardboard sandwiched packages are fused at the closed joining edges by applying localized radio frequency energy under controllable melting pressure, because of the random frictional heat in molecular scales at the armed bonding layers, the blister itself melt to intermingled connection, the commodities trapped inside of blister are protective in packing process, which is prominent advantage comparing to traditional heat-press blister sealer

Product description


Clamshell Packaging/High Frequency Blister Packaging Machine

Mainly application

Plastic Blister Card Packaging High Frequency Welder is used for mass production of blister sealing and cutting process, this model is designed for sealing clamshell on paper card with cutting into pieces, and APET, PETT Blister sealing and cutting process

Character

Designed loop of HQ oscillation under low energy consumption

Welding, cutting, plane hole punching in one machine

Optional of cutting pressure 1-30T, which is ok for big welding area

Automatic working-table, 3 up 6 working position is optional

High pressure turntable splitter, position tolerance is within 10um

With High sensitive anti-sparkle device, avoid damage the mould

International design of oscillation barrel, which is reliable and stable in output

Technique specifications

Model

KLR-15KW-4AC

Power

15KW

Voltage

380V 50/60Hz

Frequency

27.12MHz

Input power

25KVA

Rectifier

SILICON DIODE

Oscillation tube

8T85RB

Max pressure

30T

Operation mode

oil pressure

Max distance of electrodes

200MM

active horn

100MM

The size of upper electrode

400*500 mm

The lower of lower electrode

400*500 mm

The range of temperature

TC~200°C Adjustable

Welding time

0~10S Adjustable

Productivity

Equal or less 5000times/8h

Net weight

1.6T

Overall dimension

2250*1550*2200 mm

MFR: KEEPLEADER™ have modified and designed Plastic Blister Card Packaging High Frequency Welder for our customers’ unique and special requirements, please contact KEEPLEADER™ for updated details

Detailed Images

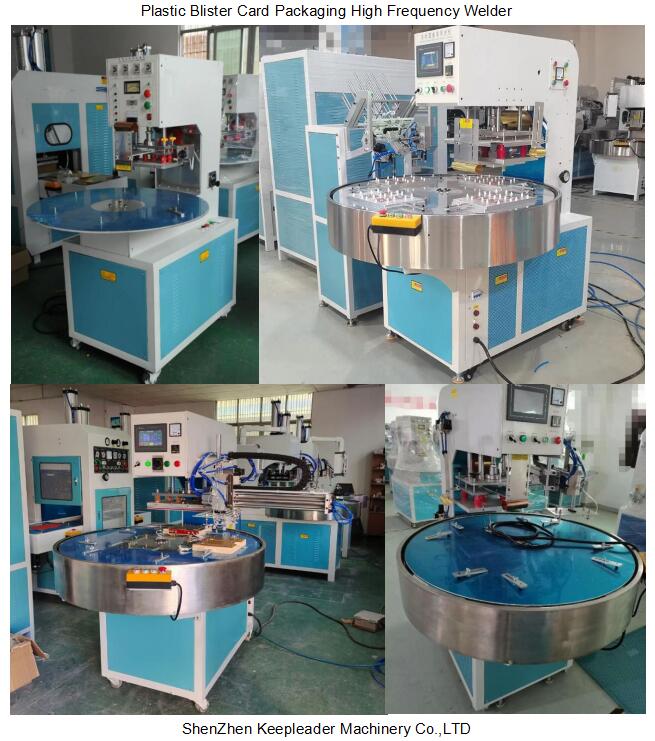

Plastic Blister Card Packaging High Frequency Welder

Plastic Blister Card Packaging High Frequency Welder integrates intelligent controlling system in swing armed touch screen,automatic round table indexing, and robotic arm unloading device, pneumatic driven pressure,HF bonding and edge trimming in one standing-along machine that is additional possibility combined into belt conveyor in auto collection of completed blisters,PVC Blister or polymer coated cardboard is popular in HF welding of plastic packaging, its polar molecular structure and high dielectric loss qualities make it an excellent material for making variety of plastic blisters that need strong hermetic seals, but PVC has negative side that have come under growing criticism from environmental organizations and regulatory bodies, PVC is a significant cause of environmental and biological harm throughout it entire existence, as a result, there has been significant shift away from its blister packaging,PETG is ideal blister material in packaging field,that is also adaptable in high frequency welding, because of its rigid property, necessitate applying high pressure in edge trimming during bonding process, that is predetermined in our construction

Product uses

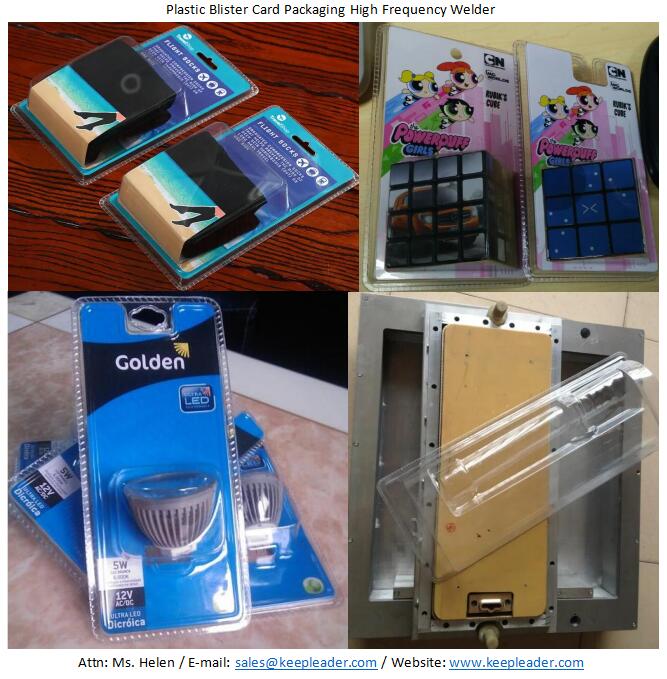

Plastic Blister Card Packaging High Frequency Welder

Plastic Blister Card Packaging High Frequency Welder takes classification in plastic blister packaging machine, which is suitable versatility in dimensional construction, controlling system, loading size,applied melting pressure and other predetermined elements that involved in clamshell packing process, likely seal blister of PVC,PET,PETG,PET-GAS,APET, clear blister packaging,plastic clam-shell packaging, plastic blister with plastic blister packages,plastic blister with cardboard packages,positive/negative blister forming and packaging, in addition,Plastic Blister Card Packaging High Frequency Welder has multi-purposed production,which can be used for industrial like PU leather cover for pad, safety vests, reflective signs,inflatable toys,cosmetics, folding packing box, automotive, medical, rehabilitation,pack, aging, recreation, textile and clothing, reflective garments and etc

Contact Us


To ensure our customers have the best Plastic Blister Card Packaging High Frequency Welder for their plastic clamshell packaging production, it is best to consult with keepleader’s expert, while heat-press sealing, ultrasonic welding, impulse sealing and radio frequency bonding for many applications, one may work better that the other depending on individual achievements, keepleader will assist on your selection in best technology for your PVC,PET blister packaging production
