Plastic Cylinder Tube Bottom Sealing Gluing Machine of PVC_PETG Packaging Cylindrical Boxes Making Automatic Cementing Equipment

Plastic Cylinder Tube Bottom Sealing Gluing Machine

Plastic Cylinder Tube Bottom Sealing Gluing Machine attains gratification in resulting of 4 working position in automatic rotary table indexing,auto localized bottom sealing in effective firmly gluing without scratching and denting performance,satisfying versatile diameters,height and thickness in plastic cylinder bottom mounting,taking design of quick-interchangeable molds and setting alignment in adjustable mounting slot at holding plate and adopting programmable logic control in coupling with touch screen

Product description

---

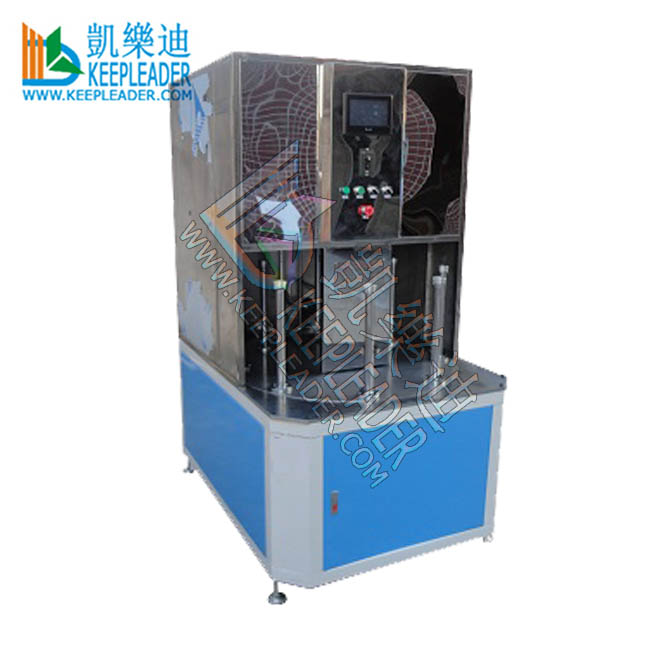

Plastic Cylinder Tube Bottom Sealing Gluing Machine

01: Parameter

Model	KLY-2040ET
Power	3000w
Power Supply	110v-240v, 50hz/60hz
Workable size	Diameter: 40~200mm/ Length:10~400mm
Material thickness	0.15~0.6mm
Air pressure	0.6mpa 350L/min
Gluing speed	800~1000pcs/hour
Precision	0.1mm
Controlling	PLC
Driving system	Eight-station divider
Overall size	900*1300*1780mm
Net weight	500kgs

02: Character

Automatic glue the bottom of PVC, PET cylindrical box

Rotary round table continuous positioning

The size of cylindrical box is changeable

PLC operation system is visible and convenient

Labor and cost save

Can combined with automatic production line

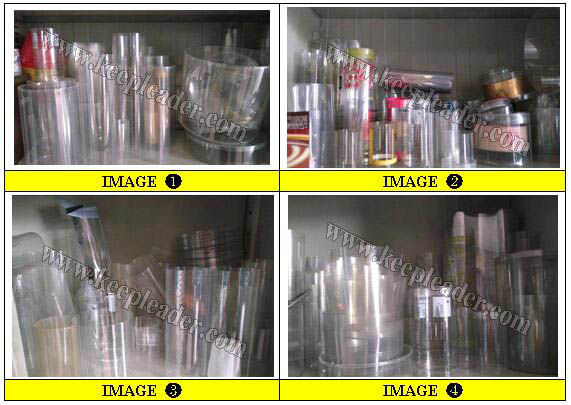

Product uses

---

Plastic Cylinder Tube Bottom Sealing Gluing Machine can execute bottom gluing in plastic cylindrical box making process,that is made of PVC,PETG, APET for clear/transparent packaging, the majority of applicable packing covers candy,gift,toys,stationery,umbrella, fishing tools, crisp food and fashion food and etc

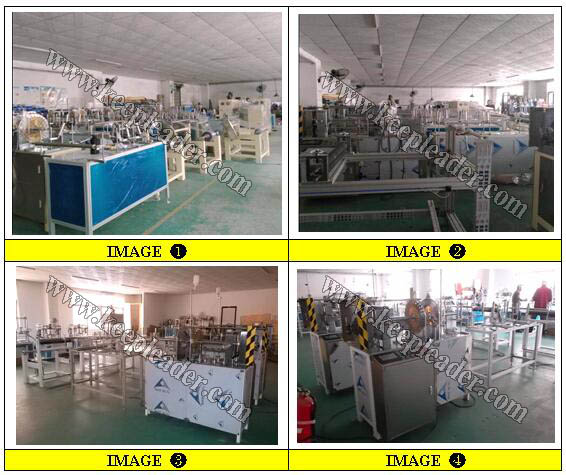

Comapny overview

---

Plastic Cylinder Tube Bottom Sealing Gluing Machine is the last process in PVC_PET Cylinderical box making, which will combine with other productive machines to organize a whole cycle production line, likely cylinder tube forming, edge curling, Lid/bottom making and shape cutting machine

Contact Us

---

Keepleader, we are one of expertized supplier in transparent plastic packaging machines,Plastic Cylinder Tube Bottom Sealing Gluing Machine applies unavoidable bottom sealing process in PVC,PET Cylindrical box making, we can supply all of involved machines to integrate an automatic production line, likely cylindrical tube forming, edge curling, lid/button/cap forming and shaped cutting machine that depends on your productive configuration and purchasing budget in versatile modular productive units of flexible combination, believe that our experienced tech team can work out a reliable solution that integrate practice-proved minutiae to improve the efficiency and save the expense in convenient operation, maintenance, in case of imperceptible items you cannot detect here, kindly bestow you concerns upon us for ultimate validation
