Plastic Welding Handheld Ultrasonic Spot Welder of Portable Ultrasound Sealing_Bonding_Riveting_Inserting ABS_PP_PE Welders Tool

Plastic Welding Handheld Ultrasonic Spot Welder

Plastic Welding Handheld Ultrasonic Spot Welder

Plastic Welding Handheld Ultrasonic Spot Welder is movable ultrasonic manual welding tool of handheld type, it is composed of ultrasonic generator, ultrasonic converter, and customized horn, this ultrasonic system can be used in conjunction with corresponding pneumatic actuated spot welder of standing-along, and can also be directly connected with combined structure with a transducer, an amplitude modulator and welding head for automatic operation, comparing with other traditional processes (such as gluing, ironing or screw fastening,etc), it has the characters of low energy consumption, hih efficiency, no deformation, no pollution, form welding and convenient operation, the ultrasonic power output ranges 300w to 800w basing on specified ultrasonic frequency 28khz or 35khz, moreover, additional configuration and functionality both are acceptable in our construction

Product description


Portable ultrasonic welding machine, Spot welder

Mainly Application

Plastic Welding Handheld Ultrasonic Spot Welder is used for Spot welding, riveting, screw imbedding, appliqué welding, often used in the field of stationery industries, consume electronics industry and electronics industry

Introduction of Ultrasonic handhold welder

ultrasonic welding machine is applied for plastic welding process, like, ultrasonic ABS welding, ultrasonic Acrylic welding, ultrasonic PVC and ABS welding, ultrasonic PA welding, ultrasonic PC welding, ultrasonic PE welding, ultrasonic pp welding, ultrasonic PE welding, ultrasonic PP welding, ultrasonic PS welding, ultrasonic PVC welding.

Characteristics

1.Proprietary anti-corrosion technology, even in the harsh acid salt (such as electroplating factory) working environment, the service life of up to ten years.
2. With imported high-power device driver, the output power of the strong.
3. It is the latest line of forward control; ultrasonic wave density can increase by more detailed cleaning, cleanliness higher.
4. Years of continuous improvement, thoroughly tempered, quality, rock-solid

Advantages

1:low power consumption, firm welding, low noise, small-sized, dust-proof, high performance 2:automatic frequency-tuned system: take PLL for the ultrasonic circuit control 3: with pedal switch to convenient control 4: compacted, space-saved, convenient to transport

parameter

Model

KLC-3028/KLC-5028/KLC-8028

Power

300w,500w,800w

Voltage

220V/50Hz 110V/60Hz

Output Frequency

28kHz/35kHz/40kHz

Cohesion Specification

1-15mm

Cooling mode

Fan cooling

Working mode

Separated excited

Volume

268*168*198mm(L*W*H)

Net weight

7.5KG

Gross weight

10kgs

MFR: KEEPLEADER™ have modified and designed Plastic Welding Handheld Ultrasonic Spot Welder for our customers’ unique and special requirements, please contact KEEPLEADER™ for updated details

Note: The parameter herein stated is manually measured, the actual machine has possibility in little difference, if have crucial demand in its application, please double check with our sales, only paper confirmed will be regarded as contracted obligation

Machine Uses

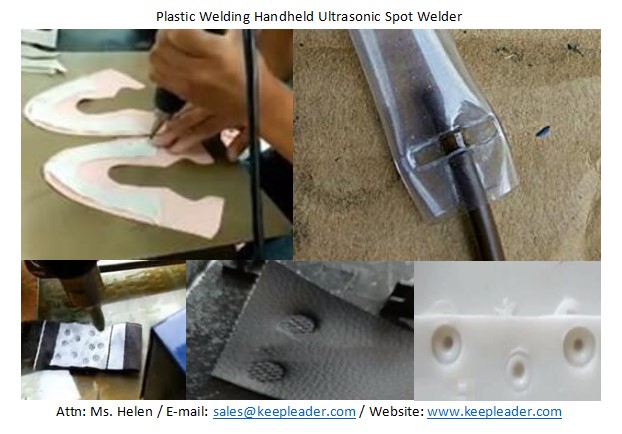

Plastic Welding Handheld Ultrasonic Spot Welder has wide ranges of practical processes in bonding for thermoplastic,non-woven,and so on fusion, riveting, spot welding and so on, mainly used in textile, clothing, shoes, leather, electronics, toys automotive parts, plastics and other industries

Plastic Welding Handheld Ultrasonic Spot Welder has wide ranges of practical processes in bonding for thermoplastic,non-woven,and so on fusion, riveting, spot welding and so on, mainly used in textile, clothing, shoes, leather, electronics, toys automotive parts, plastics and other industries

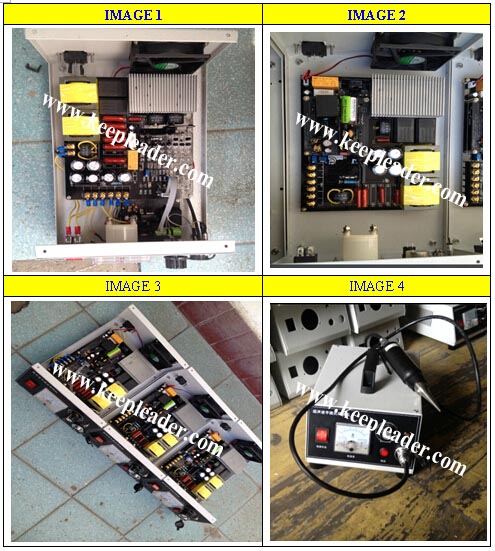

Detailed images

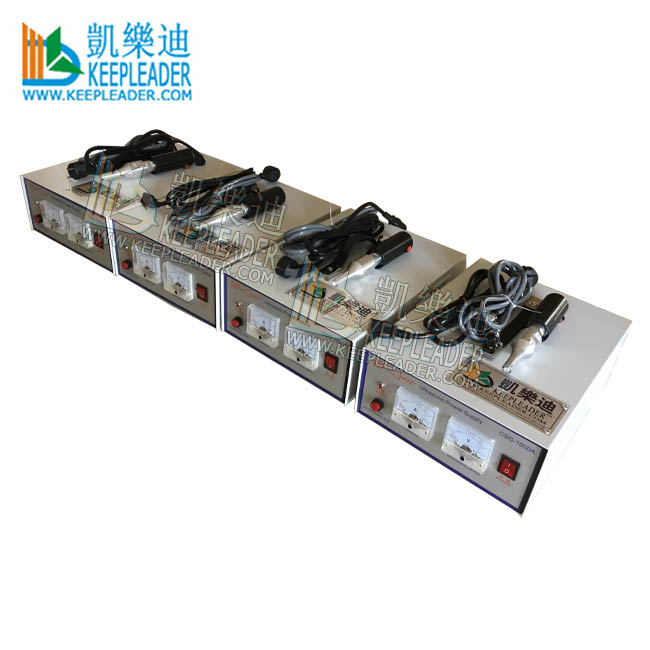

Plastic Welding Handheld Ultrasonic Spot Welder

Plastic Welding Handheld Ultrasonic Spot Welder has one year warranty, the provide free parts to replace the defected components within one year after receiving the product, we will provide professional technical support and free placements, consumables are not included, even after a one-year warranty, as long as your buy it from us, we will provide technical support, but replacements are charged

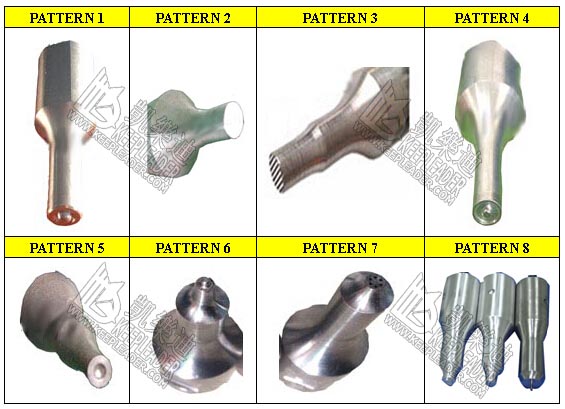

Ultrasonic sonotrode


Plastic Welding Handheld Ultrasonic Spot Welder

Plastic Welding Handheld Ultrasonic Spot Welder must have tailored acoustic tool, named ultrasonic horn, which will comply with your practical bonding process in welding shape, pattern, size and thickness, when you place the order, please inform us what material you’d like to weld and which welding head you want and exact size, the product is customized, so, please keep in touch with us via email

Contact Us


Plastic Welding Handheld Ultrasonic Spot Welder has acoustic tool, which mounted with the ultrasonic converter stack, must tune the amplitude for resonant vibration, otherwise, has possibility of causing squeaky noise or burning the ultrasonic generator, moreover, if you want to modify or disassemble this acoustic tool, please contact keepleader first, our professional technicians will provide you with detailed technical guidance, failure caused b unauthorized modification is not included in the after-sales service, but, at any status, our tech consultation is freely provided
