Ultrasonic Plastic Welding Machine Manufacturer of ABS_PC_PS_PP_PVC Fabric Sealing Equipment 15k_20k Ultrasound Welder Supplier

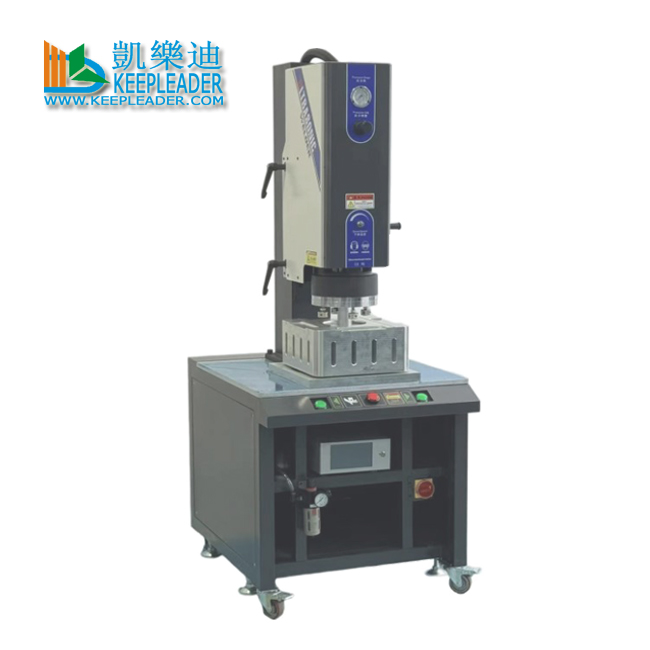

Ultrasonic Plastic Welding Machine Manufacturer

Ultrasonic Plastic Welding Machine Manufacturer has 15khz, 20khz, and Ultrasonic Power:2kw, 2.6kw, 3200w, 4200w and 5200w with Customized Ultrasonic Sonotrode

Product description

Ultrasonic Plastic Welding Machine Manufacturer

Ultrasonic Plastic Welding Machine Manufacturer of working principle

Ultrasonic Plastic Welding Machine Manufacturer operate by inducing ultrasonic frequency in thermoplastic components that is converted into heat between the welded plastic laminates, frictional heat is produced, so that thermoplastic parts melt and an insoluble connection between parts is forged in a very short period of time, the melting points of both working pieces is nearly equivalent which helps to form a uniform weld area, the welded area is usually as strong as the matrix material

Ultrasonic Plastic Welding Machine Manufacturer of application fields:

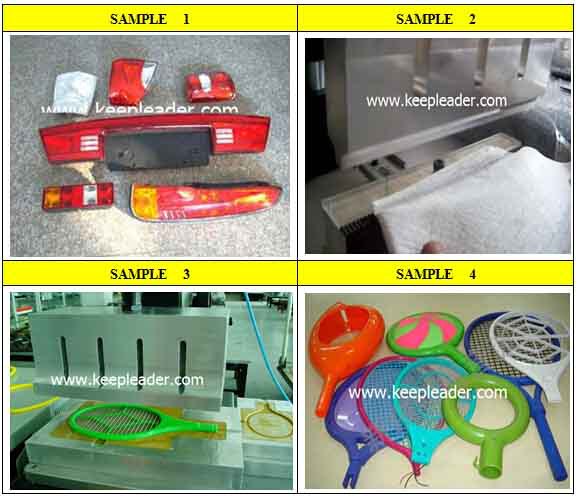

Widely used in the automotive industry, electronic industry, medical industry, household appliances, woven apparel, office suppliers, packaging industry, toy industry and so on

Such as plastic body parts, car doors, car dashboard, lights, mirrors, sun visor, interior parts, filters, reflective material, reflective spike, bumper, cable motorcycle, plastic filter, radiator, tanks, pallet plates; Plastic electronics: prepaid water meters, communications equipment, atheism phone, mobile phone accessories, cell phone case, battery case, charger, maintenance valve regulated lead-acid batteries, 3-inch floppy disk, U disk, SD card, CF card, USD connectors, Bluetooth; Toys stationary: folder, album, folding boxes, pp hollow board, pen loops, ink cartridges, toner cartridges; medical dialy: watches, kitchen utensils, oral liquid bottle, drip caps, mobile phone accessories, gold soft brush, daily necessities, health supplies, children’s products, air mattresses, clothes hangers, tool holder, coffee pot, cover and civil speaker, grille metal surface

Ultrasonic Plastic Welding Machine Manufacturer of Characters

01: Japan original piezoceramic transducers, power output strong, stable

02: Special steel horn, strong and durable

03: linear Guide bearings, precision fine-tuning device perfornace

04: using welding head horizontal adjustable structure, convenient transfer mode

05: a frull range of high-quality imported components, quality assured

Ultrasonic Plastic Welding Machine Manufacturer of parameter

01: Power Supply: 220v/ 50hz or 110v/ 60hz

02: Ultrasonic power: 3.2kw

03: Ultrasonic frequency: 15khz

04: Welding diameter: 220mm

05: Net weight: 380kgs

FRQ

FRQ of Ultrasonic Plastic Welding Machine Manufacturer

01: How KEEPLEADER™ pack the machine
CFM: for exported machine, KEEPLEADER™ adopts European standard, all of machines is packed in plywood case that is fumigation-free material, there is pallet mounted used for truck forklift handling conveniently

02: If have any service on machine’s installation at KEEPLEADER™
CFM: for standard model, KEEPLEADER™ will provide instruction video and user manual on its installation and debugging, for customized design, KEEPLEADER™ can provide oversea service except for the service that standard machines have

03: If the machine need air compressor

CFM: yes, the standard machine is driven pneumatic, if your factory has air supply, just need to connect your air plug with machine, if not, you need to buy a 2p to 5p air compressor

KEEPLEADER™ also can make to the hydraulic driven under your requested

04: How about power supply of machines at KEEPLEADER™

CFM: KEEPLEADER™ has standard power configuration: single phase, 220v, 50hz and make to requested single phase 110v, 60hz, pls advise us KEEPLEADER™ sales representatives when ordering

05: If KEEPLEADER™ machine the die/mould for buyers

CFM: Yes, KEEPLEADER™ has mould workingshop to machine matching molds/clamping

/tooling and any other necessities

06: What information does KEEPLEADER™ need to make a proper quotation?

CMF: welding material and its shape size, expected welding effect, when ordering to KEEPLEADER™, need to provide the drawing and samples to make the mould and test machine

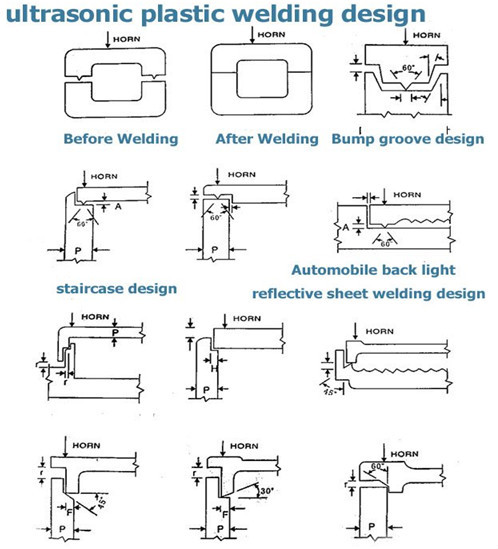

Ultrasonic Plastic Welding Machine Manufacturer must has suitable Melting linw/Energy Director, Above design is popular standard, if you have other proposal or consideration, pls tell us for technical confirmation

Product uses

Ultrasonic Plastic Welding Machine Manufacturer can weld PVC, PP. PS, ABS,Acrylic, PC,PE, Nylon and other Thermoplastic

Contact Us

Pls Contact Ms Helen by E-mail:sales@keepleader.com for Ultrasonic Plastic Welding Machine Manufacturer

Cellphone/Wechat/Whatsapp: +86 13590415784
