Canvas Tent Making HF welding PVC Coated Fabric High Frequency Welder

Canvas Tent Making HF welding PVC Coated Fabric High Frequency Welder

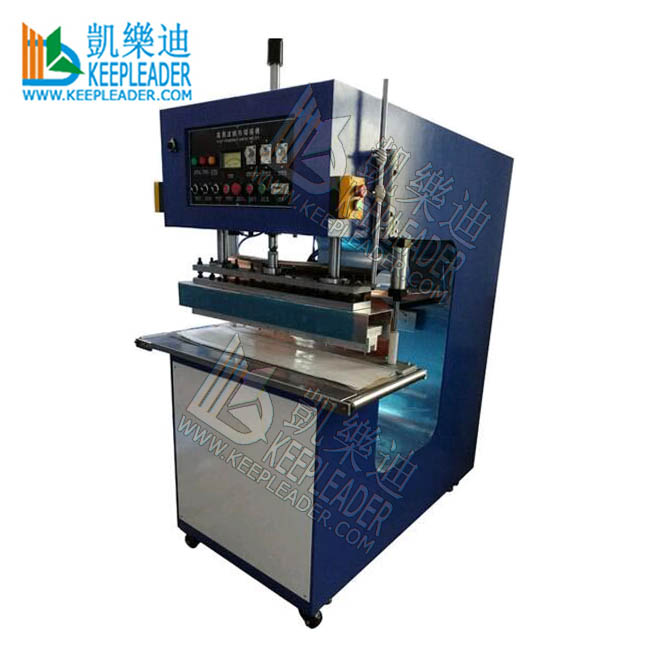

Canvas Tent Making HF welding PVC Coated Fabric High Frequency Welder is fabricated specifically for manufacturing of small, medium, and large format tensile structures, membranes, tarpaulin, tents, truck covers, etc, HF welder allows to work with PVC, PU, TPU materials and can be equipped with special impulse electrode for welding non-HF weldable fabrics made of PE,PP and other non-bipolar materials, HF welder can also be equipped with soft multi-layer welding electrode or curved electrodes for sealing round window profiles made of clear PVC or any other shaped required precision welding

Product description


Canvas Tent Making HF welding PVC Coated Fabric High Frequency Welder

Mainly application

Canvas Tent Making HF welding PVC Coated Fabric High Frequency Welder Used for welding Liquid tanks, canvas, car tents, tarpaulin, air structure, sun shades,awning,truck cover,Billboard inflatable dome, awning, truck covers, car tent, sunshade, inflatable tents, tailgate, inflatable dome tent, awning, tarpaulins, covers, pool liner, sunshade and many other kinds of plastic products

Character

High Q value oscillation tube

the welding length is optional, maximum length:2000*25mm for 25kw

The machine is G shape, have longer throat to hold the material

High sensitive anti-sparkle device NL5557 to avoid damaging the mould.

High quality imported apparatus

European-model high frequency vibration box, more reliable and stable in output

Laser position device for precision counterpoint

Have boosting roller at two side for easy feeding materail

Mounted five caster with four brakes

Automatic thermostat to keep the temperature at best performance in welding

High precision high frequency knob for visible control

Low voltage control panel for safty purpose

Anodized mould and tooling for longer life-span

Top amounted cylinder for vertical pressing, which is more uniform pressure

Foot pedal control and button control is optional

Over current protection circuit to avoid burning the oscillation tube

Power ranges 4kw up to 25kw for various welding length

Technique specifications

Model

KLR-8KW-SN

Power

8000W

Power supply

220V/380V   50/60HZ

Frequency

27.12MHZ

Input power

15KVA

Rectifier

SILICON DIODE

Oscillation tube

7T69RB

Max pressure

500kg

 Gap of electrodes

120MM

Moving distance of active horn

100MM

Size of upper electrode

1000*25MM

Size of down electrode

1200*300MM

Welding time

0~10S Adjustable

Net weight

400KG

Overall dimension

Customized

MFR: KEEPLEADER™ have modified and designed Canvas Tent Making HF welding PVC Coated Fabric High Frequency Welder for our customers’ unique and special requirements, please contact KEEPLEADER™ for updated details

Standard equipment:

Name

Origin

Brand

Air driven components

Taiwan

Airtac

AC contactor

Korean

LG

Relay

Japan

Omron

Electron Tube

Japan

Toshiba

Time controller

Taiwan

CKC

Detailed Images

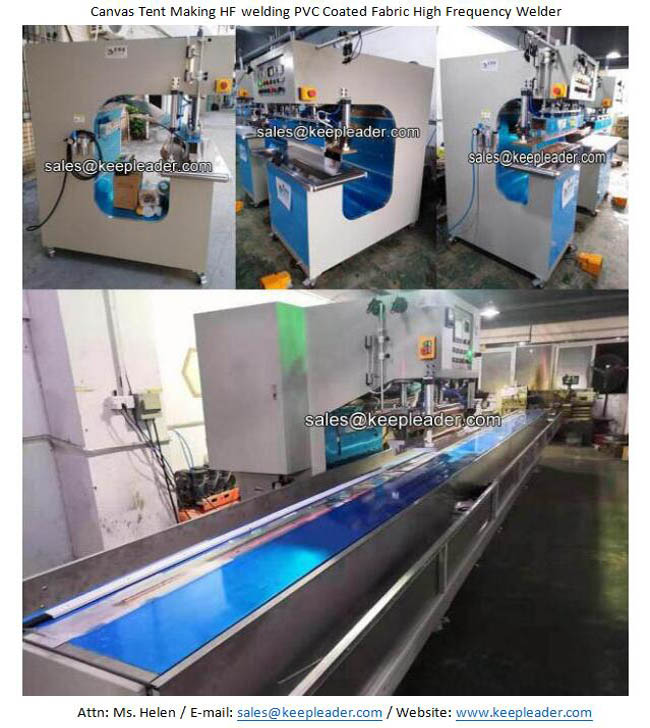

Canvas Tent Making HF welding PVC Coated Fabric High Frequency Welder

Canvas Tent Making HF welding PVC Coated Fabric High Frequency Welder constructs specific deep and wide material trough behind the electrode for PVC fabric storage and handling, HF welder has optional smooth glide wheels for easy movement in-around welded fabric, or relocation to desired place in manufacturing hall, truck cover, billboards, signs, sun shading awning, pool liner and liquid/gas storage tank/container,HF welder can also built in specific length bench combined with moving head for continuous seam sealing in large scale geometries production of flexible products

Detailed Images

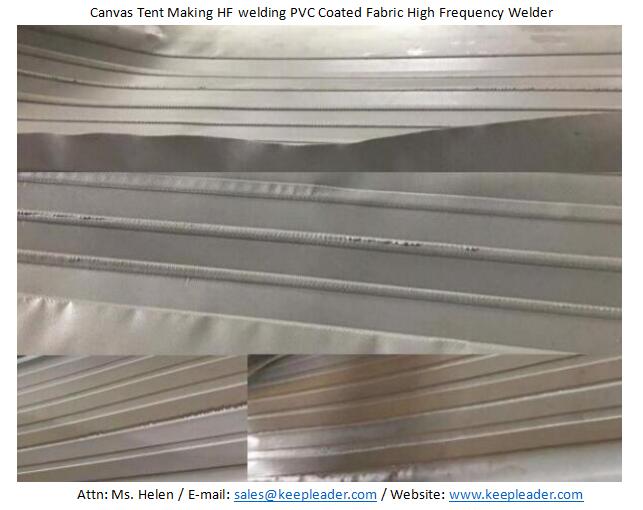

Canvas Tent Making HF welding PVC Coated Fabric High Frequency Welder

Canvas Tent Making HF welding PVC Coated Fabric High Frequency Welder has HF power output 5kw up to 25kw for seam sealing of versatile size, shape and material, its maximum welding length can be 2000mm in a circle basing on customized width, both shapes in straight, curved, round and surface patterns in flat,dotted,oval diamond are available, welding time, melting depth, dwell time and temperature all is adjustable with material’s versatility in property and geometries

Contact Us


Canvas Tent Making HF welding PVC Coated Fabric High Frequency Welder goes to world in our presents of innovation, development, construction and contracted-service over decades, keepleader accepts deceleration in quantities but won’t accept compromise in quality and service, for our cooperation from initiation to end-user, we never unnoticeable any detailed thoughts from our cooperators, this is not only a concept , is a subconscious among the whole procedures, hope herein you can get one-stop service
