Location : Home >> Products >> Ultrasonic Cleaning Machine >> Household Ultrasonic Cleaner

Car Wheel Ultrasonic Cleaning Machine for Car Wheel_Truck Tire_Car Wheel Hub_Rim Ultrasonic Cleaning of Lifting_Rotary Washing

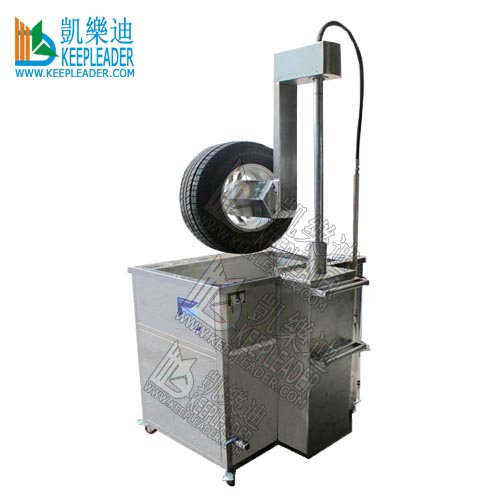

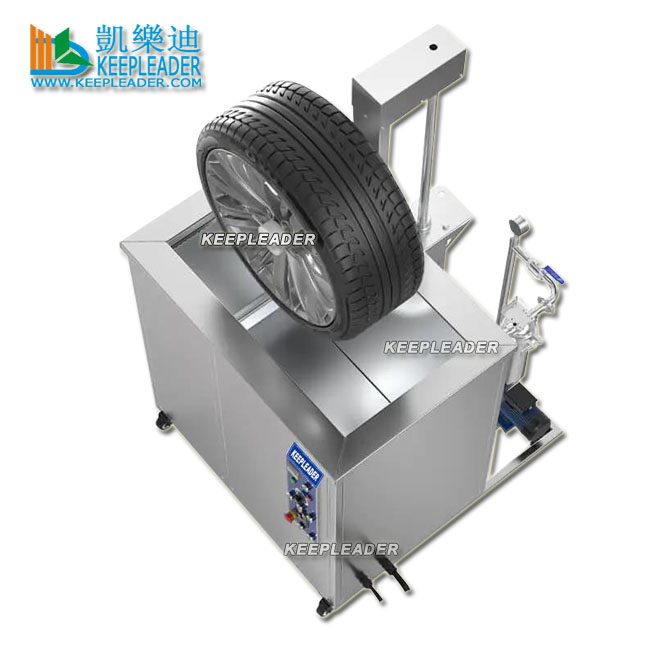

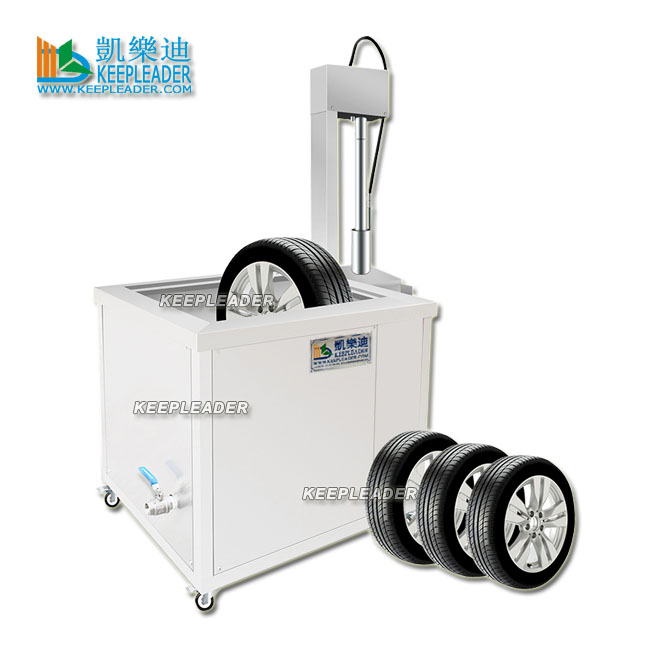

Car Wheel Ultrasonic Cleaning Machine

Car Wheel Ultrasonic Cleaning Machine has auto lifting and rotary device to comply with ultrasonic vibration scrubbing for best cleaning process in Car wheel_Truck Tire_Car wheel Hub_Car wheel Rim_Auto Parts Cleaning and restoration

Product description

Parameter
Model	KLE-1090W
Inner size of cleaning tank	900600900
Ultrasonic power	28khz/40khz
Ultrasonic transducer	90pcs
Ultrasonic power	4500w
Heating power	9kw
Timer	1 to 30 minutes
Heating scale	0 to 100 degree
Power supply	AC 220V / 440V, 3, 25AMP
Tank Material	SUS304/SUS316L
Housing’s material	Stainless steel
Features
Automatic pneumatic lifting for auto loading and unloading in convenient operation and motor rotation function when ultrasonic cleaning to improve the cleaning effect With pneumatic clamping, fixing device can adapt different size of tire Four caster, two of them has brake for convenient moving Digital timer to control the heating temperature, easy and visible in setting and working Smart ultrasonic generator, don’t need any debugging, can automatic matching and sweeping PLC panel control All in one machine, Customized dimension and configurations are acceptable

MFR: KEEPLEADER™ have modified and designed Car Wheel Ultrasonic Cleaning Machine for our customers’ unique and special requirements, please contact KEEPLEADER™ for updated details

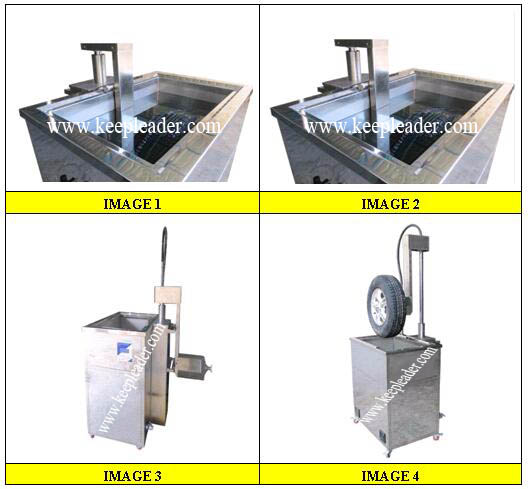

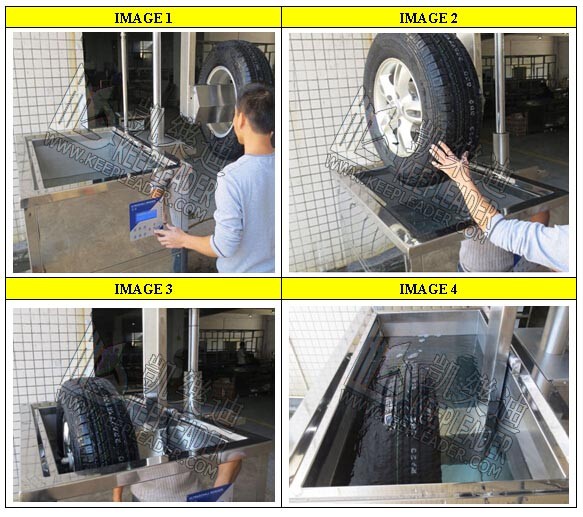

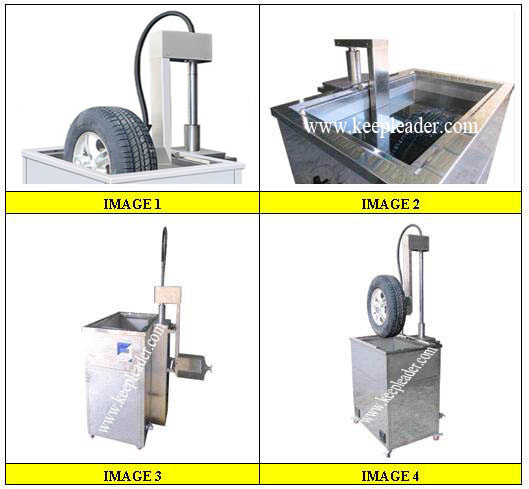

Detailed images

Car Wheel Ultrasonic Cleaning Machine integrates with 1st: auto elevator of hydraulic activation 2nd: Servo rotary agitation 3rd: swing shift loading and unloading operation 4th: PLC touch screen of controlling system 5th: Tailored dimension

Technology

How ultrasonic work?

Ultrasonic cleaning uses sound waves that are introduced into the cleaning liquid by means of “transducers” mounted to the cleaning tank, the sound waves travel through the tank and create waves of compression and expansion in the liquid, in the compression wave, the molecules of the cleaning liquid are compressed together tightly, conversely, in the expansion wave, the molecular are pulled apart rapidly, the expansion is so dramatic that the molecules are ripped apart creating microscopic bubbles, even though the bubbles are too tiny to be seen by the naked eyes they contain a partial vacuum during the spit second they exist, as the pressure around the bubbles becomes great, the fluid around the bubble rushes in collapsing the bubble very rapidly

How ultrasonic work in blind cleaning?

Professional ultrasonic cleaning is recommended for several products, in an ultrasonic cleaning machine, the blinds and shades are placed in a chamber containing a suitable ultrasound conduction fluid, an ultrasound generating transducer is built into the chamber, or may be lowered in the fluid, it is electronically activated to produce ultrasonic waves in the fluid, the main mechanism of cleaning action is by energy released from the creation and collapse of microscopic cavitations bubbles, which break up and lift off dirty and contaminants from the blinds and shades, the higher the frequency, the smaller the nodes between the cavitations points which allows for more precise cleaning

Product uses

Car Wheel Ultrasonic Cleaning Machine is applied for car wheel, rim, hub cleaning that can achieve the cycle washing procedures by only one person, the automatic lifting device is hydraulic driven that can swing arm to load and unloading manually in convenient operation, the fixing head can take rotary agitation in peeling off loosen particles to enhancing cleaning efficiency and the whole cleaning procedures can complete intellectual control via PLC touch screen of operation system

Car Wheel Ultrasonic Cleaning Machine is our standing-along ultrasonic cleaner used for car wheel cleaning, that adopts professional aqueous immersion washing with ultrasonic agitation, the mechanism integrates hydraulic driven automatic elevator, in addition, keepleader, we can designate other ancillary function to enhance the working efficiency, likely spray wand, Pump filtering circulation and water-level sensor protection switch, alarm system and dual auto lifting system or multiple tanks, in case of you cannot find your concerns that is utmost important for your individual washing, kindly consult them with our engineer to obtain revised/modified solution, trust that our experienced tech team can gratify you with our affordable and reliable artworks
